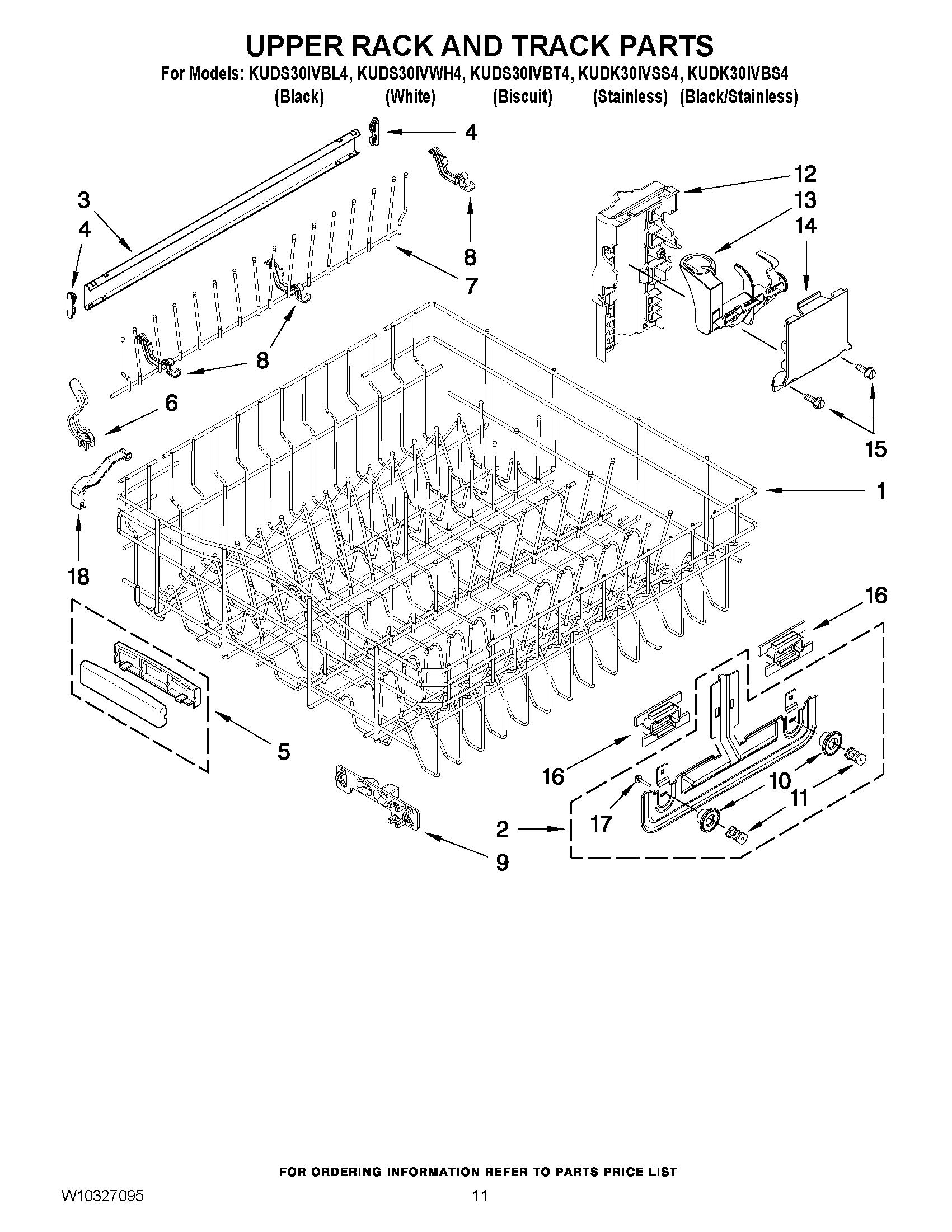

KUDK30IVSS4 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10728863 Whirlpool Upper Dishrack Assembly
2	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
3	WP3385089 Whirlpool Track
4	WP8565925 Whirlpool Slide Rail Stop
5	Handle, Dishrack
6	WPW10077844 Whirlpool Dishwasher Clip
7	W10727426 Whirlpool Dishwasher Rack Tine
8	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
9	WP8539102 Whirlpool Dishwasher Positioner
10	WP3385088 Whirlpool Dishwasher Upper Wheel
11	WP8268703 Whirlpool Dishwasher Rack Axle
12	W10728563 Whirlpool Dishwasher Housing
13	Actuator, Adjuster (Right Hand)
13	Actuator, Adjuster (Left Hand)
14	W10728561 Whirlpool Dishwasher Cover
15	WP9741232 Whirlpool Dishwasher Screw
16	W10728566 Whirlpool Dishwasher Positioner
17	WP8281156 Whirlpool Dishwasher Screw
18	WPW10267076 Whirlpool Guard Clip
