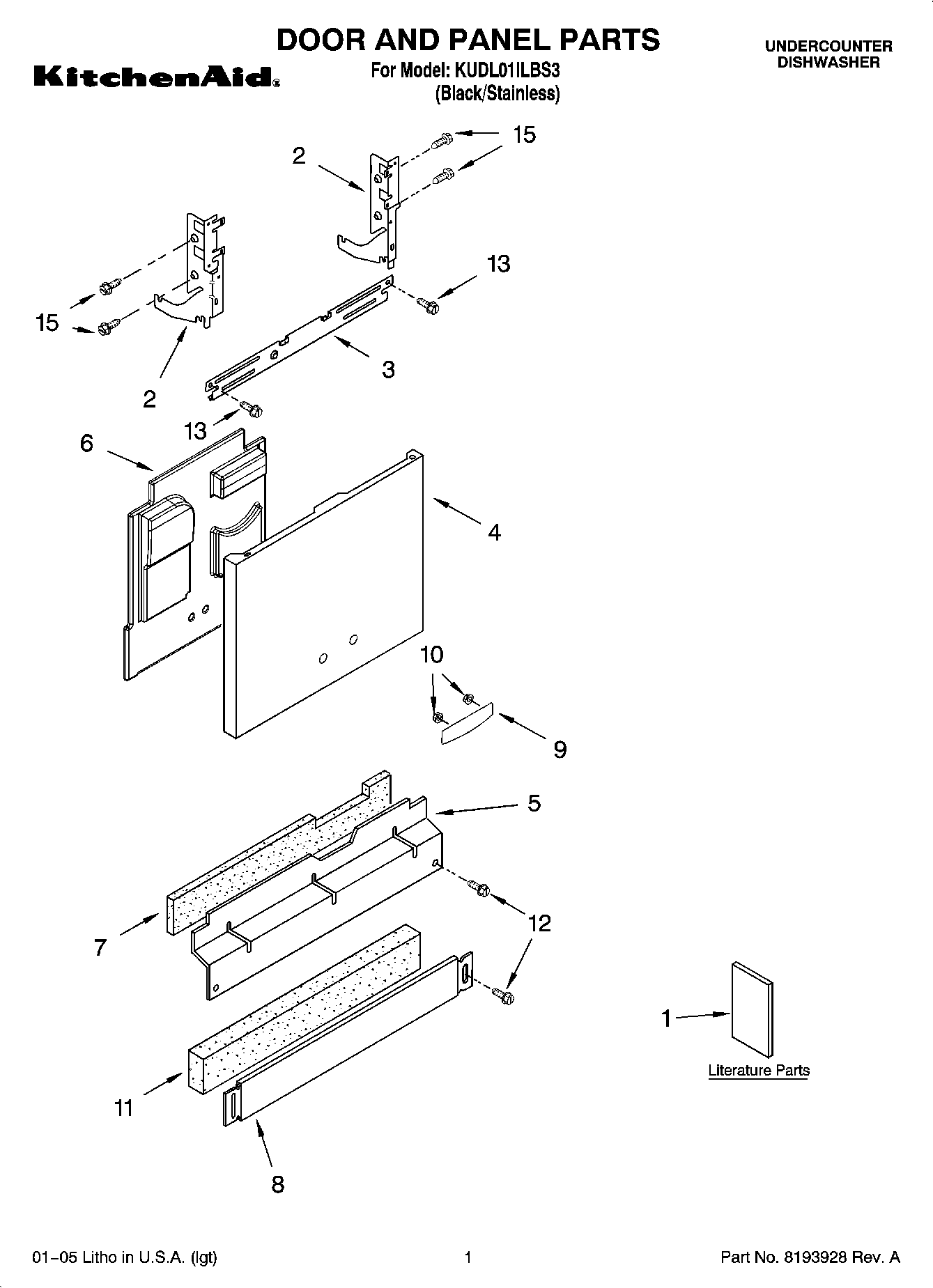

KUDL01ILBS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Guide, Energy)
1	Literature Parts (English/French)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Video, Use & Care (DVD))
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10301577 Whirlpool Outer Door Panel
6	Brace, Foam
8	W10909064 Whirlpool Dishwasher Black Access Panel
9	Nameplate (Black)
10	WP2004333 Whirlpool Refrigerator Nut
11	SHIELD
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
