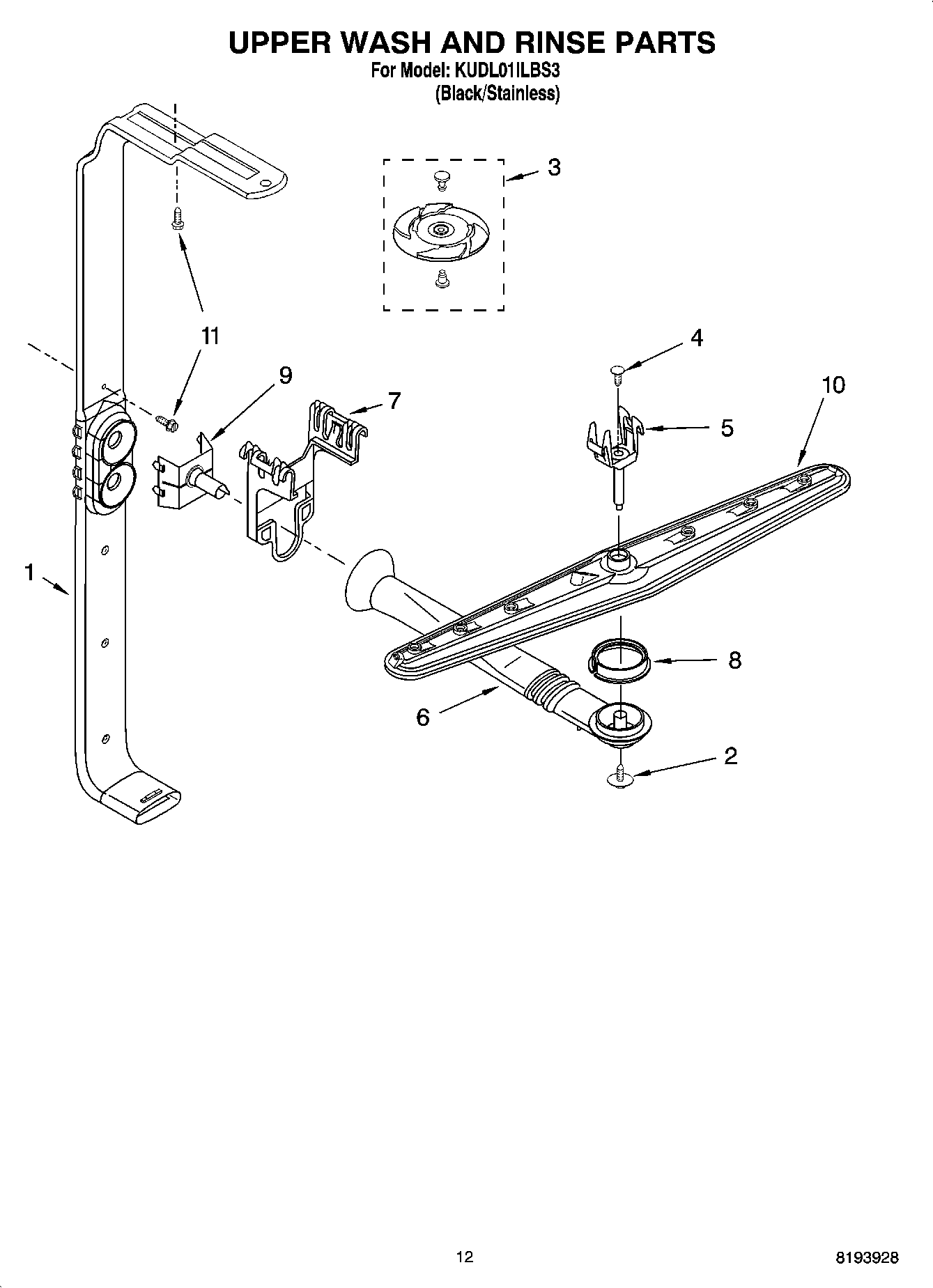

KUDL01ILBS3 10 – UPPER WASH AND RINSE PARTS

KUDL01ILBS3 10 – UPPER WASH AND RINSE PARTS

Written by

in

KUDL01ILBS3 10 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1Feed Tube Assembly (Also Includes Item 3)
2WPW10349488 Whirlpool Screw
38193768 Whirlpool Dishwasher Spinner
4WP3400920 Whirlpool Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6Manifold
7WP8268349 Whirlpool Dishwasher Spray Arm Tube Hanger
8WP8268433 Whirlpool Seal Assembly
9Nozzle, Feed
10WP8535086 Whirlpool Dishwasher Spray Arm
11WP489443 Whirlpool Refrigerator Screw
