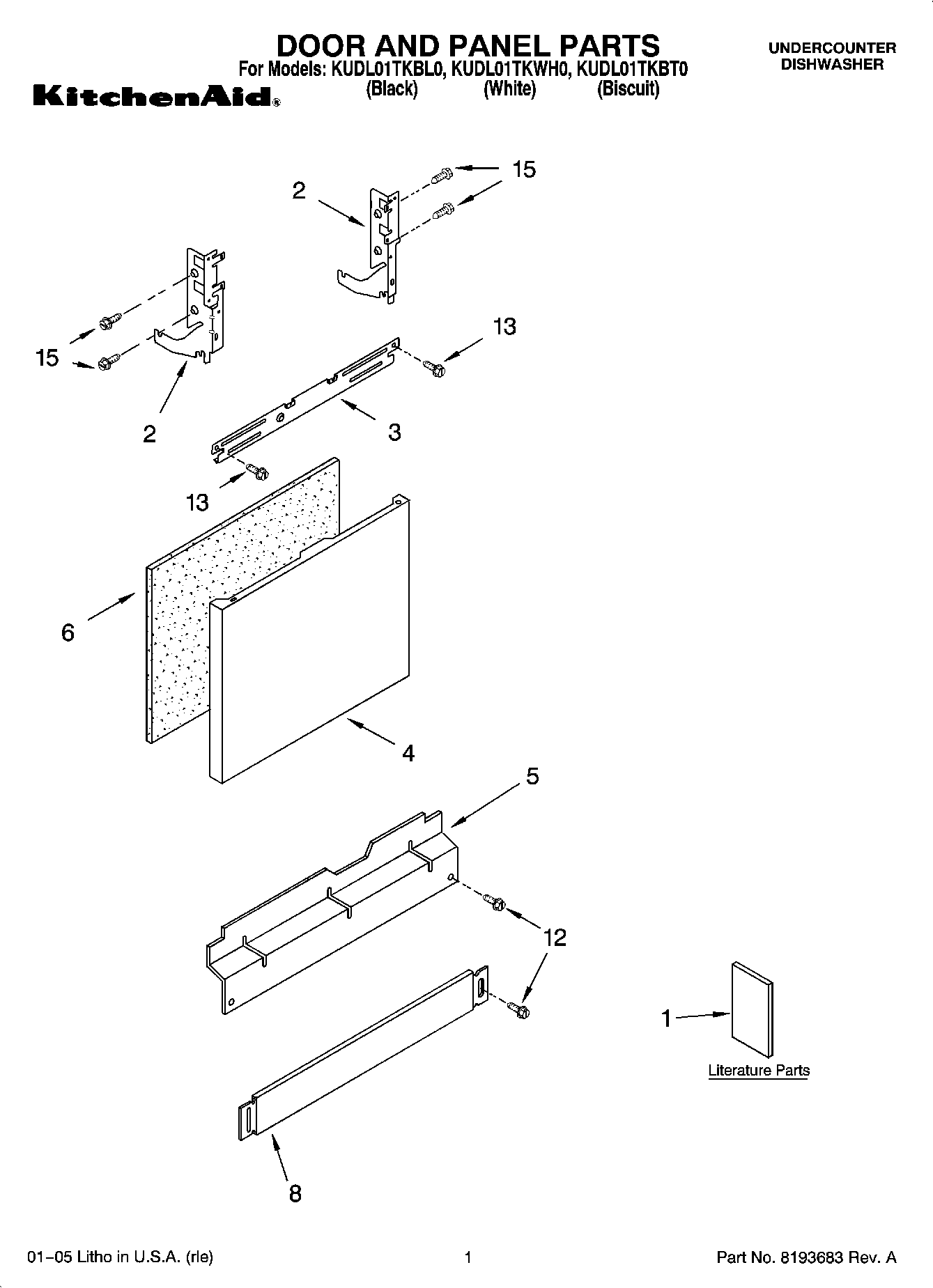

KUDL01TKBL0 01 – DOOR AND PANEL PARTS
Written by
in
KUDL01TKBL0 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Literature Parts (Instructions, Installation)
1
Literature Parts (Energy Guide)
1
Literature Parts (Guide, Use & Care Tech Sheet)
1
Literature Parts (French)
1
Literature Parts (English)
2
W11612302 Whirlpool Dishwasher Door Hinge
2
W11612303 Whirlpool Door Hinge
3
Stiffener, Door
4
Panel Front (Black)
4
Panel Front (Biscuit)
4
Panel Front (White)
4
Panel Front (Stainless)
5
W10909064 Whirlpool Dishwasher Black Access Panel
5
W10871198 Whirlpool Dishwasher Panel
5
W10909066 Whirlpool Dishwasher Panel
6
WPW10073520 Whirlpool Dishwasher Insulation Pad
8
Toe Panel (Biscuit)
8
WPW10586591 Whirlpool Dishwasher Toe Panel
12
WPW10503550 Whirlpool Dishwasher Retainer
12
WPW10503549 Whirlpool Dishwasher Retainer Clip
13
Screw (White)
13
Screw (Biscuit)
13
WP302868 Whirlpool Screw
15
WP3400071 Whirlpool Screw
←
