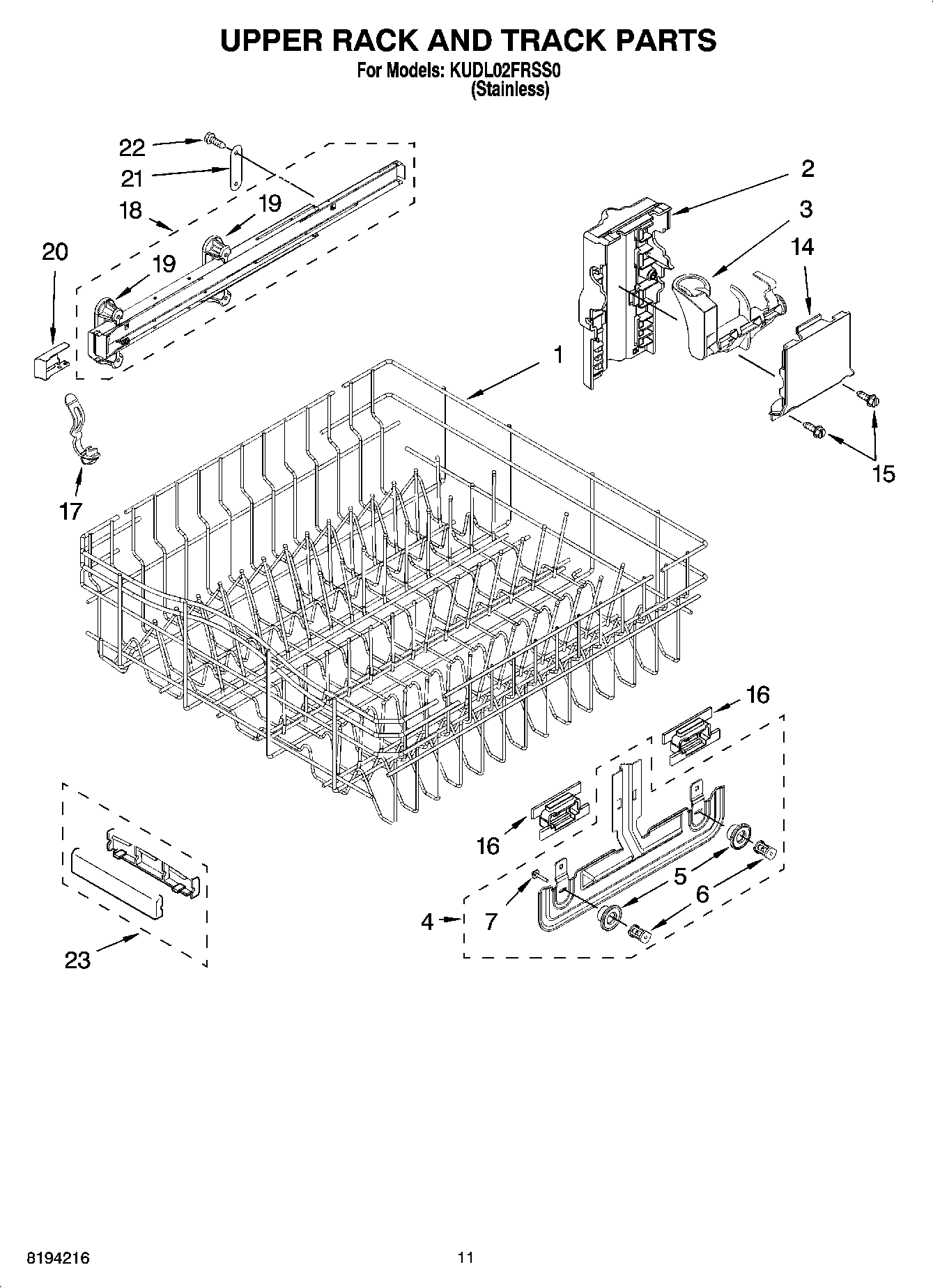

KUDL02FRSS0 09 – UPPER RACK AND TRACK PARTS

KUDL02FRSS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDL02FRSS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2Housing, Adjuster
3Actuator, Adjuster (Left Hand)
3Actuator, Adjuster (Right Hand)
4W10728567 Whirlpool Dishwasher Adjuster
5WP8270138 Whirlpool Dishwasher Upper Wheel
6WP8268703 Whirlpool Dishwasher Rack Axle
7WP8281156 Whirlpool Dishwasher Screw
14Cover, Adjuster
15WP9741232 Whirlpool Dishwasher Screw
16Positioner, Arm
17WP8539101 Whirlpool Dishwasher Clip
18WPW10247512 Whirlpool Upper Slide Rail Left Side
18WPW10247511 Whirlpool Dishwasher Track
19Mount, Track (Also Order Item 21)
20WP8573953 Whirlpool Dishwasher Stop Assembly
20WP8573954 Whirlpool Dishwasher Stop Assembly
21WP9743002 Whirlpool Dishwasher Gasket
22WPW10348407 Whirlpool Dishwasher Screw
23Handle, Dishrack
