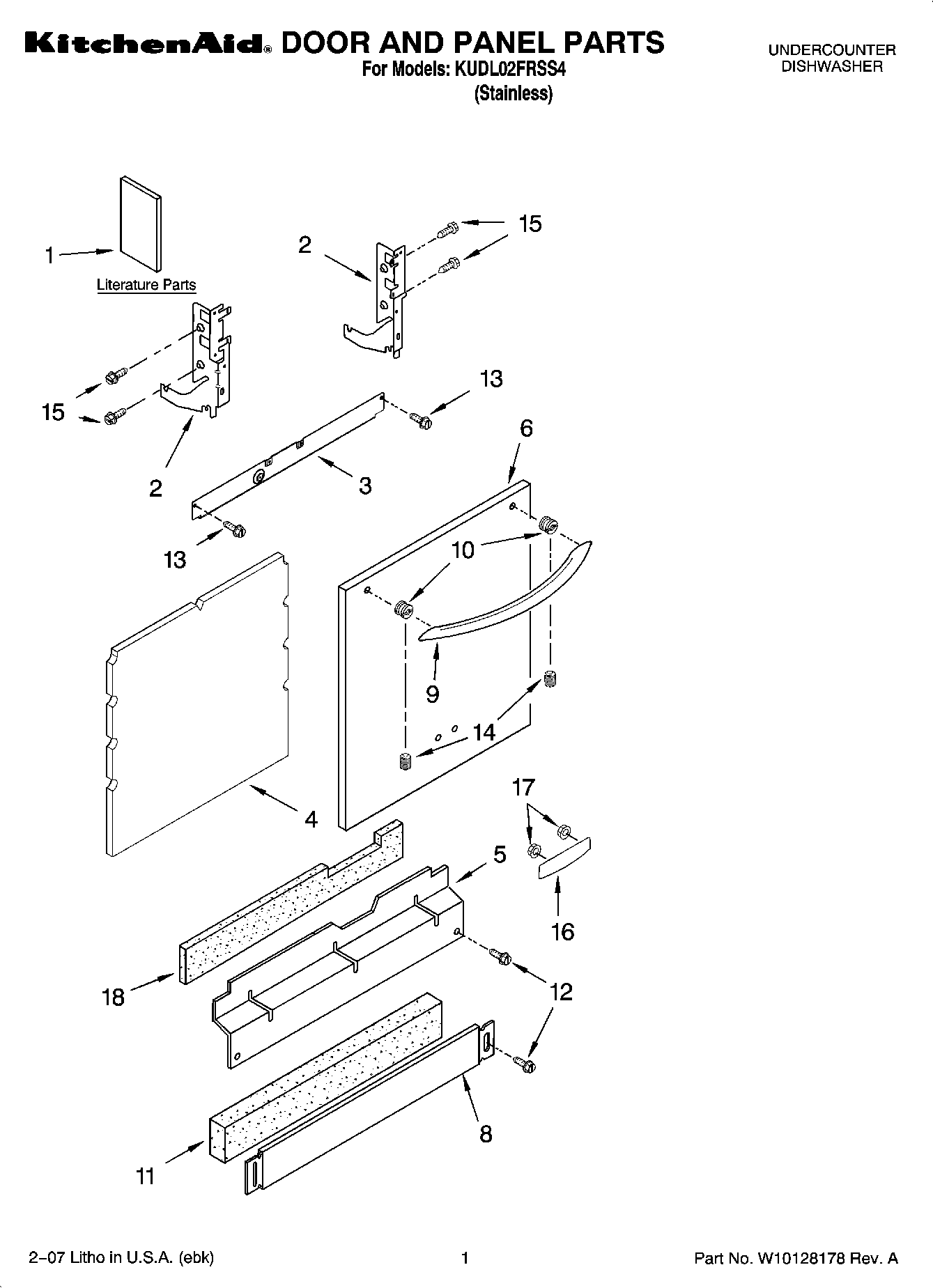

KUDL02FRSS4 01 – DOOR AND PANEL PARTS

KUDL02FRSS4 01 – DOOR AND PANEL PARTS

Written by

in

KUDL02FRSS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Instructions, Installation
1Energy Guide
1Guide, Use & Care
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5PANEL
6Panel, Full Front (Includes Items 16 & 17) (Stainless)
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10083931A Whirlpool Dishwasher Stainless Steel Handle
10WP8564951 Whirlpool Dishwasher Stud
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP8534008 Whirlpool Screw
15WP3400071 Whirlpool Screw
16Nameplate (Black)
17WP2004333 Whirlpool Refrigerator Nut
