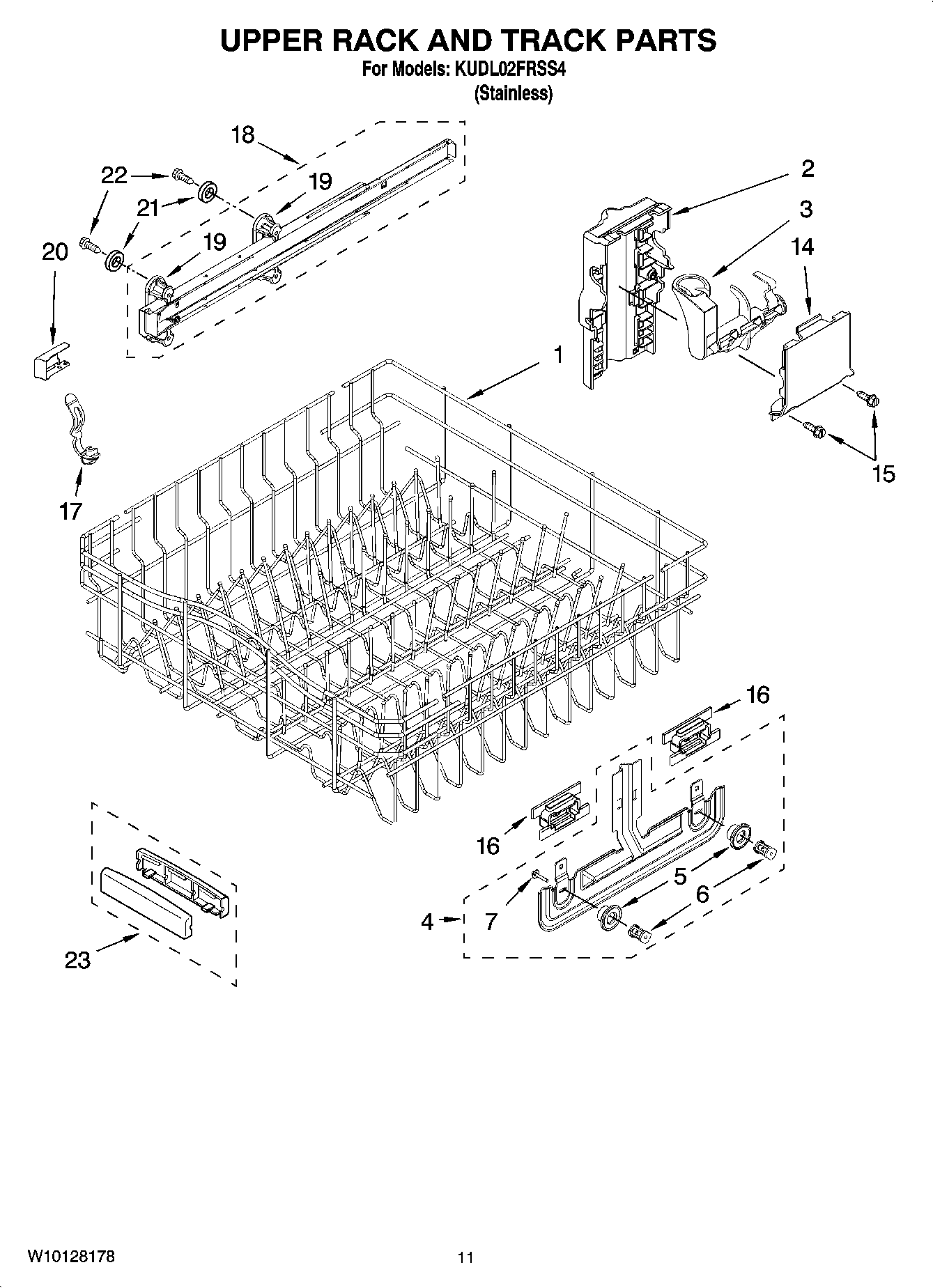

KUDL02FRSS4 09 – UPPER RACK AND TRACK PARTS
Written by
in
KUDL02FRSS4 09 – UPPER RACK AND TRACK PARTS
Products
Position
Product
1
WPW10350382 Whirlpool Dishwasher Dishrack
2
Housing, Adjuster
3
Actuator, Adjuster (Left Hand)
3
Actuator, Adjuster (Right Hand)
4
W10728567 Whirlpool Dishwasher Adjuster
5
WP8270138 Whirlpool Dishwasher Upper Wheel
6
WP8268703 Whirlpool Dishwasher Rack Axle
7
WP8281156 Whirlpool Dishwasher Screw
14
Cover, Adjuster
15
WP9741232 Whirlpool Dishwasher Screw
16
Positioner, Arm
17
WP8539101 Whirlpool Dishwasher Clip
18
WPW10247512 Whirlpool Upper Slide Rail Left Side
18
WPW10247511 Whirlpool Dishwasher Track
19
Mount, Track (Also Order Item 21)
20
WP8573953 Whirlpool Dishwasher Stop Assembly
20
WP8573954 Whirlpool Dishwasher Stop Assembly
21
WP9743002 Whirlpool Dishwasher Gasket
22
WPW10348407 Whirlpool Dishwasher Screw
23
Handle, Dishrack
←
