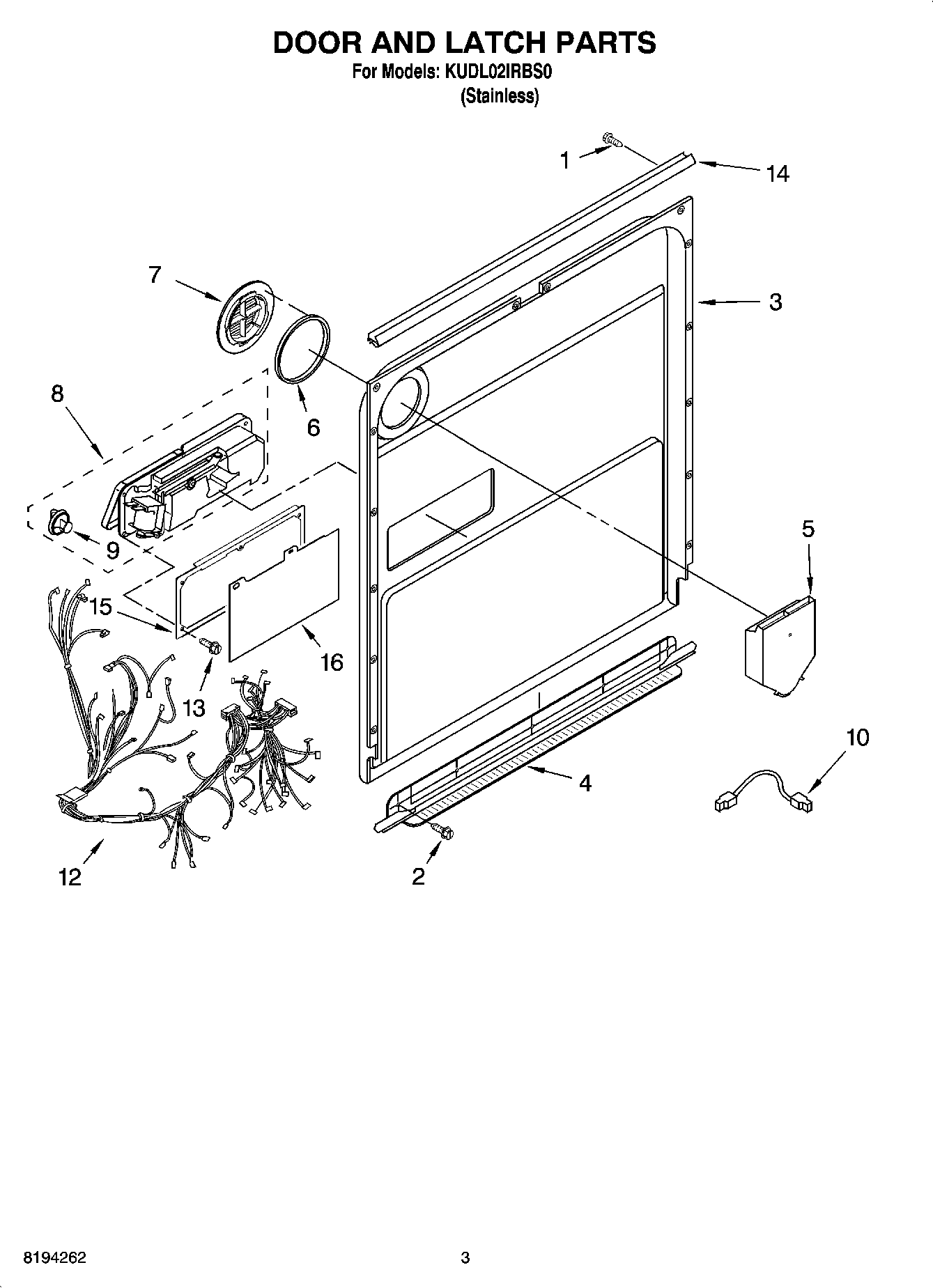

KUDL02IRBS0 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
2	W11631670 Whirlpool Screw
3	Inner Door Mastic Assembly (Also Order Item 6)
4	WP8268937 Whirlpool Dishwasher Air Inlet
5	WPW10164259 Whirlpool Dishwasher Vent Assembly
6	WP8269259 Whirlpool Air Vent Gasket
7	WP8545536 Whirlpool Dishwasher Deflector
8	WPW10224430 Whirlpool Dishwasher Detergent Dispenser
9	WP8564929 Whirlpool Rinse Aid Cap
10	Harness, Vent Motor
12	WPW10413097 Whirlpool Dishwasher Wire Harness
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8535660 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	WP8531865 Whirlpool Dishwasher Door Shield
