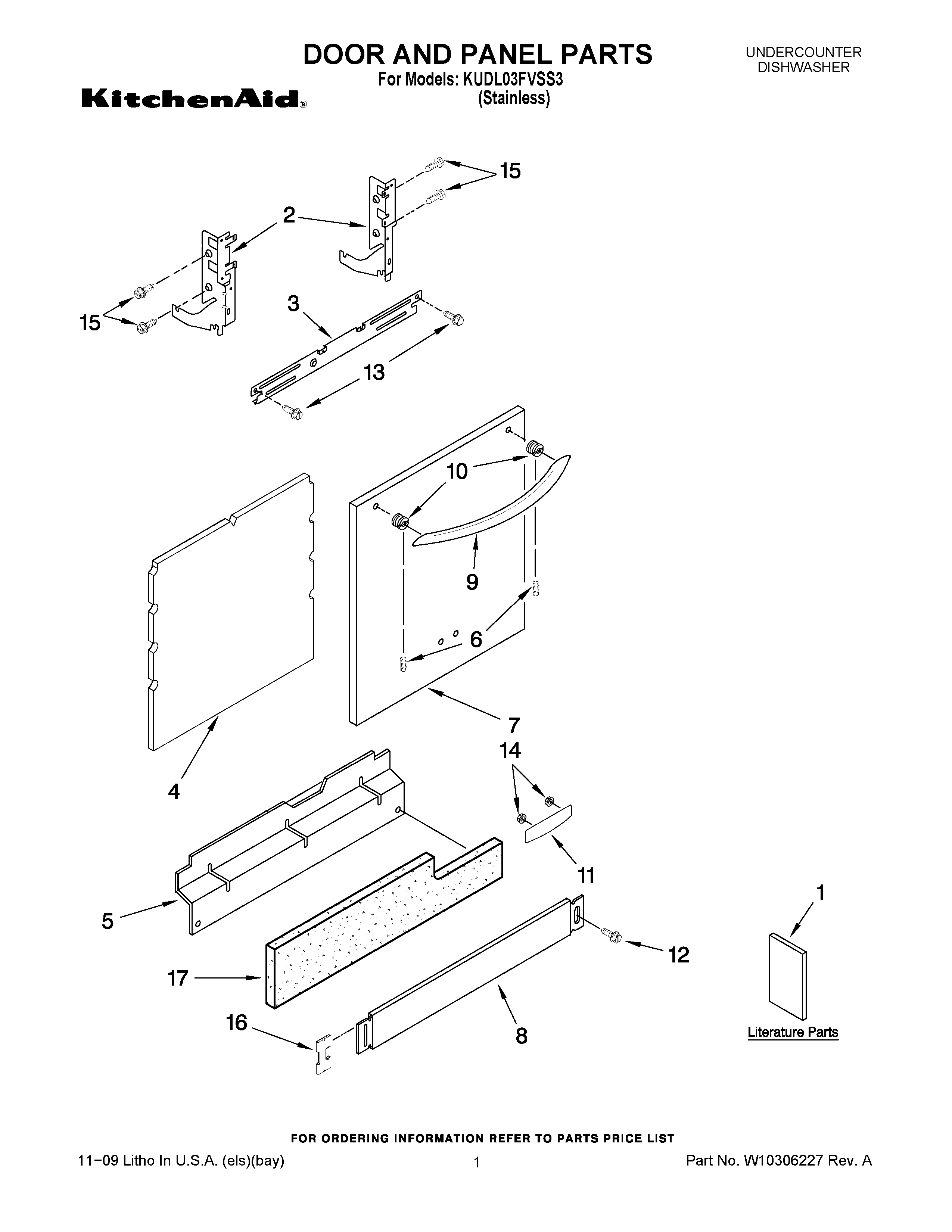

KUDL03FVSS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE ENGLISH & FRENCH
1	GUIDE, USE & CARE (SPANISH)
1	Tech Sheet
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	WP8534008 Whirlpool Screw
7	Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
9	W10195738A Whirlpool Stainless Steel Door Handle
10	WP8564951 Whirlpool Dishwasher Stud
11	W10021850 Whirlpool Dishwasher Nameplate
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	WP2004333 Whirlpool Refrigerator Nut
15	WP3400071 Whirlpool Screw
16	WP8269016 Whirlpool Clip Assembly
17	SHIELD
