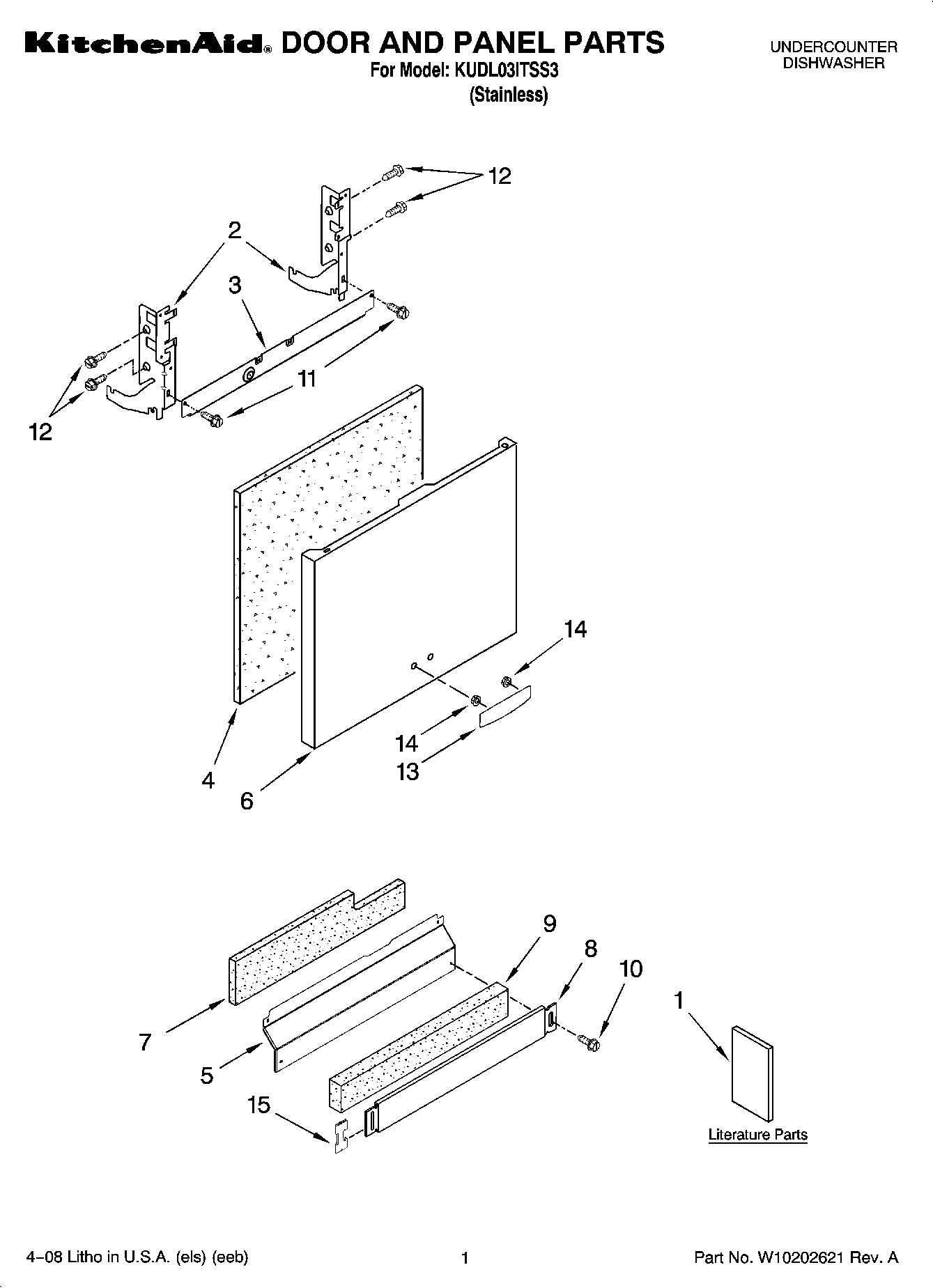

KUDL03ITSS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care (English/French)
1Guide, Use & Care Spanish
1Tech Sheet
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5PANEL
6W10349340 Whirlpool Dishwasher Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9SHIELD
10WP302868 Whirlpool Screw
11WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
13W10021850 Whirlpool Dishwasher Nameplate
14WP2004333 Whirlpool Refrigerator Nut
15WP8269016 Whirlpool Clip Assembly
