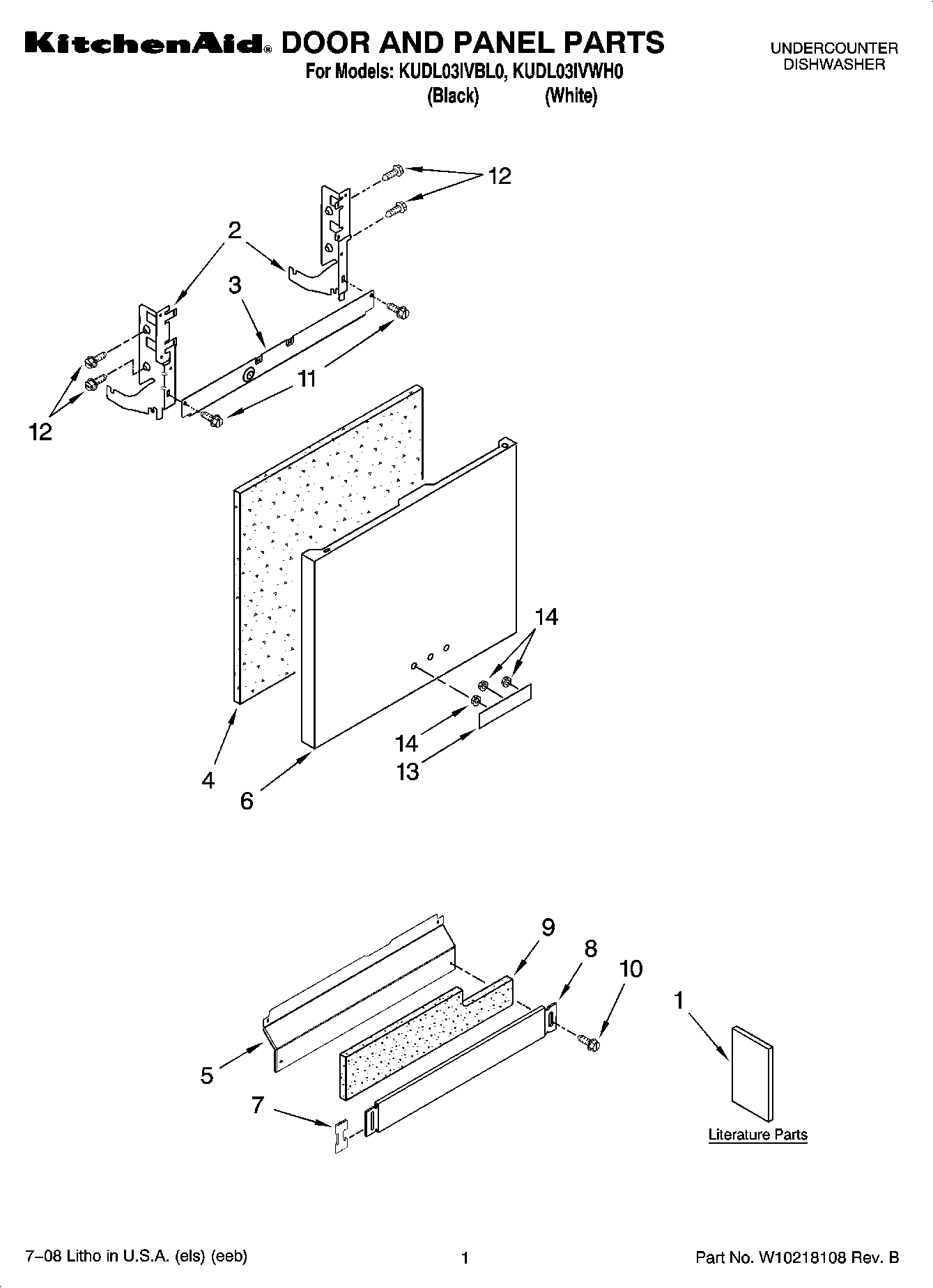

KUDL03IVBL0 01 – DOOR AND PANEL PARTS

KUDL03IVBL0 01 – DOOR AND PANEL PARTS

Written by

in

KUDL03IVBL0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Tech Sheet
1Guide, Use & Care Spanish
1Guide, Use & Care (English/French)
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
7WP8269016 Whirlpool Clip Assembly
8W10799406 Whirlpool Dishwasher Toe Panel
9SHIELD
10WP302868 Whirlpool Screw
10WPW10503549 Whirlpool Dishwasher Retainer Clip
11WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
13W10021870 Whirlpool Nameplate
13W10021860 Whirlpool Dishwasher Nameplate
14WP2004333 Whirlpool Refrigerator Nut
