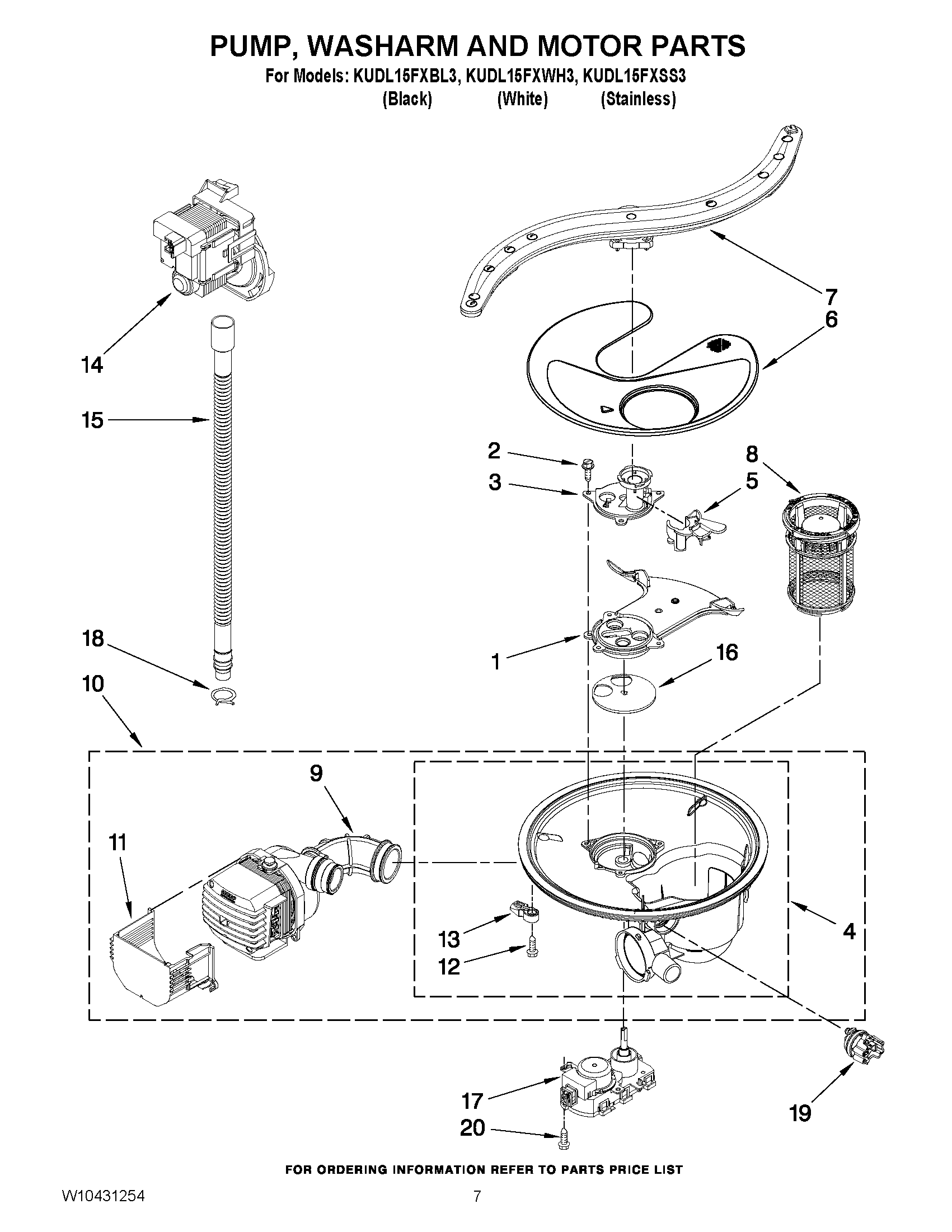

KUDL15FXBL3 06 – PUMP, WASHARM AND MOTOR PARTSadmin2025-04-26T12:05:15+00:00KUDL15FXBL3 06 – PUMP, WASHARM AND MOTOR PARTS ProductsPositionProduct1Cover, Sieve2SCREW3COVER, OUTLET4W10168822 Whirlpool Dishwasher Sump Assembly5Retainer, Feed Tube6WP8579253 Whirlpool Screen Filter7ARM-SPRAY8W10872845 Whirlpool Dishwasher Filter Cup Trap9Hose, Inlet (Includes 3 Hose Clamps)10WPW10418332 Whirlpool Dishwasher Pump and Motor118579272 Whirlpool Shield12WPW10348407 Whirlpool Dishwasher Screw13WPW10372113 Whirlpool Dishwasher Sump Tab14WPW10348269 Whirlpool Washer Drain Pump158269144A Whirlpool Dishwasher Drain Hose16Disc-Valve Diverter17MOTOR-DIVERTER DW18WP8269146 Whirlpool Dishwasher Clamp19WPW10705575 Whirlpool Dishwasher Sensor20WP9741232 Whirlpool Dishwasher Screw
