KUDL15FXBL5 03 – INNER DOOR PARTS

KUDL15FXBL5 03 – INNER DOOR PARTS

Written by

in

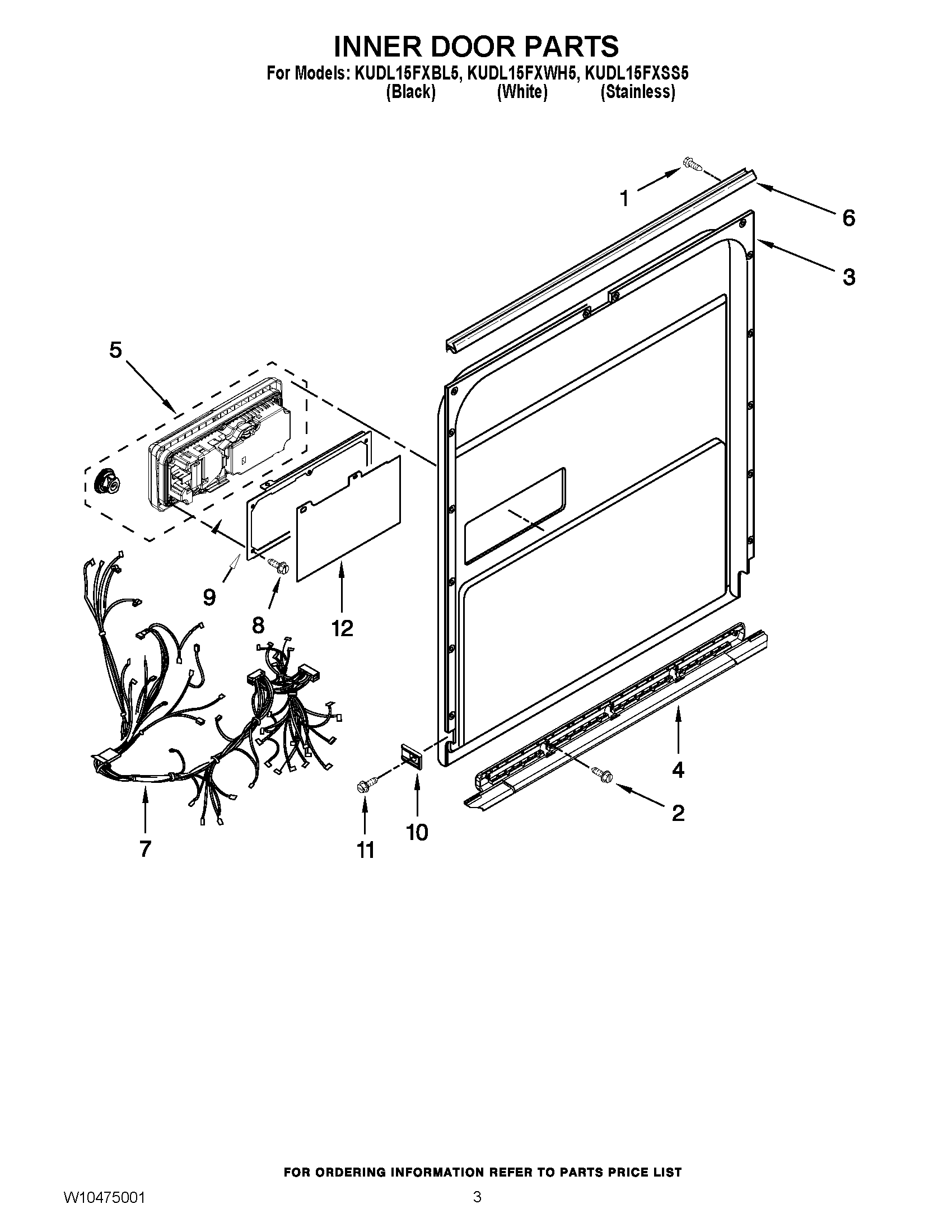

KUDL15FXBL5 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5DISPENSER (DISHWASHER)
6WPW10195007 Whirlpool Dishwasher Seal
7WIRING HARNESS
8WPW10177098 Whirlpool Dishwasher Screw
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10W10195837 Whirlpool Dishwasher Barrier
11WP3400071 Whirlpool Screw
12W10385977 Whirlpool Dishwasher Cover Assembly
