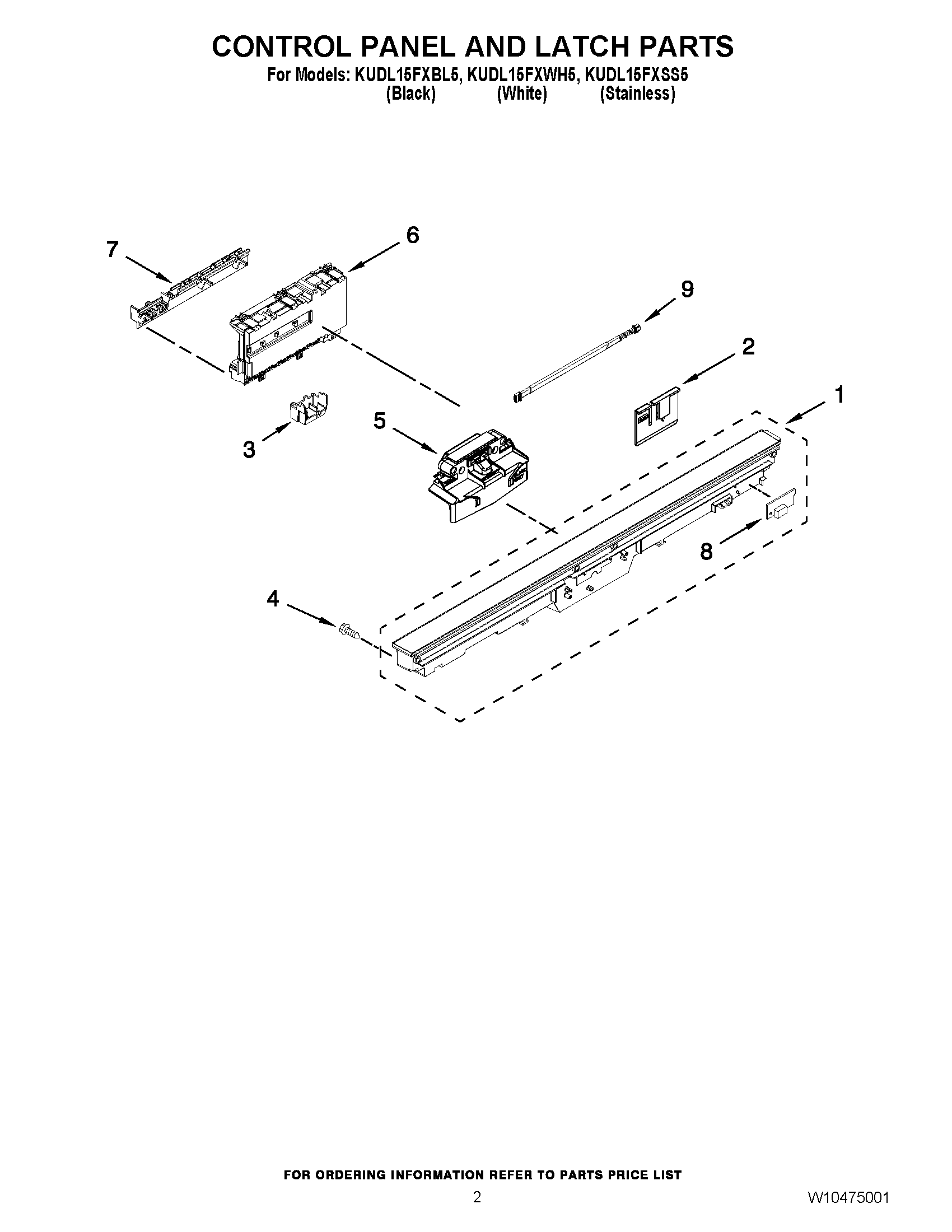

KUDL15FXSS5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (BLACK)
1WPW10481149 Whirlpool Dishwasher Control Panel
1WPW10481148 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W10473198 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195836 Whirlpool Dishwasher Indicator Light
9WPW10195666 Whirlpool Dishwasher Wire Assembly
