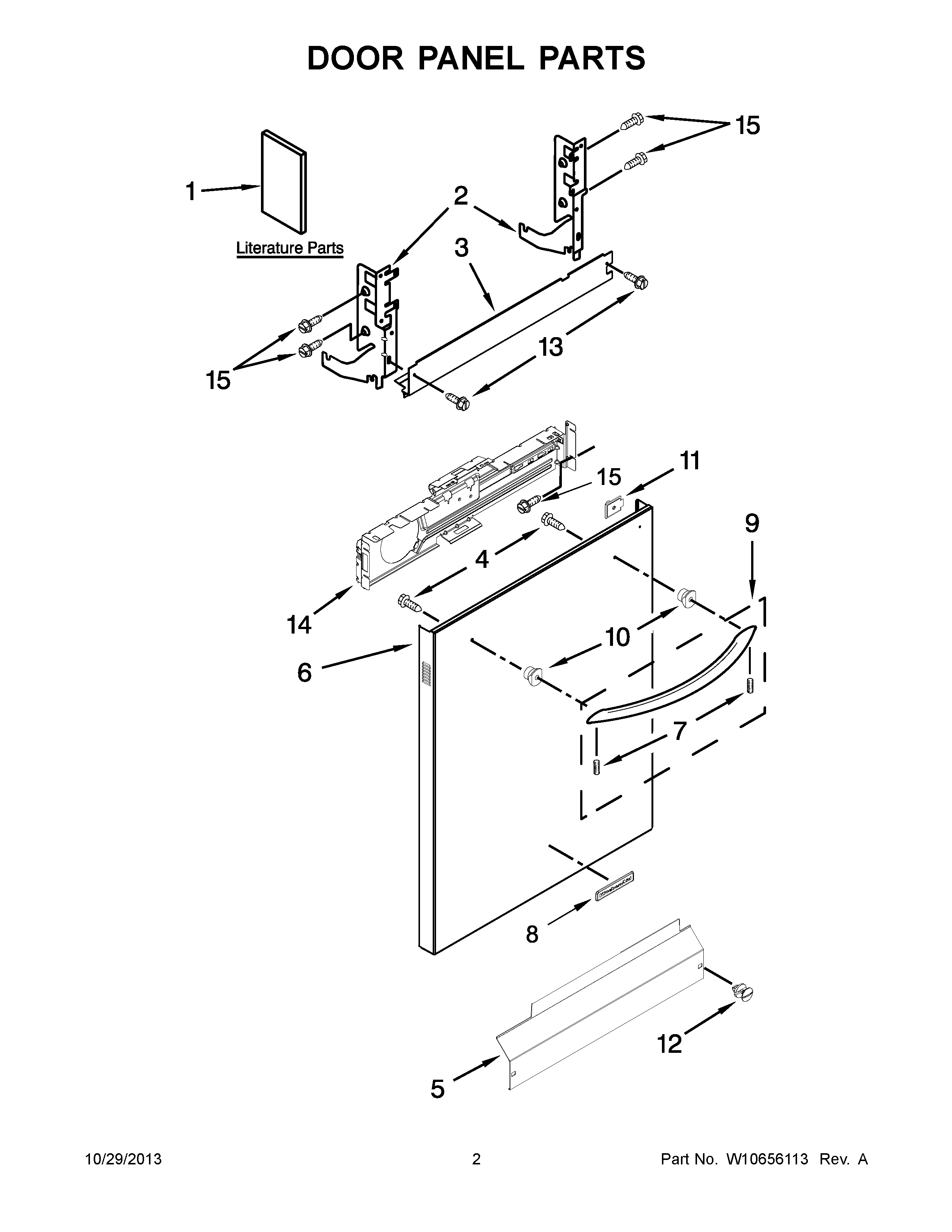

KUDL15FXSS7 02 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET, ENGLISH
1	USE & CARE GUIDE
1	TECH SHEET, FRENCH
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10826179 Whirlpool Dishwasher Screw
5	PANEL
5	WPW10441007 Whirlpool Dishwasher Panel
6	WPW10195870 Whirlpool Door Outer Panel
6	WPW10195872 Whirlpool Dishwasher Panel
7	WPW10307614 Whirlpool Dishwasher Screw
8	WPW10243393 Whirlpool Dishwasher Nameplate
8	WPW10243391 Whirlpool Refrigerator Nameplate
9	W10195738A Whirlpool Stainless Steel Door Handle
9	W10195736A Whirlpool Dishwasher Handle
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W10319007 Whirlpool Dishwasher Indicator Light
12	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	W11116870 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
