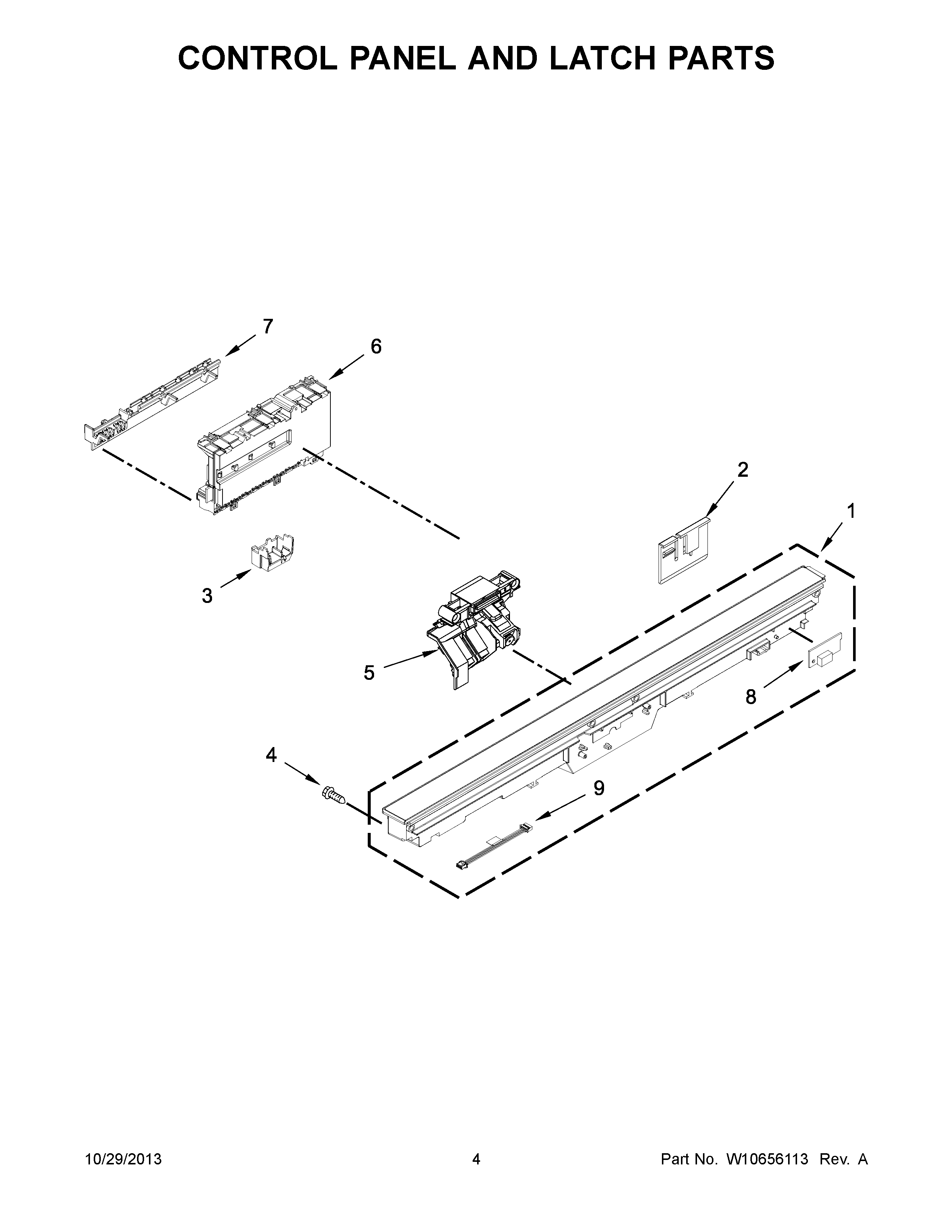

KUDL15FXSS7 03 – CONTROL PANEL AND LATCH PARTS

KUDL15FXSS7 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDL15FXSS7 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10481149 Whirlpool Dishwasher Control Panel
1WPW10481148 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10462393 Whirlpool Dishwasher Connector
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10866118 Whirlpool Dishwasher Electronic Control Board
7WPW10462395 Whirlpool Dishwasher Brace
8WPW10195836 Whirlpool Dishwasher Indicator Light
9W10528492 Whirlpool Dishwasher Wire
