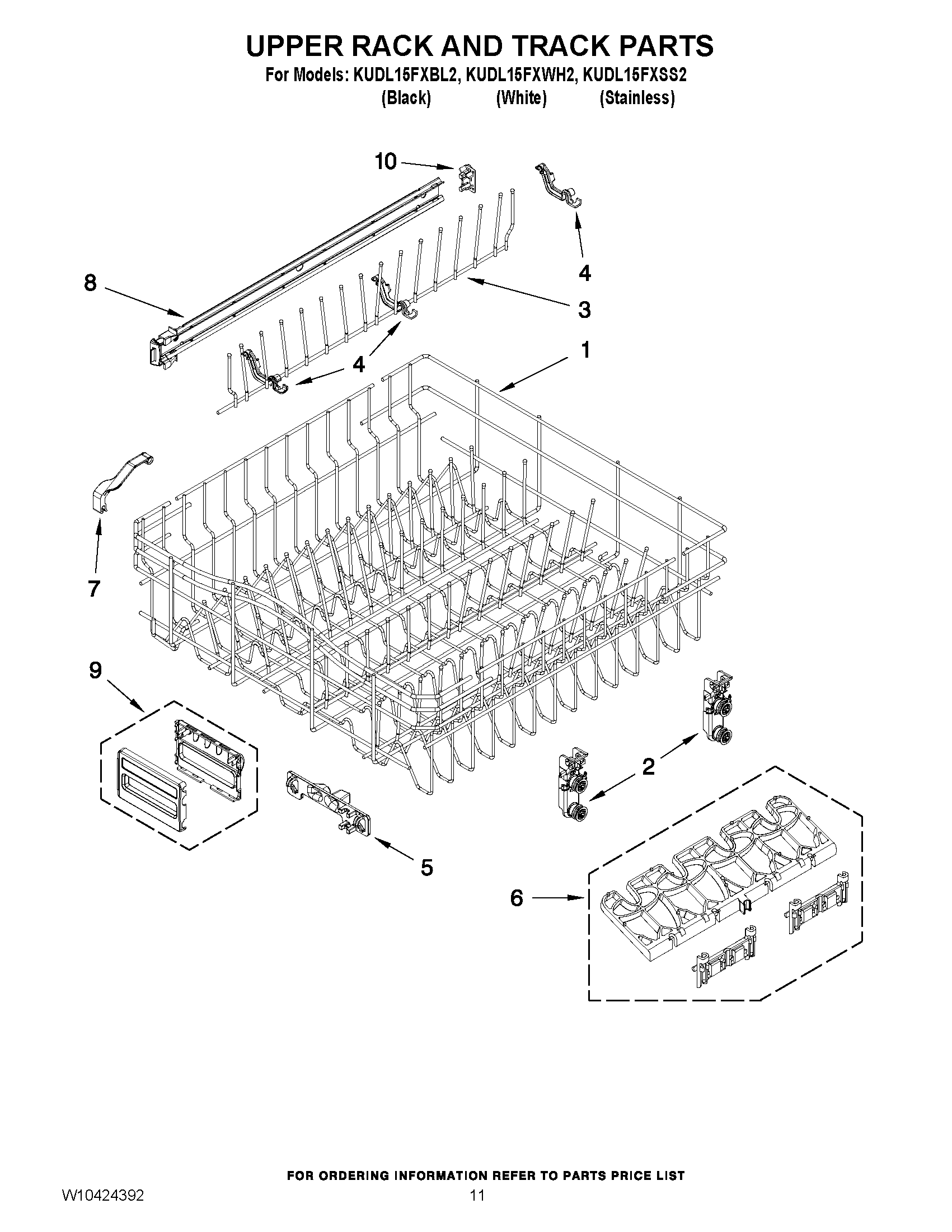

KUDL15FXWH2 09 – UPPER RACK AND TRACK PARTS

KUDL15FXWH2 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDL15FXWH2 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10728863 Whirlpool Upper Dishrack Assembly
2WPW10350401 Whirlpool Upper Rack Roller
3W10727426 Whirlpool Dishwasher Rack Tine
4WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
5WP8539102 Whirlpool Dishwasher Positioner
6WPW10082649 Whirlpool Dishwasher Cup Shelf
7WPW10267076 Whirlpool Guard Clip
8TRACK-DISHRACK
9W11110542 Whirlpool Dishwasher Handle
10WPW10195622 Whirlpool Stop
