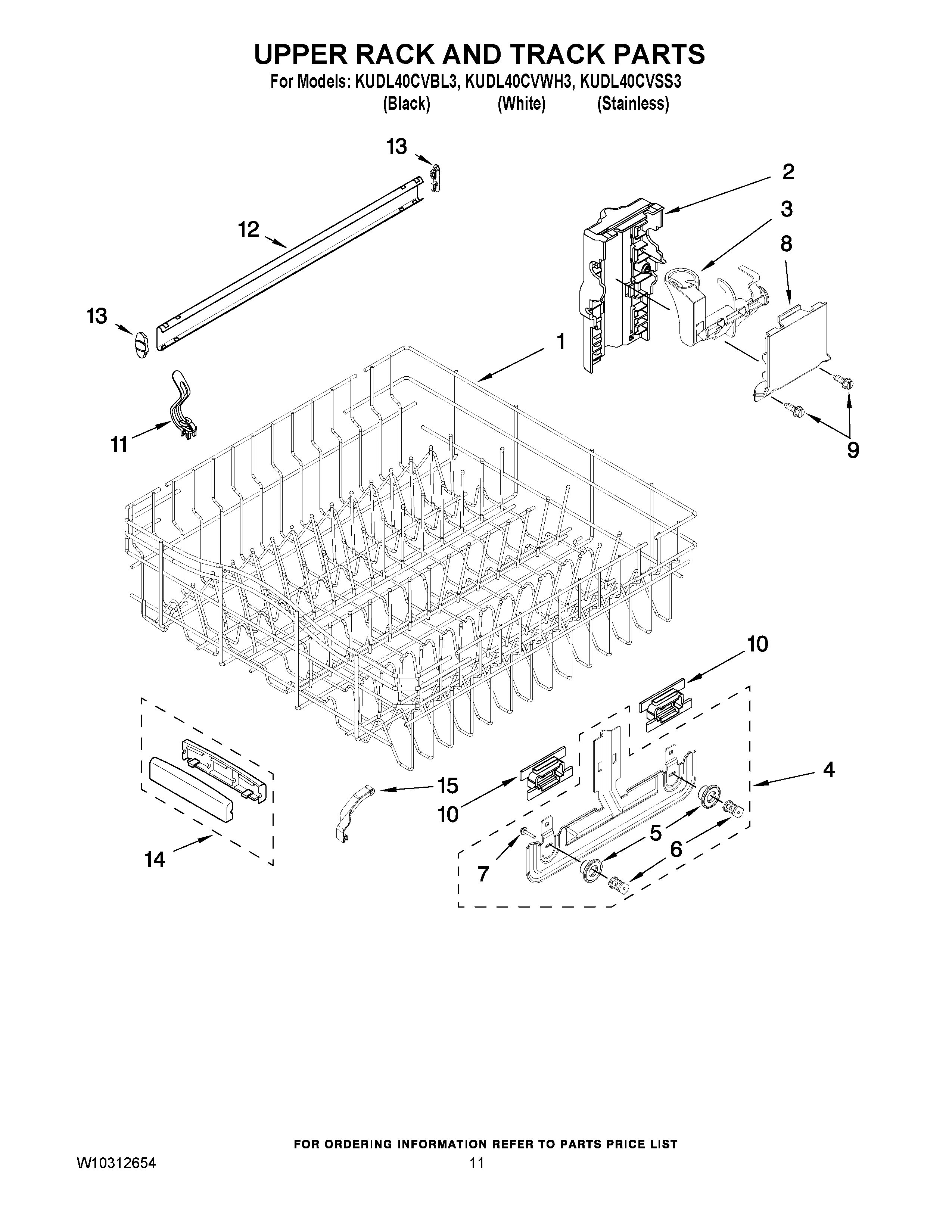

KUDL40CVBL3 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2W10728563 Whirlpool Dishwasher Housing
3Actuator, Adjuster (Right Hand)
3Actuator, Adjuster (Left Hand)
4W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5WP3385088 Whirlpool Dishwasher Upper Wheel
6WP8268703 Whirlpool Dishwasher Rack Axle
7WP8281156 Whirlpool Dishwasher Screw
8W10728561 Whirlpool Dishwasher Cover
9WP9741232 Whirlpool Dishwasher Screw
10W10728566 Whirlpool Dishwasher Positioner
11WPW10077844 Whirlpool Dishwasher Clip
12WP3385089 Whirlpool Track
13WP8565925 Whirlpool Slide Rail Stop
14Handle, Dishrack
15WPW10267076 Whirlpool Guard Clip
