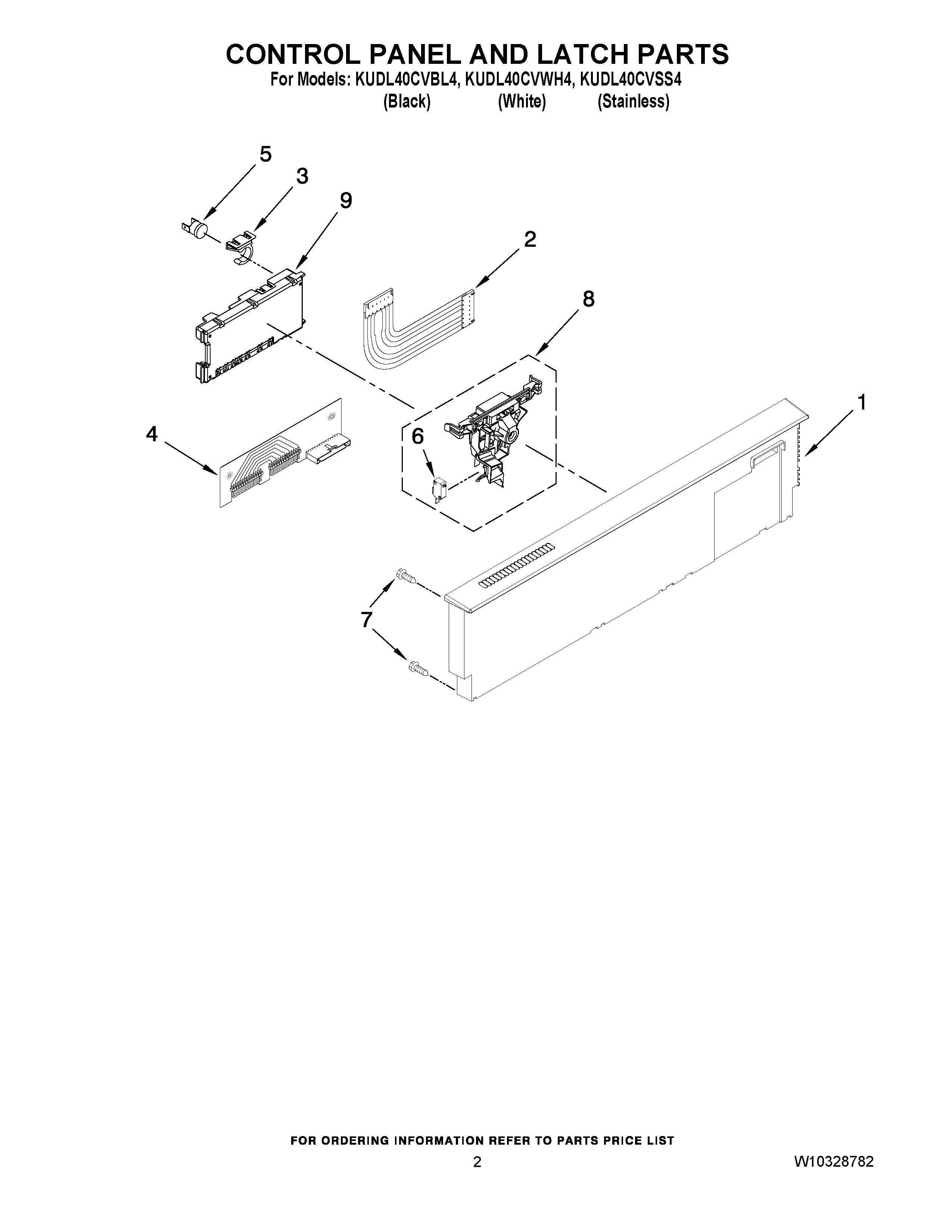

KUDL40CVBL4 02 – CONTROL PANEL AND LATCH PARTS

KUDL40CVBL4 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDL40CVBL4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (WHITE)
1WPW10084124 Whirlpool Dishwasher Console
1WP8572354 Whirlpool Dishwasher Console
2CABLE-RIBBON
3Clip, BI-Metal
4WP8531873 Whirlpool Dishwasher Control Board
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10134019 Whirlpool Dishwasher Switch
7WPW10348413 Whirlpool Dishwasher Screw
8WPW10404412 Whirlpool Door Latch
9WPW10285179-includeCORE Whirlpool WPW10285179 Dishwasher Electronic Control Board
