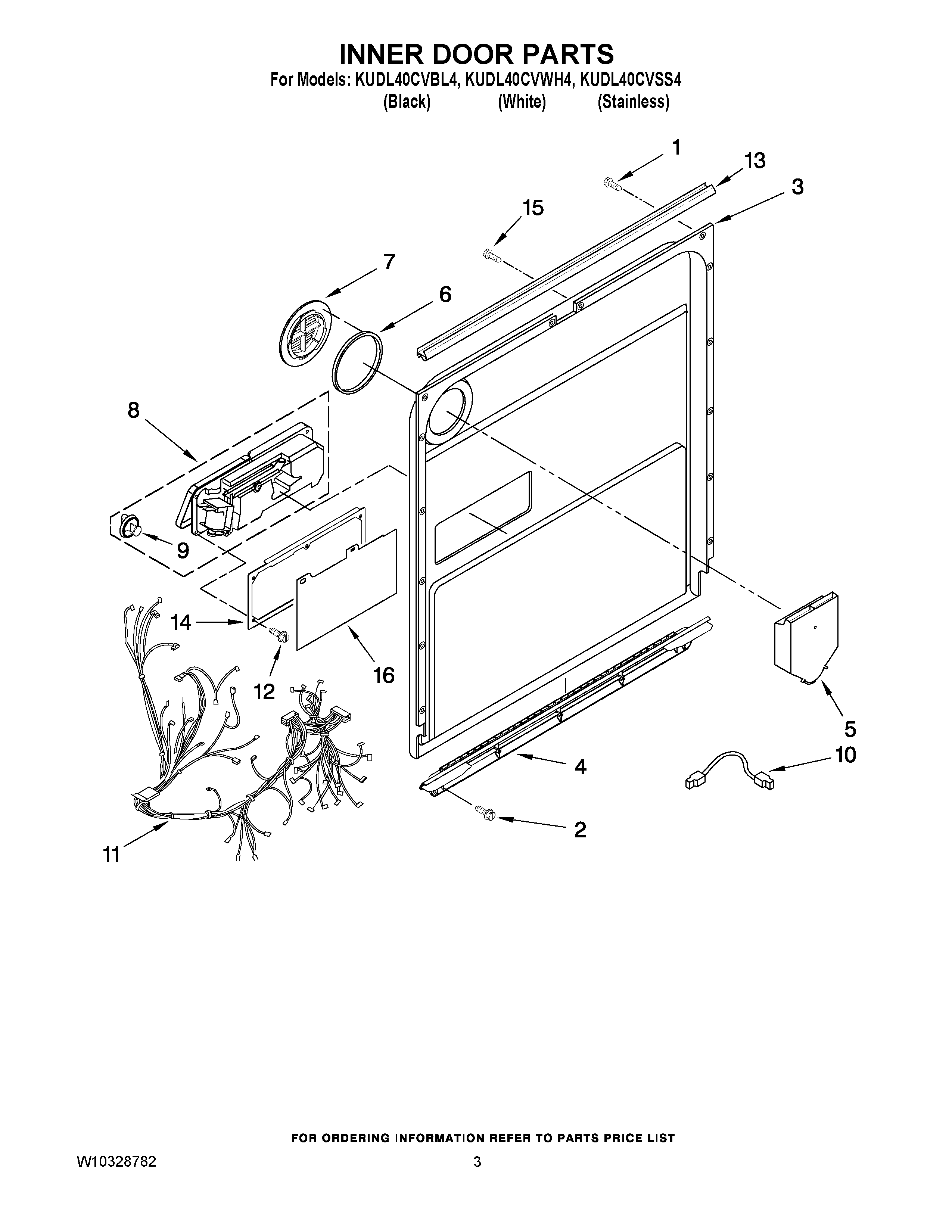

KUDL40CVBL4 03 – INNER DOOR PARTS

KUDL40CVBL4 03 – INNER DOOR PARTS

Written by

in

KUDL40CVBL4 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2W11631670 Whirlpool Screw
3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
4WPW10077883 Whirlpool Dishwasher Air Inlet
5WP8572611 Whirlpool Air Duct Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WPW10077877 Whirlpool Air Vent Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WPW10077881 Whirlpool Dispenser Cap
10Harness, Vent Motor
11WPW10413099 Whirlpool Dishwasher Wire Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WP8535660 Whirlpool Dishwasher Seal
14WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
15WP8533965 Whirlpool Dishwasher Screw
16WP8531865 Whirlpool Dishwasher Door Shield
