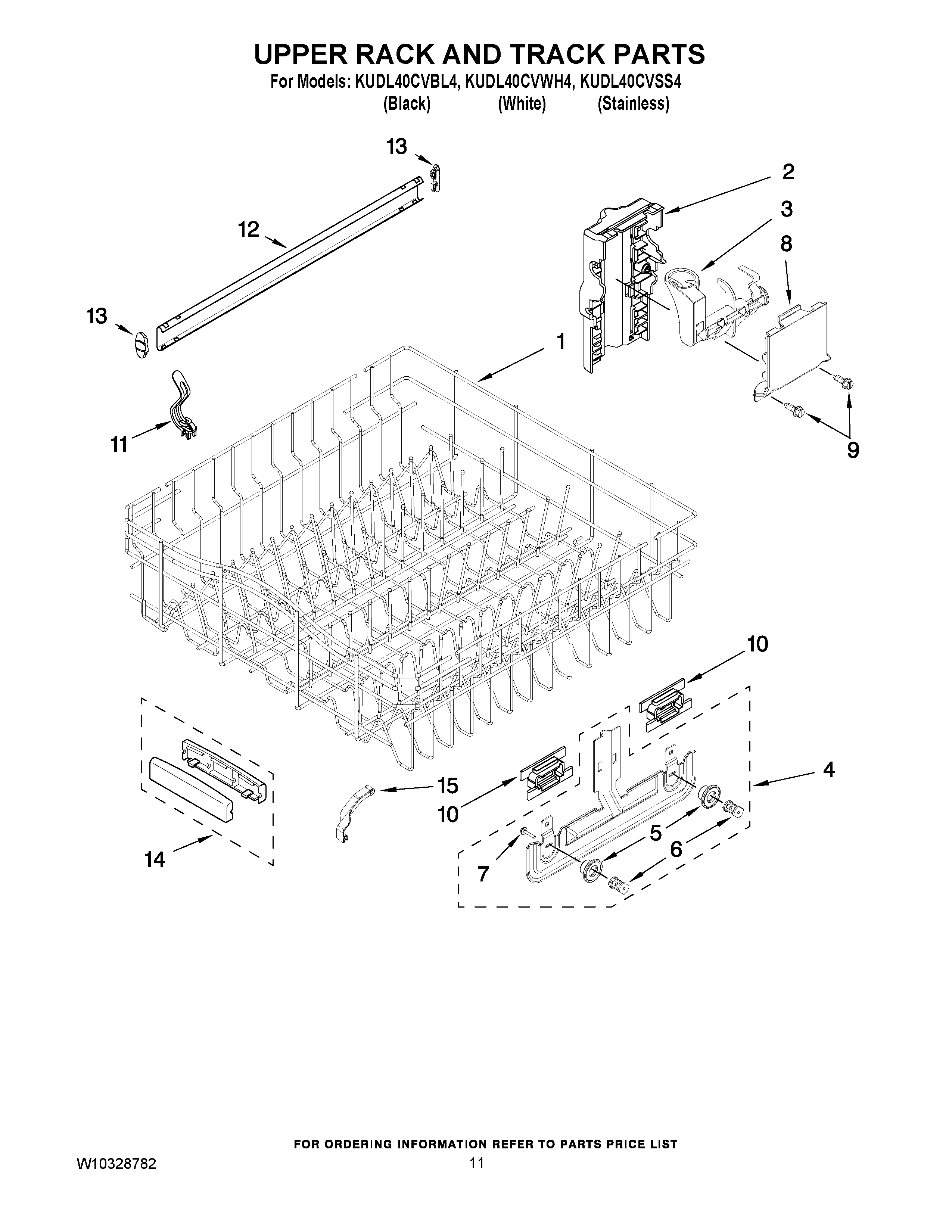

KUDL40CVBL4 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	WPW10350382 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10728561 Whirlpool Dishwasher Cover
9	WP9741232 Whirlpool Dishwasher Screw
10	W10728566 Whirlpool Dishwasher Positioner
11	WPW10077844 Whirlpool Dishwasher Clip
12	WP3385089 Whirlpool Track
13	WP8565925 Whirlpool Slide Rail Stop
14	Handle, Dishrack
15	WPW10267076 Whirlpool Guard Clip
