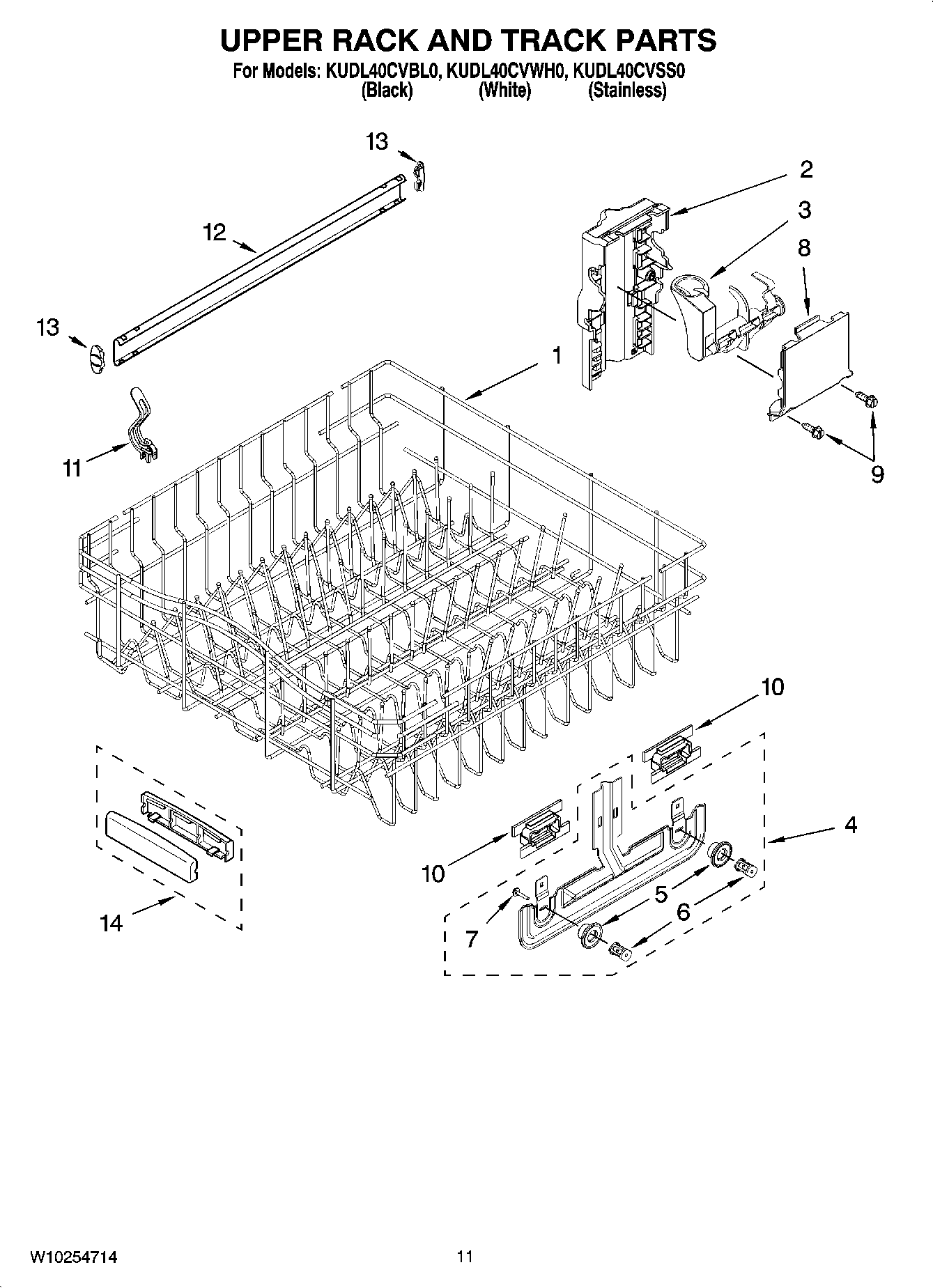

KUDL40CVSS0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	WPW10350382 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10728561 Whirlpool Dishwasher Cover
9	WP9741232 Whirlpool Dishwasher Screw
10	W10728566 Whirlpool Dishwasher Positioner
11	WPW10077844 Whirlpool Dishwasher Clip
12	WP3385089 Whirlpool Track
13	WP8565925 Whirlpool Slide Rail Stop
14	Handle, Dishrack
