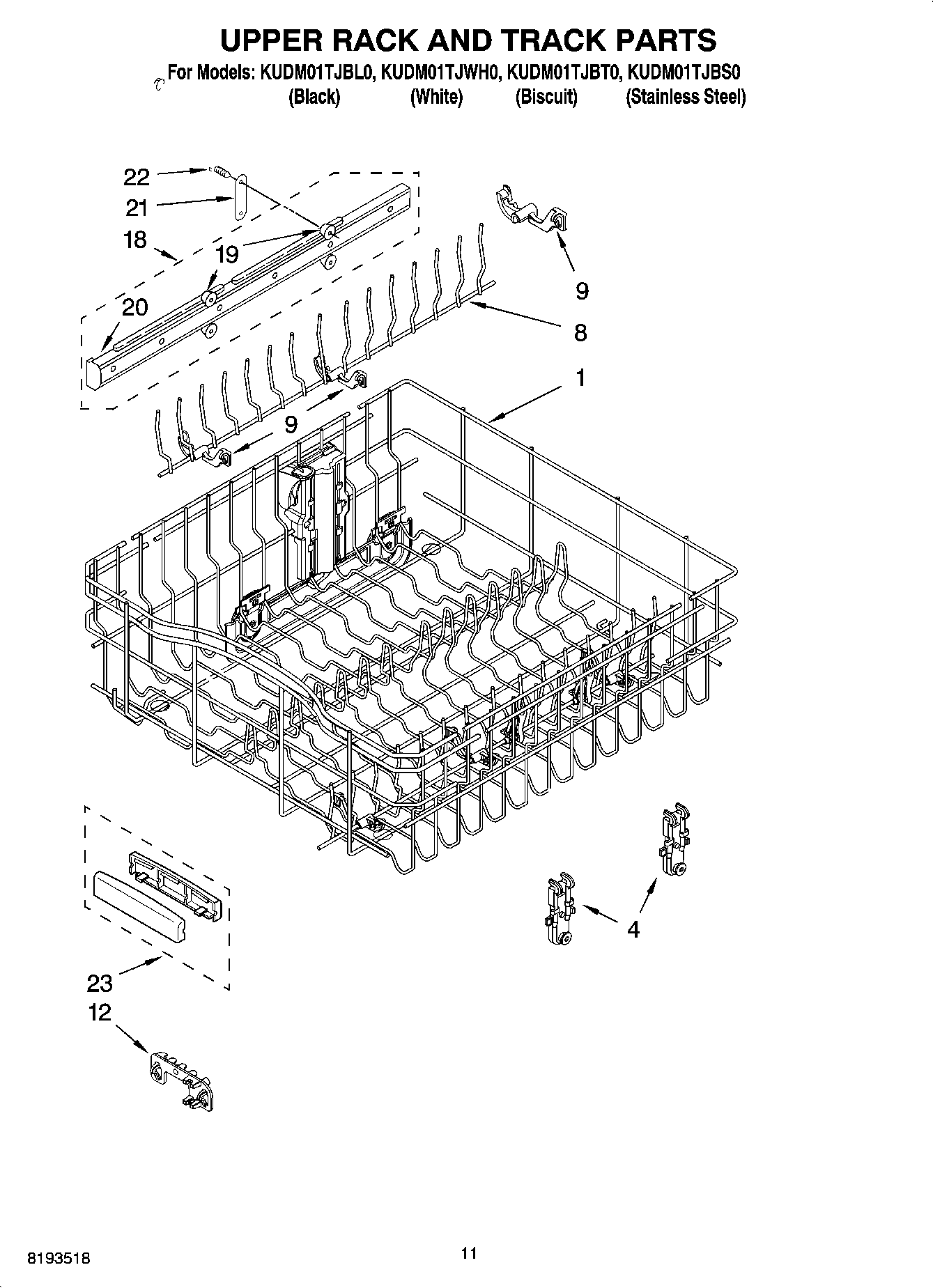

KUDM01TJBS0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	8193944 Whirlpool Dishwasher Rack Assembly
4	WP8268785 Whirlpool Dishwasher Wheel
8	W10727426 Whirlpool Dishwasher Rack Tine
9	Clip, Pivot
12	Positioner, Dual
18	W10404344 Whirlpool Dishwasher Track
19	Mount, Track (Also Order Item 21)
20	WP8270136 Whirlpool Dishwasher Stop
21	WP9743002 Whirlpool Dishwasher Gasket
22	WPW10348407 Whirlpool Dishwasher Screw
23	Handle, Dishrack
