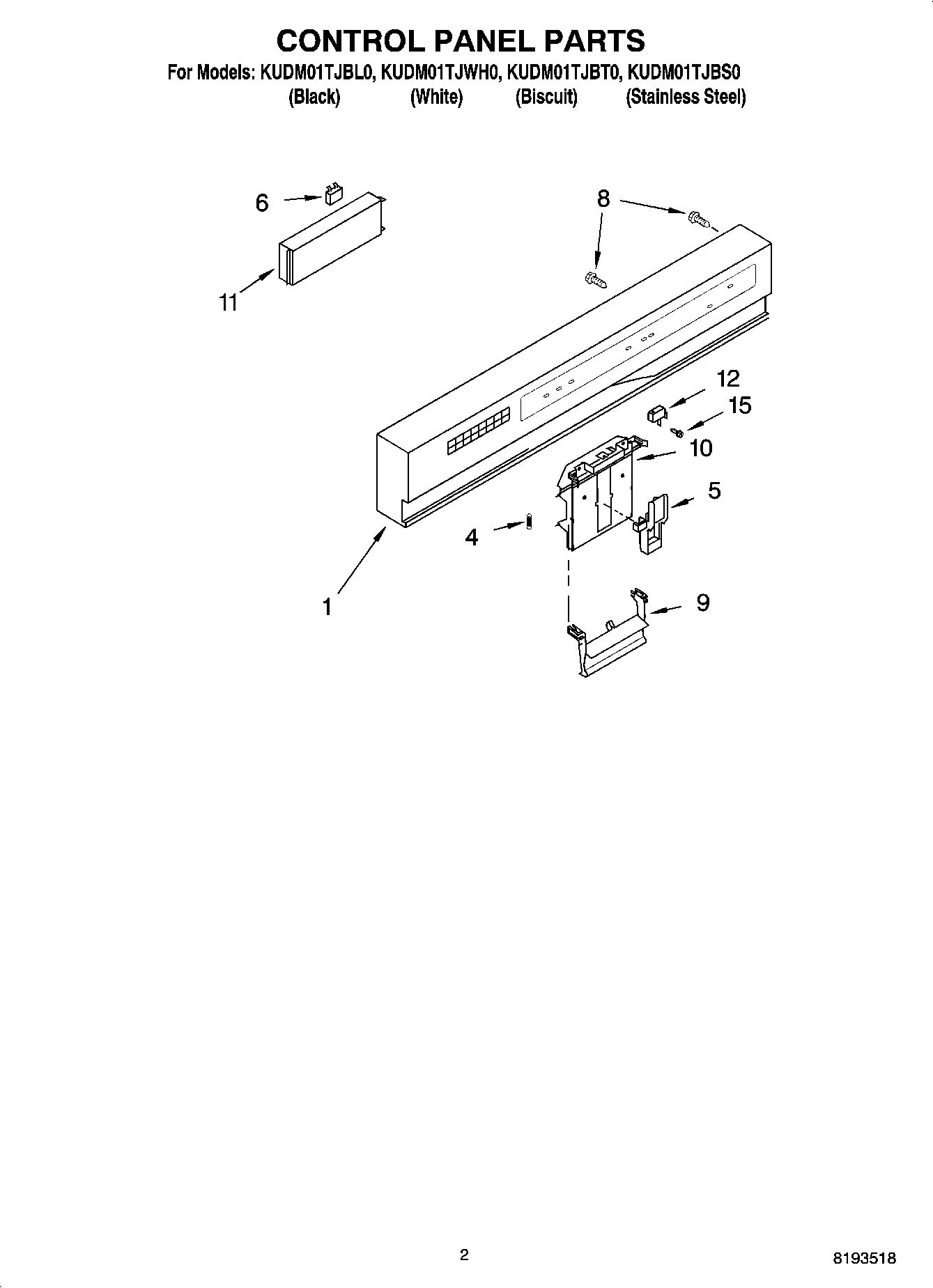

KUDM01TJBT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. includes Active Overlay & Insert (Biscuit)
1	Console Asm. includes Active Overlay & Insert (White)
1	Console Asm. includes Active Overlay & Insert (Black)
4	WP8268540 Whirlpool Door Handle Spring
5	WP8524472 Whirlpool Dishwasher Door Latch Actuator
6	8193762 Whirlpool Fuse Kit
8	WPW10348409 Whirlpool Screw
9	WP8269117 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	Control, Electronic
12	WP8269209 Whirlpool Door Switch
15	Screw
