KUDM03FTBL2 06 – FILL, DRAIN AND OVERFILL PARTS

KUDM03FTBL2 06 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

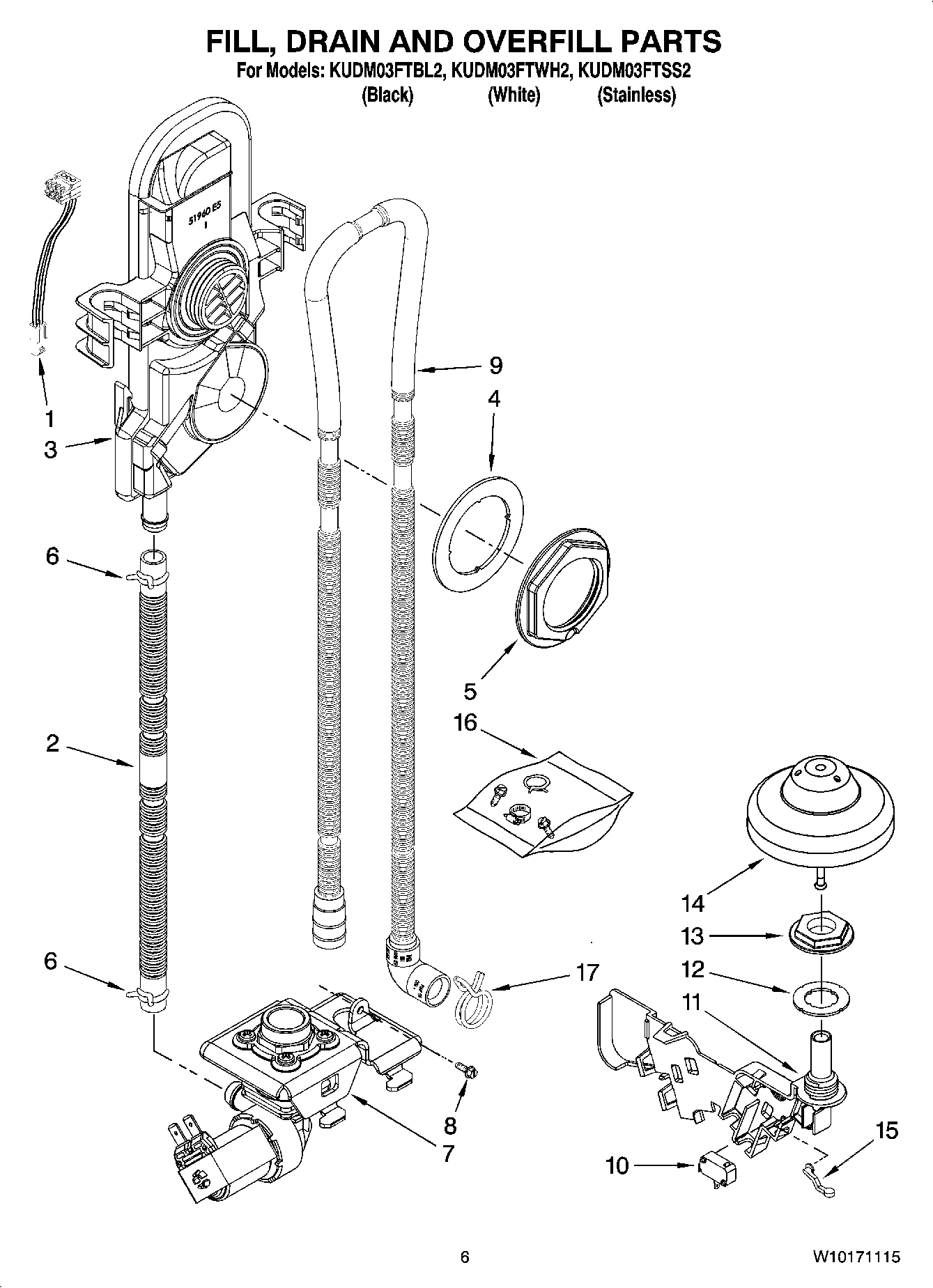

KUDM03FTBL2 06 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1Wire, Jumper
2WPW10041920 Whirlpool Dishwasher Fill Hose
3Water Inlet (Also Order Item 4)
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WPW10358302 Whirlpool Dishwasher Drain Hose
10WP8268909 Whirlpool Dishwasher Switch
118193506 Whirlpool Dishwasher Switch
12WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
13WP9741998 Whirlpool Dishwasher Nut
14WPW10077871 Whirlpool Dishwasher Float Assembly
15WP8268892 Whirlpool Dishwasher Lever
16WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
17WP356138 Whirlpool Hose Clamp
