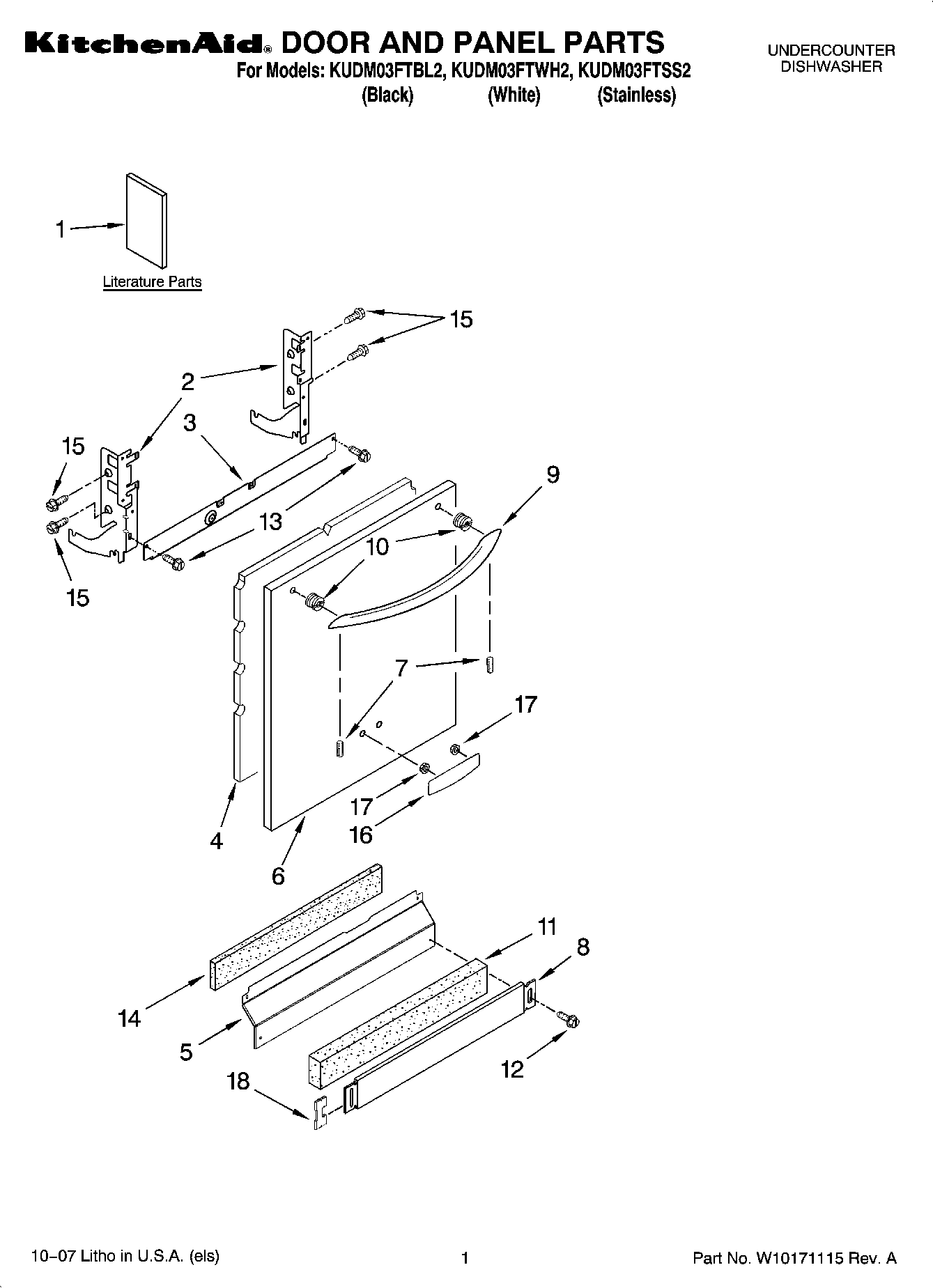

KUDM03FTWH2 01 – DOOR AND PANEL PARTSadmin2025-04-26T12:08:15+00:00KUDM03FTWH2 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Guide, Use & Care Spanish |
| 1 | Energy Guide |
| 1 | Tech Sheet |
| 1 | Guide, Use & Care English/French |
| 1 | Instructions, Installation |
| 2 | W11612303 Whirlpool Door Hinge |
| 2 | W11612302 Whirlpool Dishwasher Door Hinge |
| 3 | Stiffener, Door |
| 4 | WPW10073520 Whirlpool Dishwasher Insulation Pad |
| 5 | W10909066 Whirlpool Dishwasher Panel |
| 5 | PANEL |
| 6 | Panel, Full Front (Includes Items 4, 10, 16 & 17) (White) |
| 6 | Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black) |
| 6 | Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless) |
| 7 | WP8534008 Whirlpool Screw |
| 8 | W10909064 Whirlpool Dishwasher Black Access Panel |
| 8 | WPW10586591 Whirlpool Dishwasher Toe Panel |
| 9 | W10195738A Whirlpool Stainless Steel Door Handle |
| 9 | Handle Assy (Includes Items 7) (Black) |
| 9 | Handle Assy (Includes Items 7) (White) |
| 10 | WP8564951 Whirlpool Dishwasher Stud |
| 11 | SHIELD |
| 12 | WP302868 Whirlpool Screw |
| 12 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 13 | WP489069 Whirlpool Compactor Screw |
| 15 | WP3400071 Whirlpool Screw |
| 16 | W10021870 Whirlpool Nameplate |
| 16 | W10021860 Whirlpool Dishwasher Nameplate |
| 16 | W10021850 Whirlpool Dishwasher Nameplate |
| 17 | WP2004333 Whirlpool Refrigerator Nut |
| 18 | WP8269016 Whirlpool Clip Assembly |
