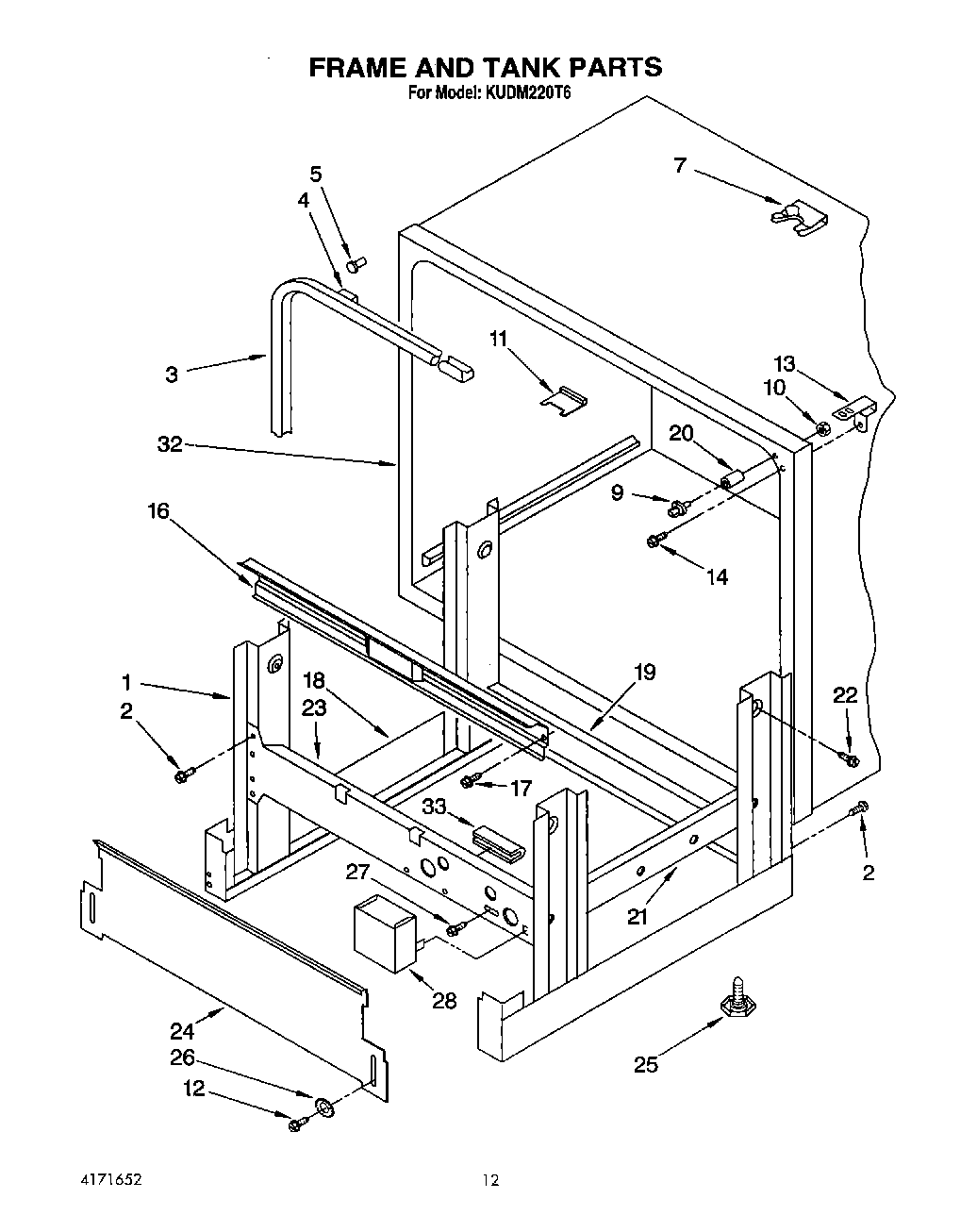

KUDM220T6 10 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2	Screw, 10-16 X 5/8
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
7	Clip, Retainer
9	Actuator, Interlock Switch
10	Lock Nut
11	Keeper, Latch
12	Screw, 10-16 x 3/8
13	WP9741251 Whirlpool Mounting Bracket
14	Screw, 7-19 x 1/2
16	Support, Lower Panel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Sleeve, Actuator
21	Frame Assembly (R.H.)
22	Screw (2)
23	Cross Frame, Front
24	Kick Board ((Black))
25	Foot, Leveling (4)
26	Lock Washer No.10 Ext. Shake- proof
27	Screw
28	Enclosure, Elec. Supply
28	SCREW
32	Tank (Serviced Complete with Frame)
33	Protector, Edge
