KUDM24SEAL1 02 – CONTROL PANEL

KUDM24SEAL1 02 – CONTROL PANEL

Written by

in

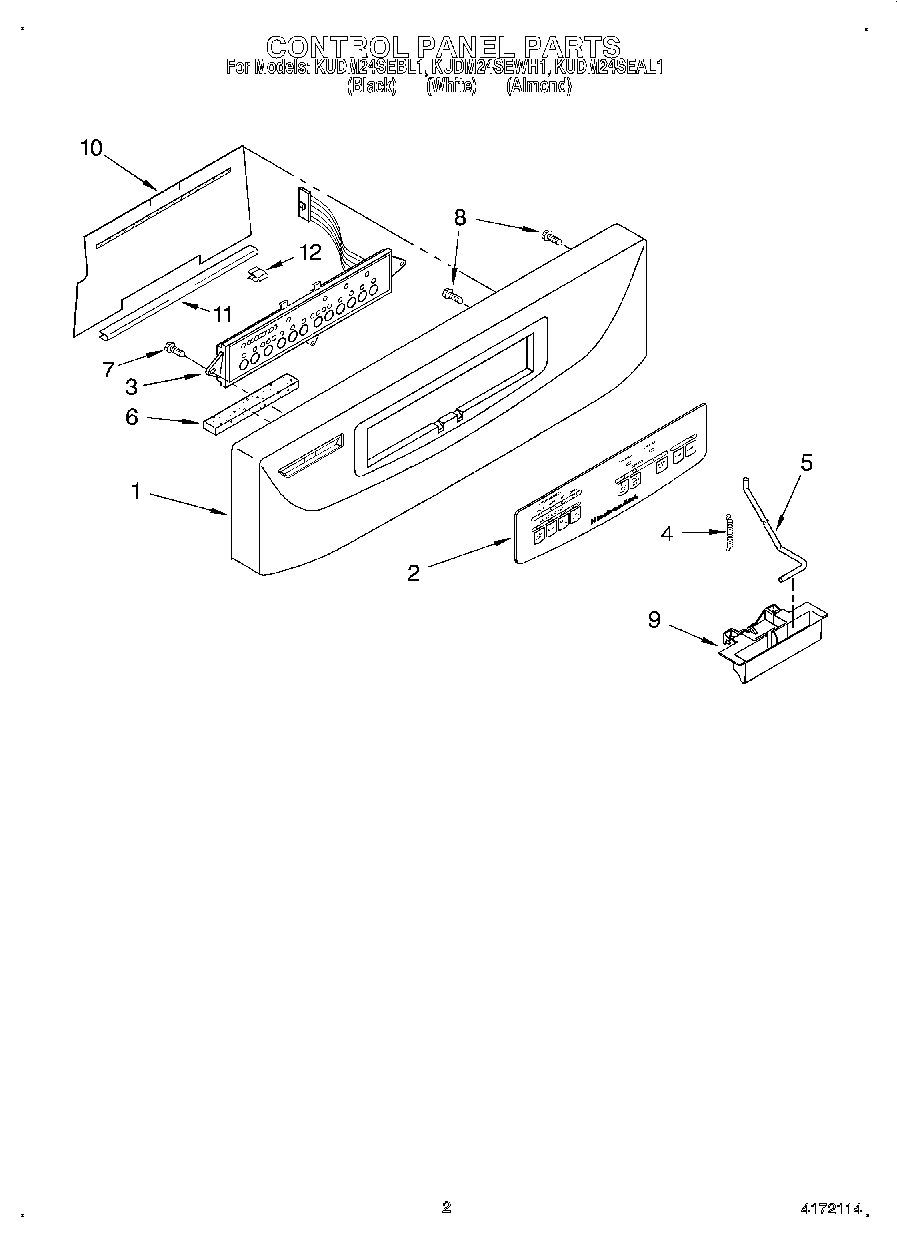

KUDM24SEAL1 02 – CONTROL PANEL

Products

PositionProduct
1Console (Also Order Item 2) (White Model)
1Console (Also Order Item 2) (Almond Model)
1Console (Also Order Item 2) (Black Model)
2Insert (Almond Model)
2Insert (White Model)
2Insert (Black Model)
3Switch, Panel (User Interface)
4Spring, Handle
5Link, Handle
6Sponge, Vent
7WP304231 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP9743903 Whirlpool Dishwasher Handle
10Barrier, Display
11Retainer, Barrier
12Clip, Retainer
