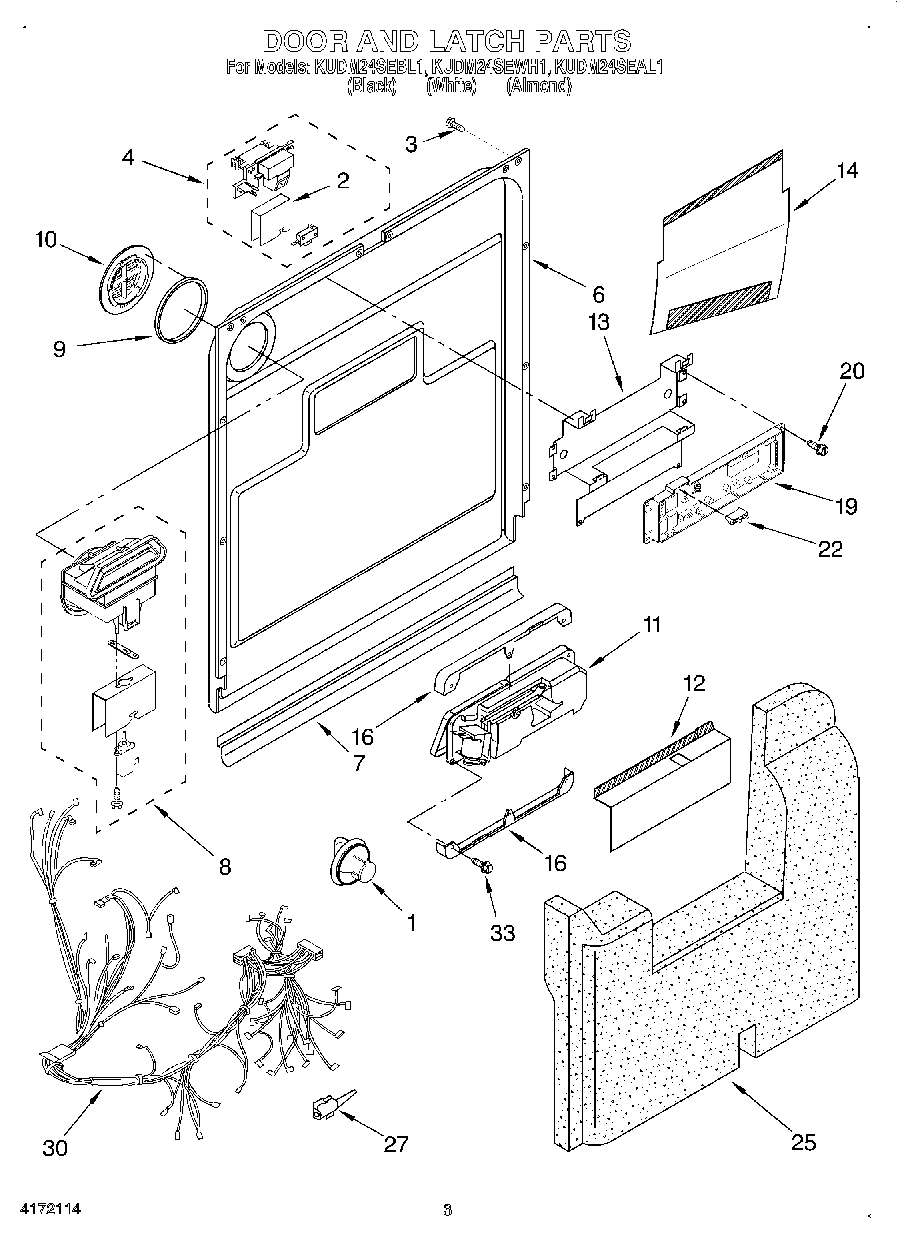

KUDM24SEAL1 03 – DOOR AND LATCH

Products

Position	Product
1	Cap, Dispenser
2	675760 Whirlpool Dishwasher Door Latch Assembly
3	WPW10348409 Whirlpool Screw
6	Inner Door Mastic Assembly (Also Includes Items 7, 9 & 10)
7	4172127 Whirlpool Dishwasher Bottom Door Seal
8	Vent Assembly (Also Order Item 9)
9	Gasket, Vent
10	Deflector, Vent (Also Order Item 9)
11	WPW10616003 Whirlpool Dishwasher Dispenser Assembly
12	Shield, Dispenser
13	Bracket, Controls
14	Shield, Control
15	Screw
16	Bracket, Dispenser (2)
19	Control, Electronic
20	WP965173 Whirlpool Dishwasher Screw
22	Fuse Thermal Electronic
25	Sound Absorber
27	3376405 Whirlpool Dishwasher Elbow
30	Wiring Harness Main
33	Screw (6)
