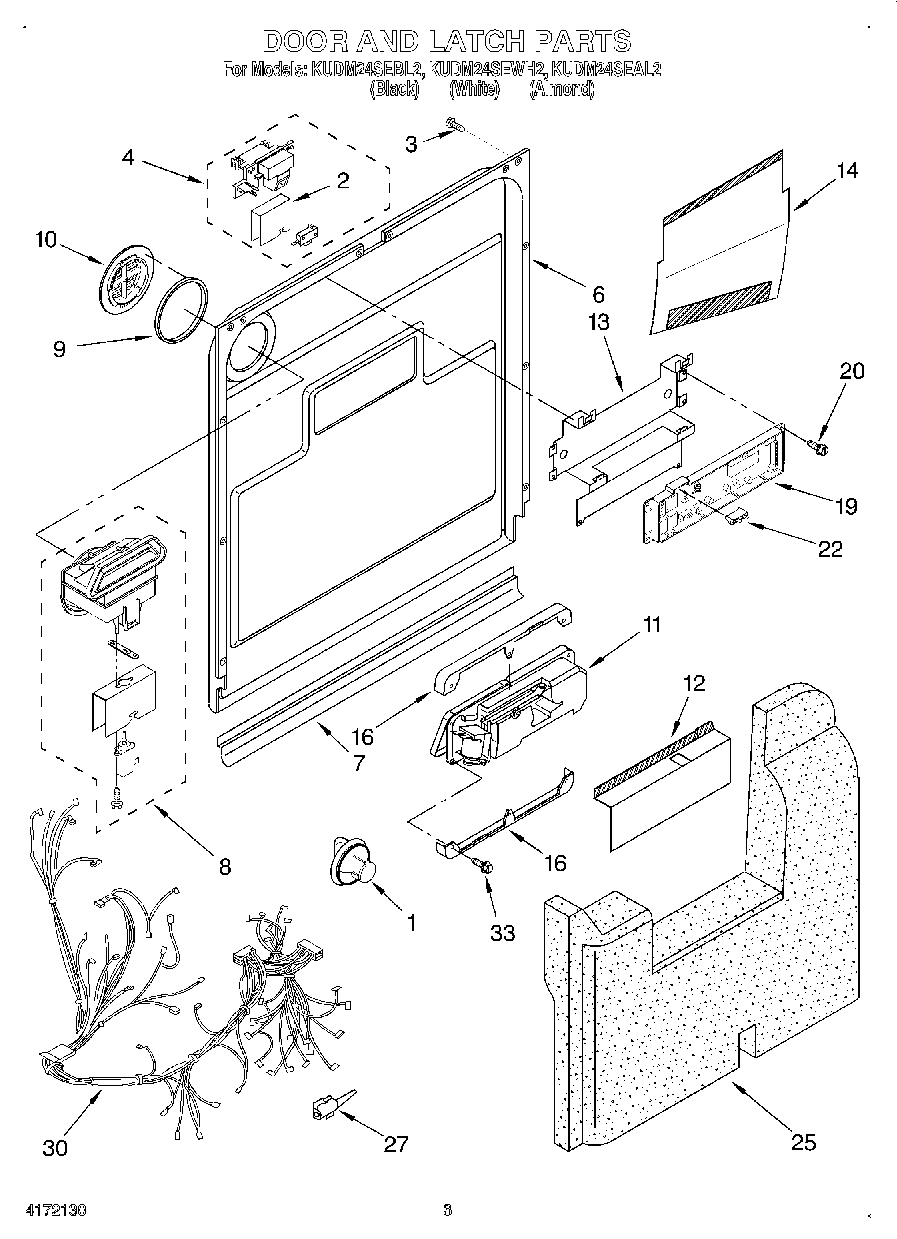

KUDM24SEAL2 03 – DOOR AND LATCHadmin2025-04-26T12:07:38+00:00KUDM24SEAL2 03 – DOOR AND LATCH ProductsPositionProduct1Cap, Dispenser2675760 Whirlpool Dishwasher Door Latch Assembly3WPW10348409 Whirlpool Screw6Inner Door Mastic Assembly (Also Includes Items 7, 9 & 10)74172127 Whirlpool Dishwasher Bottom Door Seal8Vent Assembly (Also Order Item 9)9Gasket, Vent10Deflector, Vent (Also Order Item 9)11WPW10616003 Whirlpool Dishwasher Dispenser Assembly12Shield, Dispenser13Bracket, Controls14Shield, Control15Screw16Bracket, Dispenser (2)19Control, Electronic20WP965173 Whirlpool Dishwasher Screw22Fuse Thermal Electronic25Sound Absorber273376405 Whirlpool Dishwasher Elbow30Wiring Harness Main33Screw (6)
