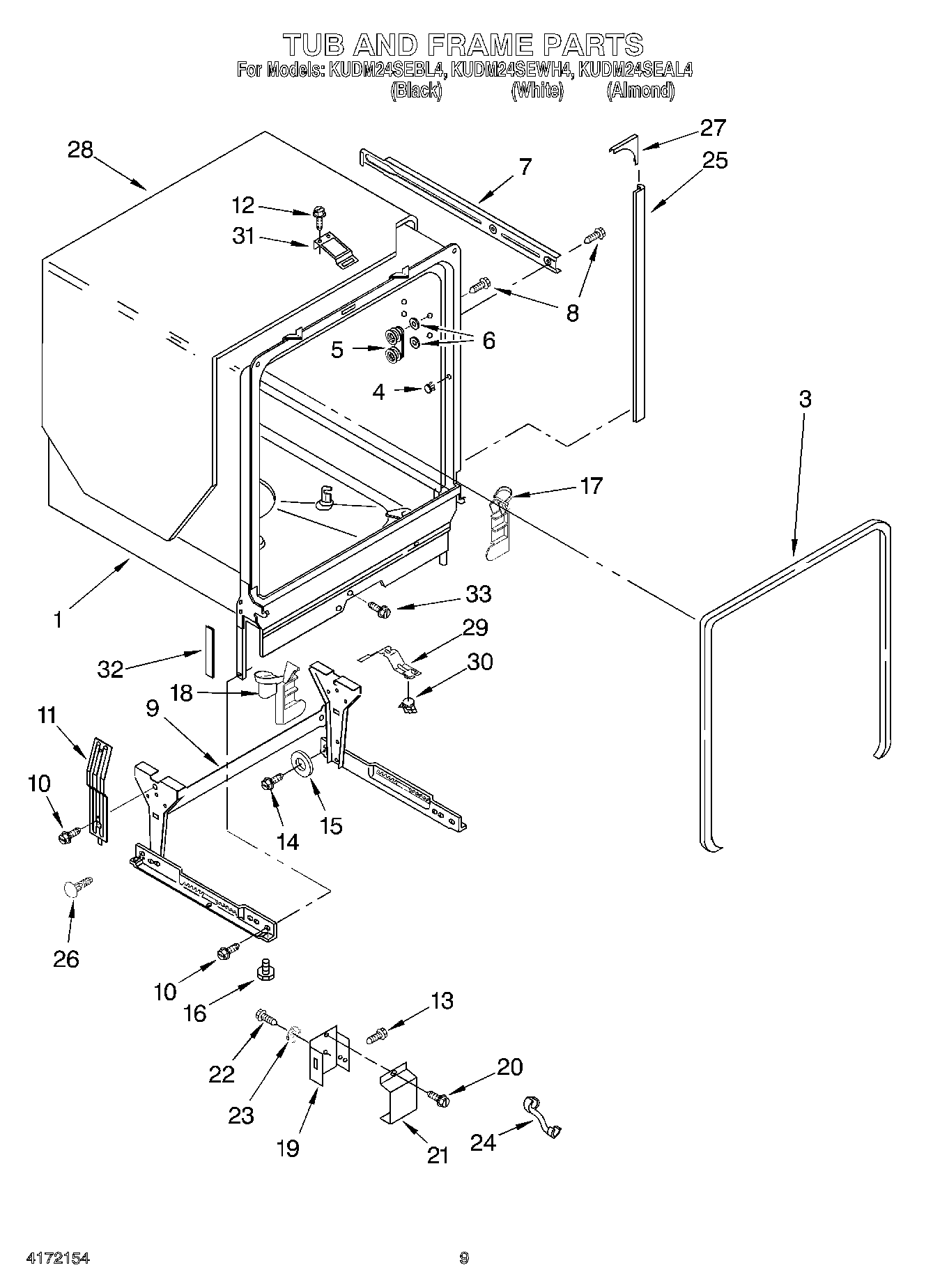

KUDM24SEAL4 08 – TUB AND FRAME

Products

Position	Product
1	Tub Assembly
3	Door Seal
4	Plug Tub (2)
5	Wheel & Mount Assembly (Also Order Item 6)
6	WP9743002 Whirlpool Dishwasher Gasket
7	Tub Stiffener
8	WPW10349488 Whirlpool Screw
9	Rear Support Assembly
10	SCREW
11	Connector Tub To Brace
12	WP90767 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
14	Screw (2)
15	WP302819 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	4172127 Whirlpool Dishwasher Bottom Door Seal
19	Terminal Box
20	Screw
21	300068 Whirlpool Dishwasher Cover Assembly
22	WP3400014 Whirlpool Dishwasher Screw
23	WP3378128 Whirlpool Dishwasher Washer
24	Relief, Strain
25	Trim Strip, Tub
26	WP304666 Whirlpool Dishwasher Retainer
27	Corner Trim, Tub
28	W11086533 Whirlpool Dishwasher Shield
29	9742648 Whirlpool Dishwasher Stat Bracket
30	WP661566 Whirlpool High Limit Thermostat
31	Strike, Latch
32	Pad, Friction
33	WP489128 Whirlpool Refrigerator Screw
