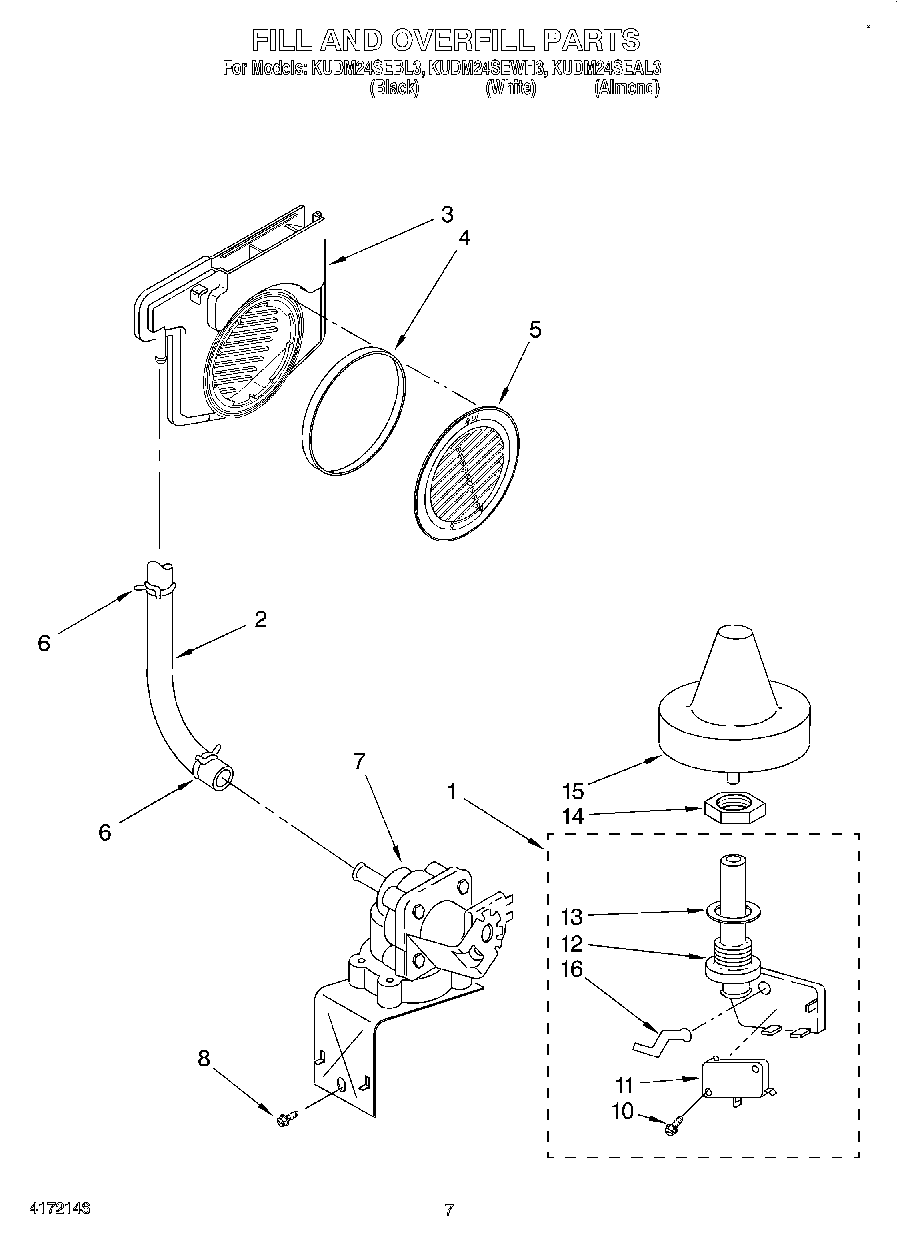

KUDM24SEWH3 06 – FILL AND OVERFILL

KUDM24SEWH3 06 – FILL AND OVERFILL

Written by

in

KUDM24SEWH3 06 – FILL AND OVERFILL

Products

PositionProduct
1W10207863 Whirlpool Dishwasher Switch
2WP9742727 Whirlpool Dishwasher Fill Hose
3Water Inlet Assembly (Includes Items 4 & 5)
4Gasket
5Bezel, Inlet
6WP596669 Whirlpool Hose Clamp
7Fill Valve Assembly
8WP489069 Whirlpool Compactor Screw
10Screw
11WP9743413 Whirlpool Dishwasher Switch
12WP9741997 Whirlpool Dishwasher Standpipe
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
15WP9741998 Whirlpool Dishwasher Nut
16Lever, Overflow Switch
