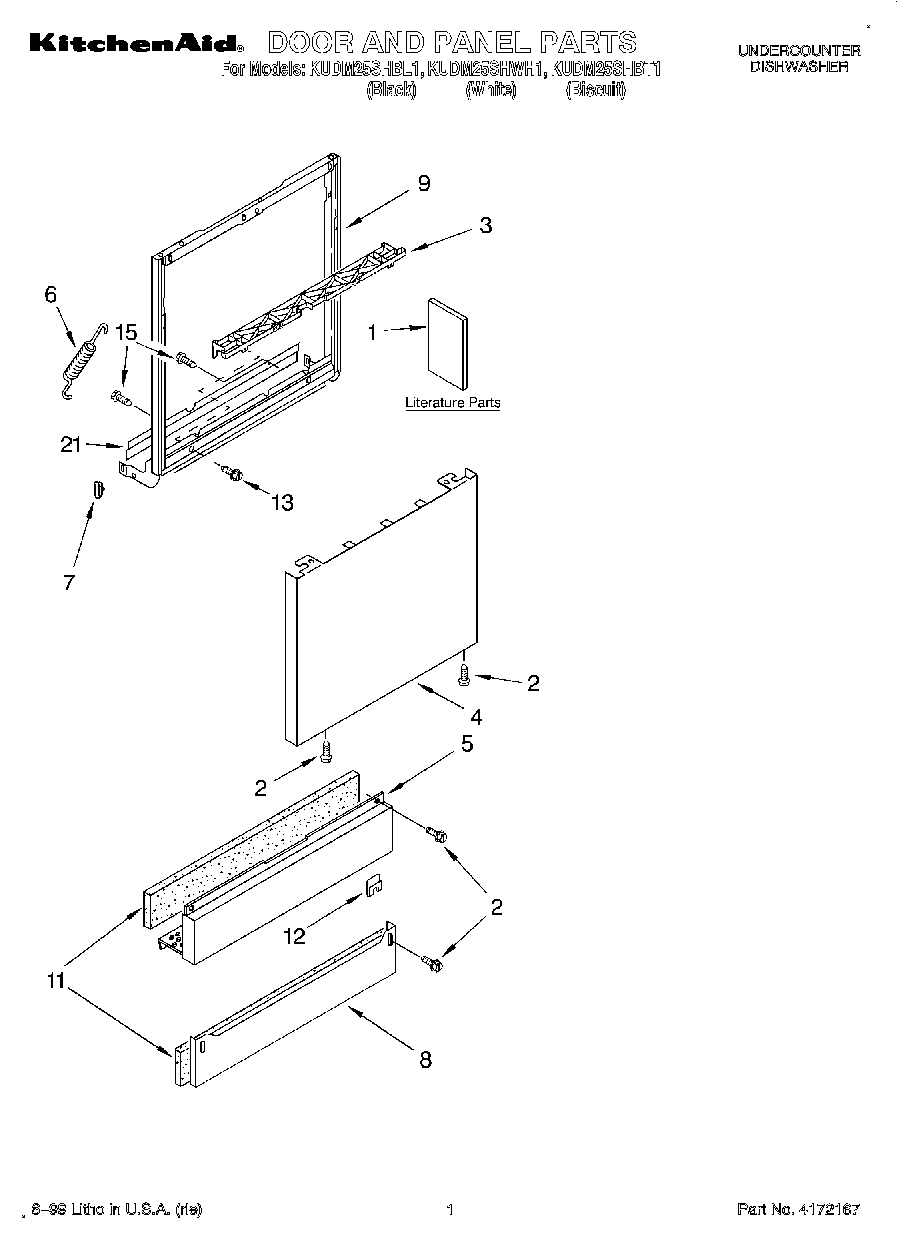

KUDM25SHBL1 01 – DOOR AND PANEL, LITERATURE

KUDM25SHBL1 01 – DOOR AND PANEL, LITERATURE

Written by

in

KUDM25SHBL1 01 – DOOR AND PANEL, LITERATURE

Products

PositionProduct
1Guide, Use & Care
1Literature Parts (Energy Guide)
1Instructions, Installation
1Literature Parts (Tech Sheet) (English)
1Literature Parts (Tech Sheet) (French)
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel, Front (Biscuit)
4Panel Front (White Model)
4Panel Front (Black Model)
5Access Panel & Clip Assembly (Biscuit)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8WP3379921 Whirlpool Dishwasher Toe Panel
8WP3379920 Whirlpool Dishwasher Toe Panel
8Toe Panel (Includes Item 11) (Biscuit)
9WP9743028 Whirlpool Dishwasher Frame
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
15WP488234 Whirlpool Air Conditioner Screw
21Barrier, Lower vent
