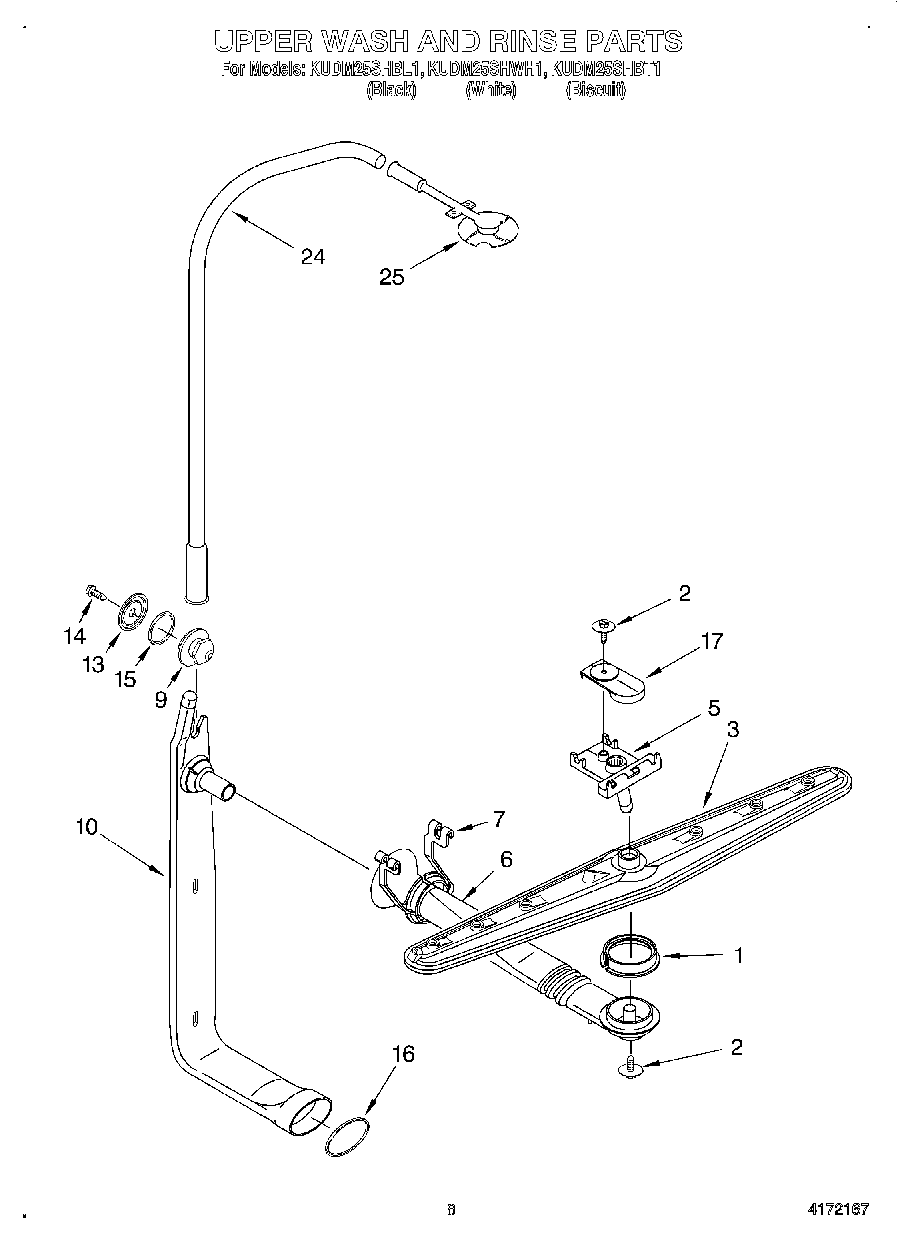

KUDM25SHBL1 07 – UPPER WASH AND RINSE

Products

Position	Product
1	WP3376846 Whirlpool Seal
2	WPW10349488 Whirlpool Screw
3	675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
5	WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
6	WP3378144 Whirlpool Dishwasher Tube
7	WP3378186 Whirlpool Dishwasher Holder
9	Connector (Includes Items 13, 14 & 15)
10	661651 Whirlpool Dishwasher Tube
13	Washer
14	WP9740848 Whirlpool Dishwasher Screw
15	Gasket, Connector
16	Seal, Tube
17	WP8268812 Whirlpool Dishwasher Mounting Assembly
24	Tube (3rd Level)
25	WP3379369 Whirlpool Dishwasher Wash Assembly
