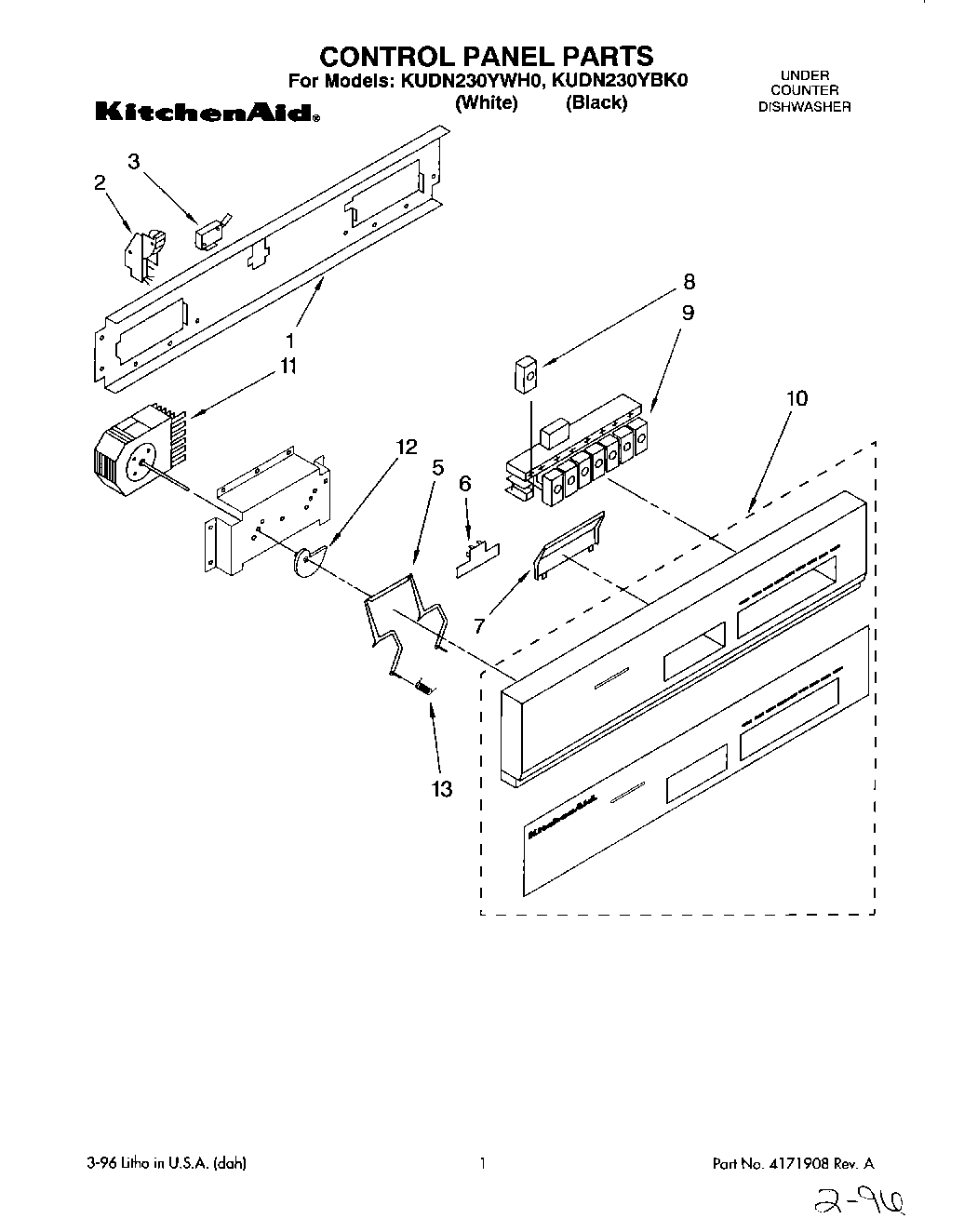

KUDN230YBK0 01 – CONTROL PANEL

Products

PositionProduct
1Bracket, Control (Not Serviceable)
2Latch, Door
3Microswitch, Door
5Parallel Crank, Drive Motor
6Plate, Indicator
7Insert, Handle (White)
7Insert, Handle (Black)
8Push-Button (Black)
8Push-Button (White)
9Switch, Push-Button
10Control Panel (White)
10Control Panel (Black)
11Timer
12Cam
13Spring, Crank
