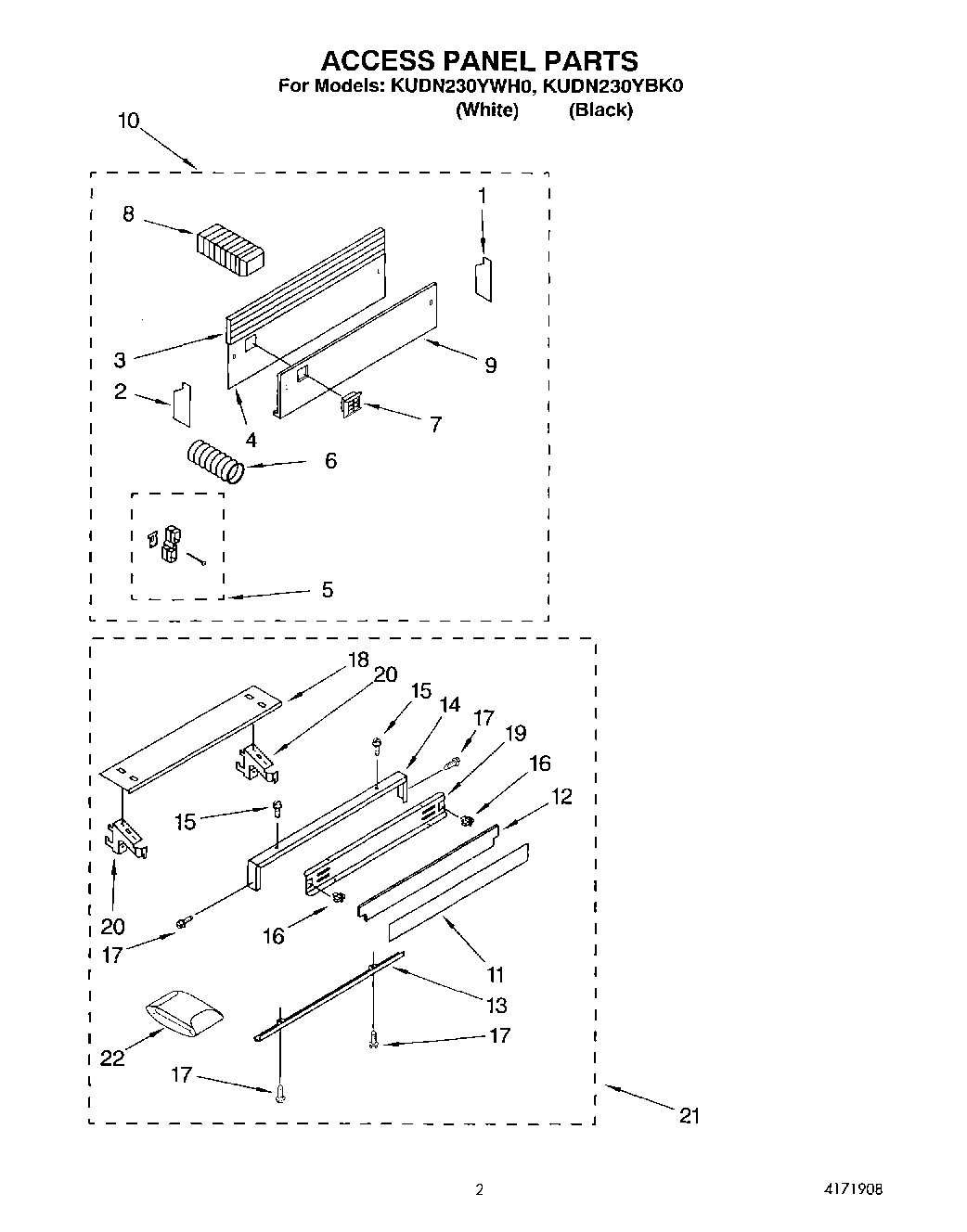

KUDN230YBK0 02 – ACCESS PANEL

Products

Position	Product
1	Cover, Plate R.S.
2	Cover, Plate L.S.
3	Extension, Foot Panel
4	Foot Panel, Base
5	Adjuster, Base Plate
6	Support, Foot Panel
7	Air Grid (Black)
7	Air Grid (White)
8	Vent Duct
9	Panel, Toe Kick (Black)
9	Panel, Toe Kick (White)
10	Toe Kit (European) (White)
10	Toe Kit (European) (Black)
11	Panel, Front Access (White/Black)
12	Spacer, Access Panel
13	Trim, Upper (Black)
13	Trim, Upper (White)
14	Trim, Bottom (White)
14	Trim, Bottom (Black)
15	Screw, Upper Trim (2)
16	Clip (2)
17	Screw, Bottom Trim (4) Black For White Also Order)
17	72017 Whirlpool Appliance Touch-Up Paint White
18	Panel, Bottom (Black)
18	Panel, Bottom (White)
19	Bracket, Front
20	Bracket, Side (2)
21	Toe Kit (American) (White)
21	Toe Kit (American) (Black)
22	Misc. Parts (Includes White Touch-Up Paint)
