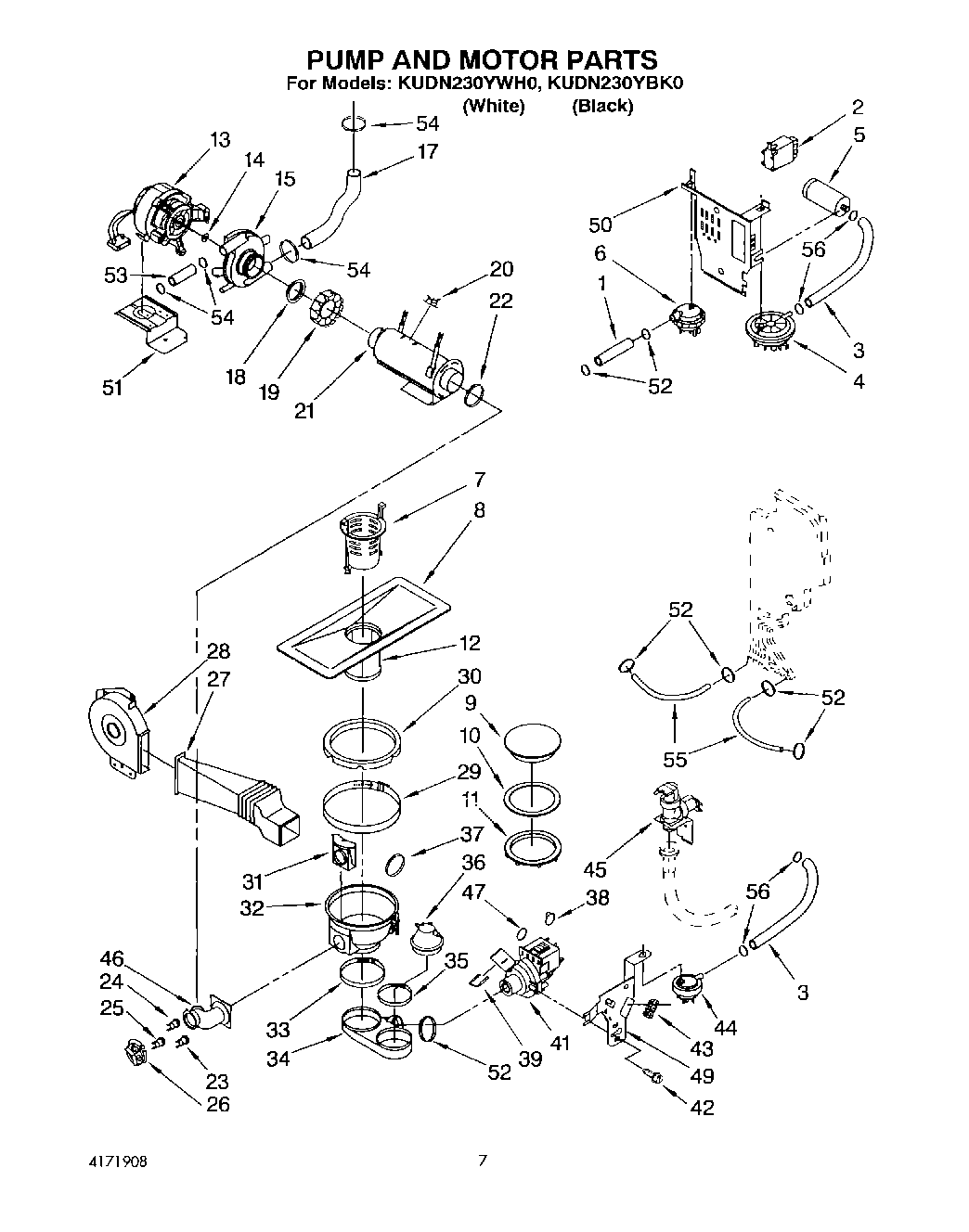

KUDN230YBK0 05 – PUMP AND MOTOR

Products

Position	Product
1	Hose, Level Switch (Includes (2) Includes No.52 Clamps)
2	Relay, Heating
3	Hose, Adapter/Level
4	Pressure Switch
5	Capacitor
6	Pressure Switch, High
7	Filter, Coarse
8	Strainer, Fine
9	Cap
10	Gasket
11	Ring, Thread
12	Strainer, Micro-Fine
13	Motor
14	Washer
15	Spray Pump
17	Hose (Includes (2) Illus. No.54)
18	O-Ring
19	Nut, Adjusting
20	Thermostat, Hi-Limit
21	Element, Heating
22	WP616099 Whirlpool Clamp
23	Thermostat, Red W/O Dot. 40 C
24	Thermostat, Red W/Dot 55C/135F
25	Thermostat, White W/O Dot 65C/155F
26	Holder, Thermostat
27	Outlet, Channel (Lower)
28	Fan Motor
29	Clamp (130-150)
30	Seal, Drain Tube
31	Pipe, Water
32	Drain Sump
33	Clamp (82mm)
34	Pipe, Suction
35	Clamp (69mm)
36	Chamber, Air Compression
38	Flap, Non-Return Valve
39	Clamp, Non-Return Valve
41	Pump, Drain
42	Screw
43	Block, Terminal
44	Switch, Pressure (Hi-Limit)
45	Valve, Inlet
46	Manifold
47	O-Ring
49	Bracket (Not Serviceable)
50	Bracket (Not Serviceable)
51	Bracket (Not Serviceable)
52	WP596669 Whirlpool Hose Clamp
53	Hose, Pump Inlet (Includes (2) Illus. No.54)
54	WP285655 Whirlpool Hose Clamp
55	Hose, Inlet (If Replacing Both Hoses, Order (1) and Cut to Lenghth)
56	Clamp
