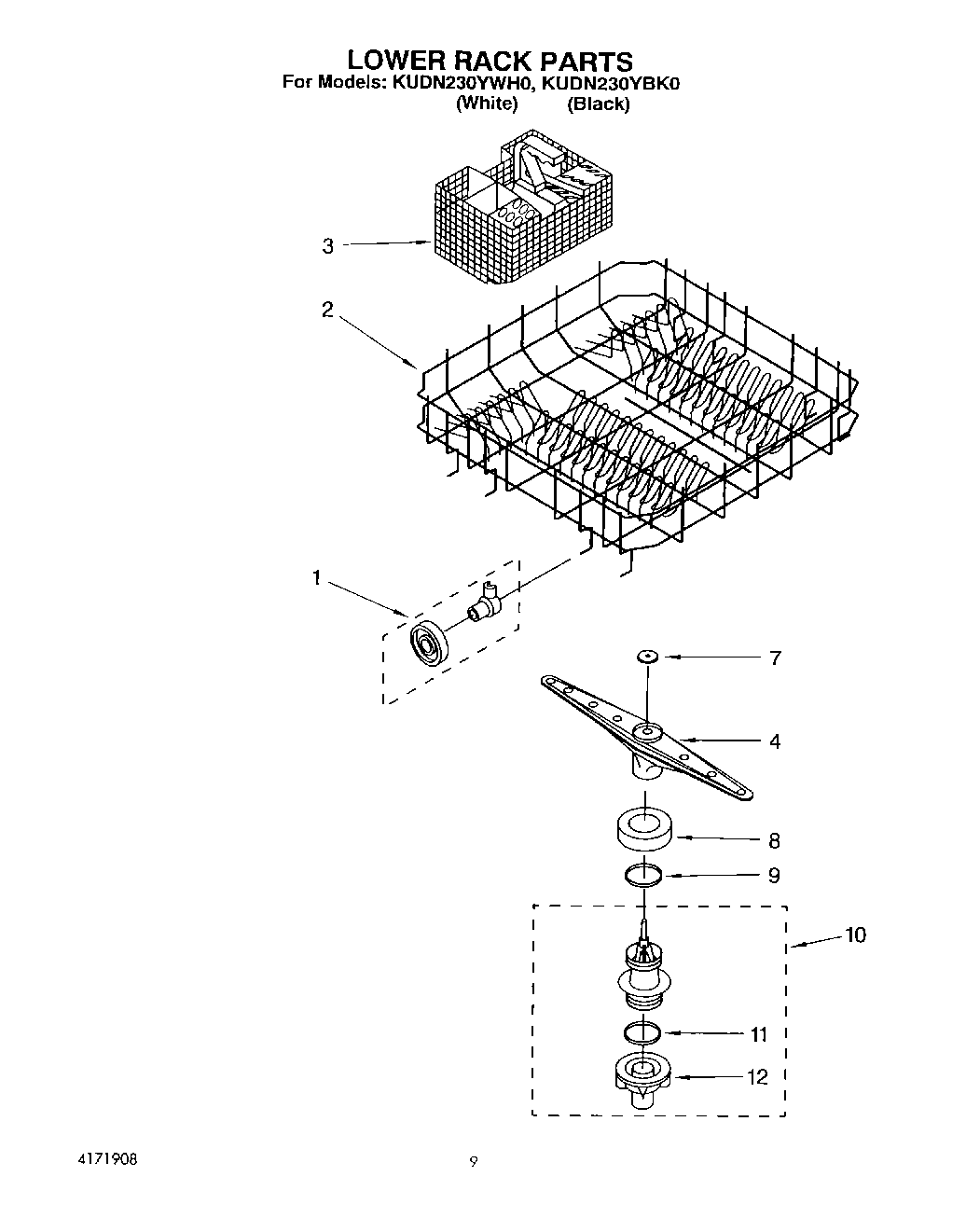

KUDN230YBK0 06 – LOWER RACK

KUDN230YBK0 06 – LOWER RACK

Written by

in

KUDN230YBK0 06 – LOWER RACK

Products

PositionProduct
1Roller & Axle Lower Dishrack
2Dishrack, Lower
3Basket, Silverware
4Lower Spray Arm
7Nut
8Nut, Lower Spray Arm
9O-Ring (Lower)
10Lower Rotor Hub Assembly
11Seal, Rotor Hub
12Rotor Hub, Lower
