KUDN230YBK0 07 – UPPER RACK – Aparts

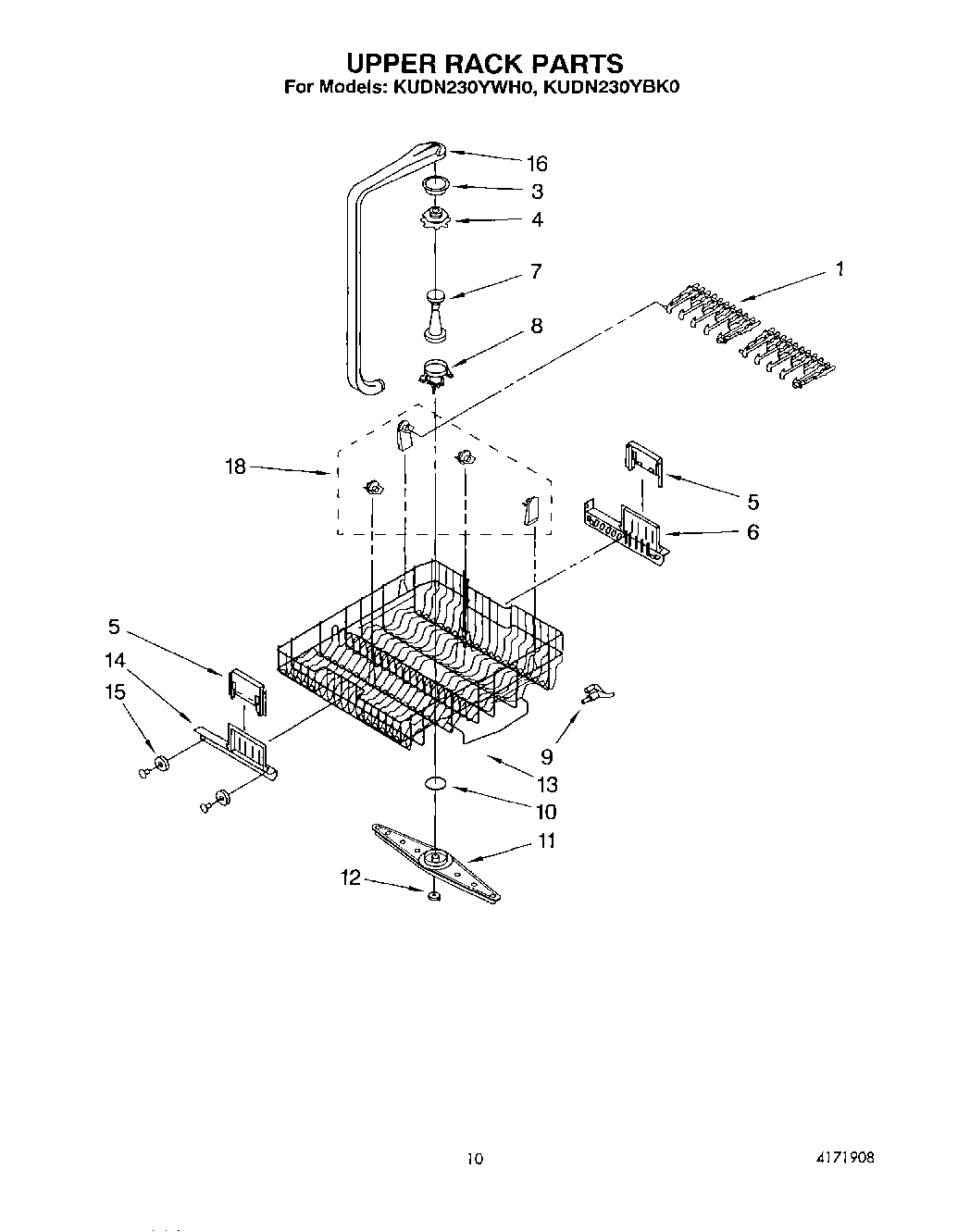

KUDN230YBK0 07 – UPPER RACK

Products

Position	Product
1	Flexrow
3	Seal, Top Nozzle
4	Assembly, Top Nozzle
5	Handle, Basket
6	Adjustment, Basket (Right)
7	Funnel
8	Bearing, Rotor
9	Holder, Distance
10	O-Ring (Upper)
11	Upper Spray Arm
12	Nut
13	Dishrack, Upper
14	Adjustment, Basket (Left)
15	Roller, Upper Dishrack
16	Pipe
18	Clip Assembly
