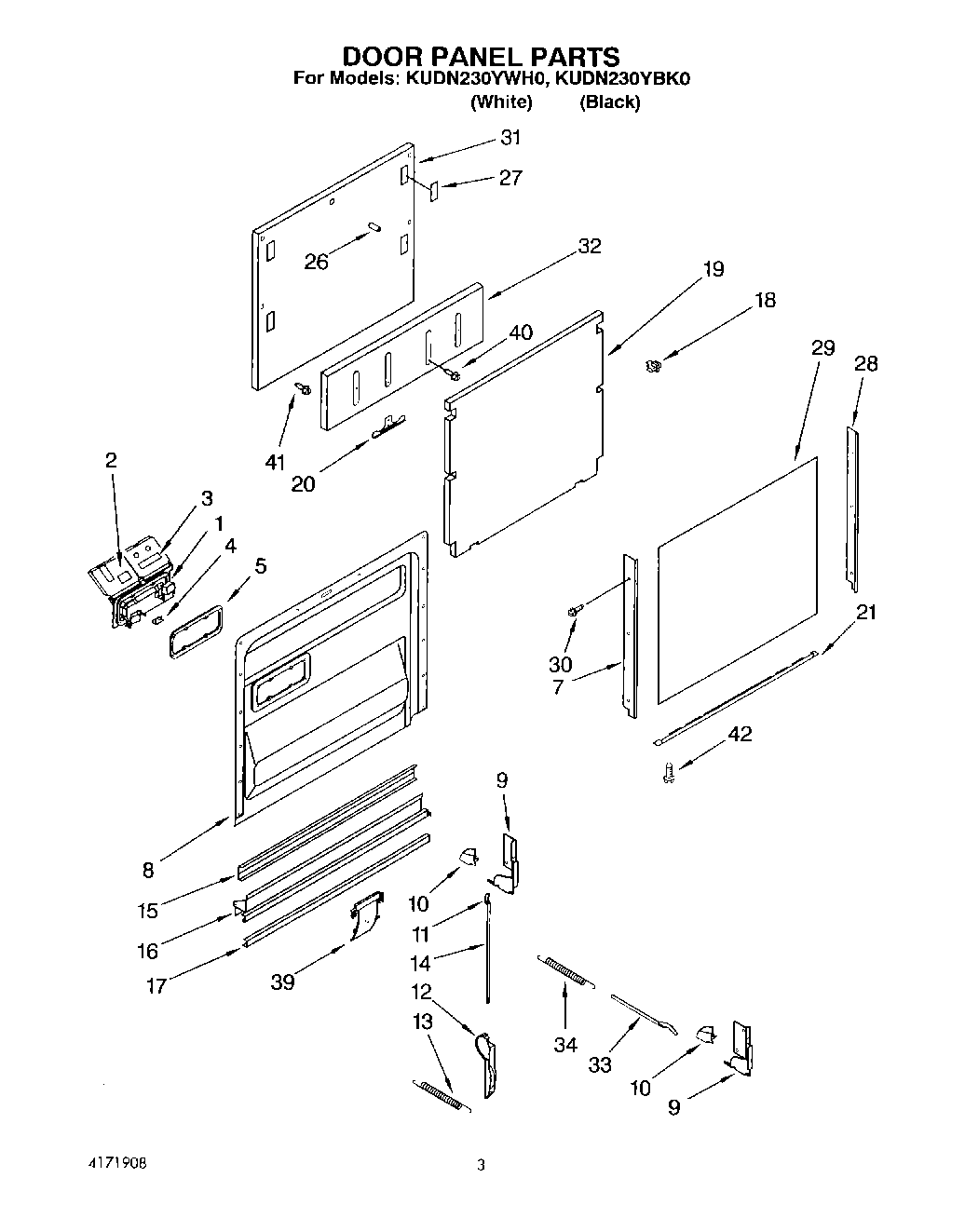

KUDN230YWH0 03 – DOOR PANEL, LITERATURE

Products

Position	Product
	Energy Guide
	Parts List
	Instructions, Installation
	Guide, Use & Care
	Tech Sheet
1	Rinse Agent Dispensing Valve
2	Seal, Dispenser
3	Seal, Dispenser
4	Reed, Contact Dispenser
5	Gasket, Dispenser
6	Screw
7	Side Trim, L.H. (White)
7	Side Trim, L.H. (Black)
8	Door, Inner
9	Hinge, Door
10	Cover, Hinge
11	Connection, Pull Tape
12	Brake Lever
13	xDoor Spring, L.H.
14	Pull Tape
15	Seal, Inside
16	Trim, Lower
17	Seal, Lower
18	Clip, Trim
19	Spacer, Door
20	Clamp
21	Bottom Trim (Black)
21	Bottom Trim (White)
26	Pin, Outer Door
27	Cap, Outer Door
28	Side Trim, R.H. (Black)
28	Side Trim, R.H. (White)
29	Insert, Front Panel (White/Black)
30	72017 Whirlpool Appliance Touch-Up Paint White
30	Screw, Bottom Trim (4) Black For White Also Order)
31	Door, Outer
32	Plate, Adjustable
33	Arm, Spring R.H.
34	xDoor Spring, R.H.
39	Cable Protection
40	Screw
41	Screw
42	Screw
