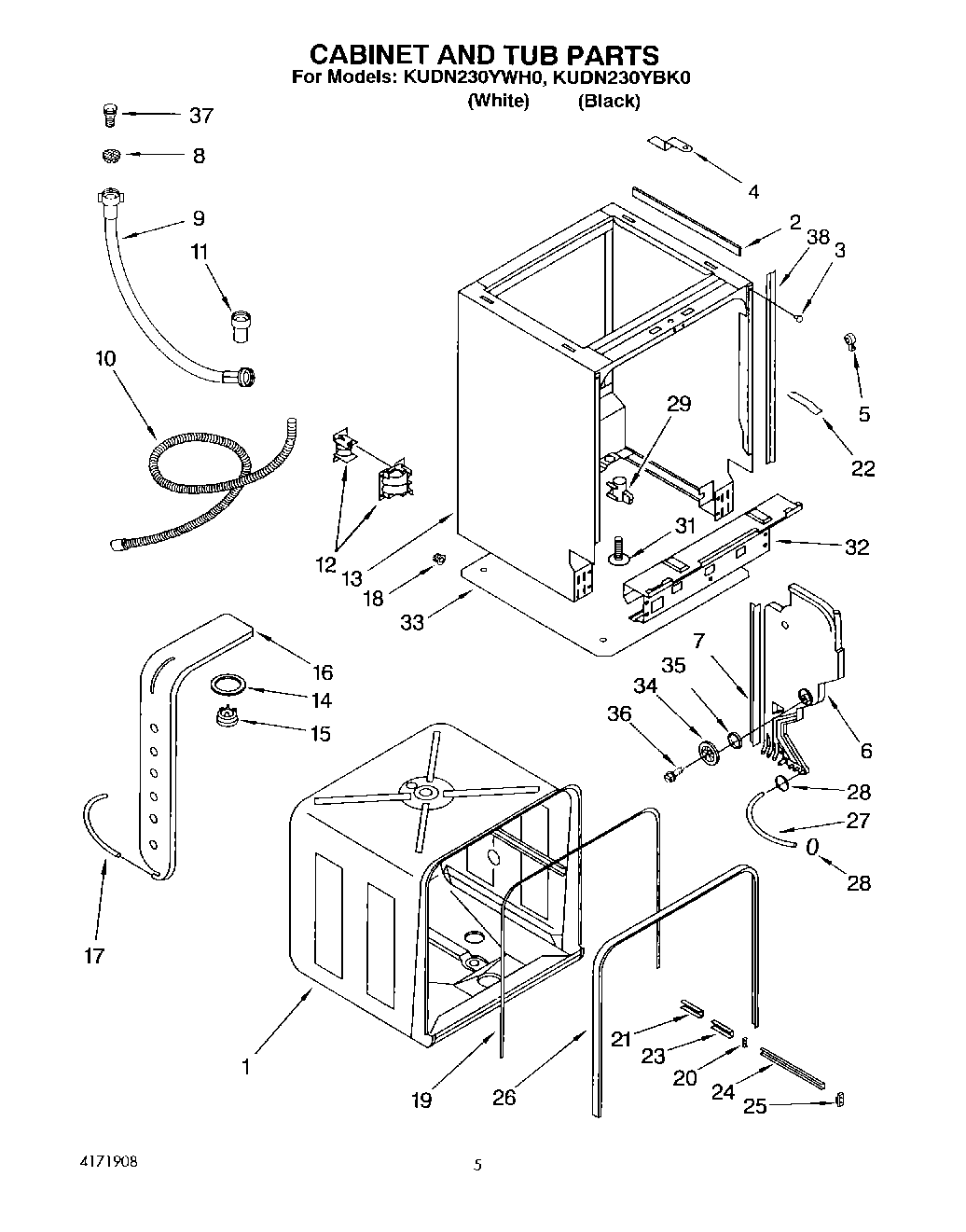

KUDN230YWH0 04 – CABINET AND TUB

KUDN230YWH0 04 – CABINET AND TUB

Written by

in

KUDN230YWH0 04 – CABINET AND TUB

Products

PositionProduct
1Tub, Insulated
2Spacer
3Stopper, Door
4Plate, Adjustable
5Clip, Tub
6Dispenser (Incl. Illus. No.28)
7Trim, Side Strip
8Strainer, Inlet
9Hose, Inlet
10Hose, Drain
11Sleeve, Connector
12Cradle, Hose
13Cabinet (Not A Serviceable Part)
14Seal, Air Duct
15Deflector, Air
16Duct, Air
17Hose, Duct
18Cable, Relief
19Strap
20Rail Cap, Rear
21Bearing
22Hook, Latch
23Bearing, Track
24Rail, Inner
25Rail Cap, Front
26Seal, Door
27Hose, Inlet (If Replacing Both Hoses, Order (1) and Cut to Lenghth)
28WP596669 Whirlpool Hose Clamp
29Reinforcement, Foot
31Foot & Disc Assy.
32Plate
33Tray, Base
34Cover
35Gasket
36Screw
37Adapter, Hose
38Filler Strip (White)
38Filler Strip (Black)
