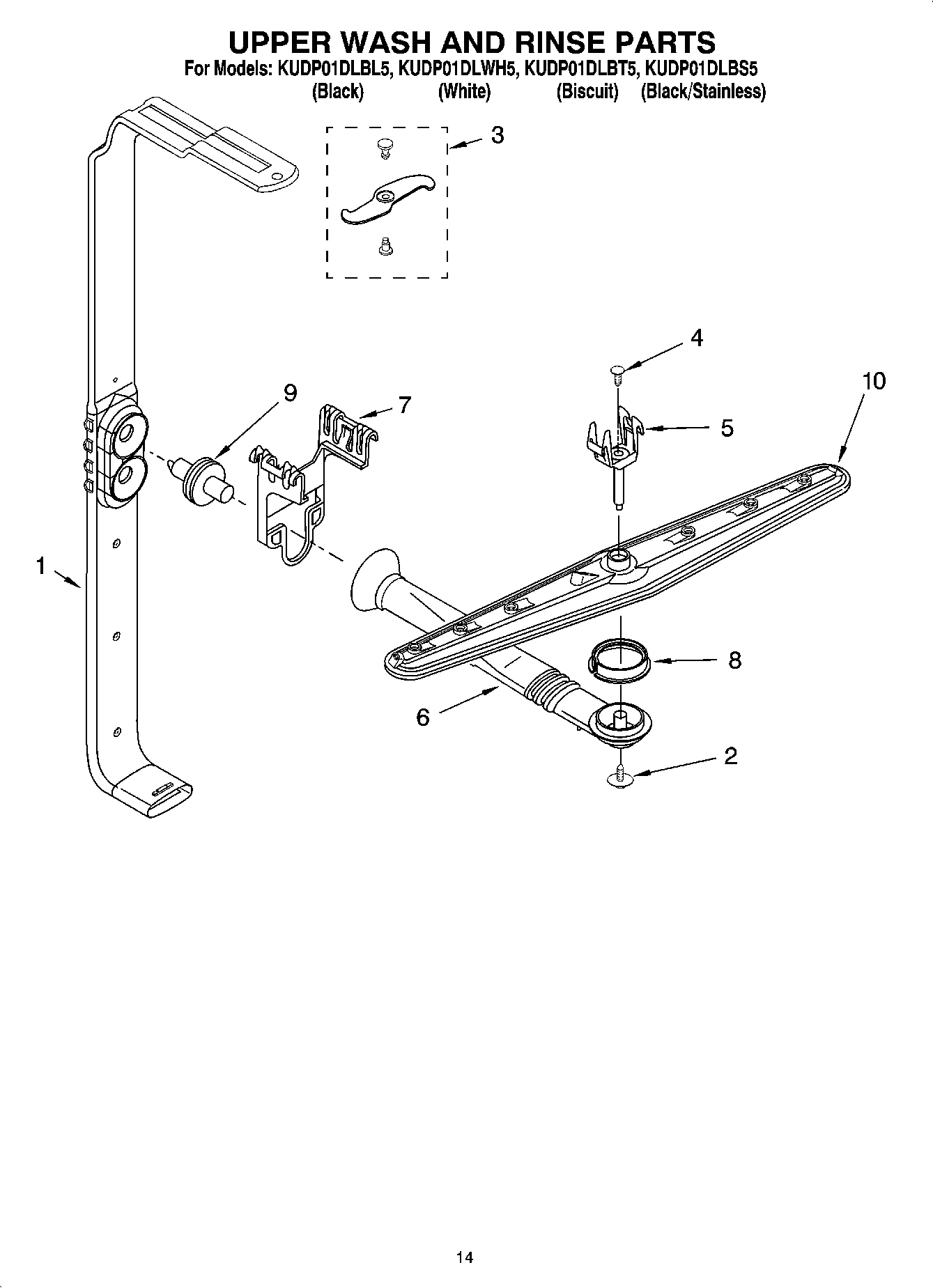

KUDP01DLBL5 11 – UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)

KUDP01DLBL5 11 – UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KUDP01DLBL5 11 – UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI114677A
Side Panel Kits (Biscuit)
Side Panel Kits (Stainless Steel)
ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 oz.) (Majestic Yellow)
ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 oz.) (Empire Red)
ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 oz.) (Hunter Green)
WPL 8171573
PAINT, TOUCH-UP (1/2oz.) (Cobalt Blue)
PAINT, TOUCH-UP (1/2oz.) (Empire Red)
PAINT, TOUCH-UP (1/2oz.) (Majestic Yellow)
WPL 8171555
WPL 8171556
WPL 8171557
WPL 8171575
INSTALLATION KIT (INCLUDES 6` STAINLESS STEEL BRAIDED HOSE, POWER CORD & CONNECTORS)
WPL ARI114675A
WPL ARI114676A
Side Panel Kits (Black)
Side Panel Kits (White)
8171652 Whirlpool Touch-Up
8171651 Whirlpool Touch Up
8171571 Whirlpool Touch-Up Paint Cobalt Blue
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Paint, Touch-Up 1/2 Oz. (Majestic Yellow)
285006 Whirlpool Spray
350930 Whirlpool White Spray Paint
72032 Whirlpool Touch Up Paint Black
W10202939 Whirlpool Touch Up
8171477 Whirlpool Dishwasher Mounting Bracket
4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
1Feed Tube Assembly (Also Includes Item 3)
2WPW10349488 Whirlpool Screw
3Sprayarm, 3rd Level
4WP3400920 Whirlpool Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6Manifold
7WP8268349 Whirlpool Dishwasher Spray Arm Tube Hanger
8WP8268433 Whirlpool Seal Assembly
9Nozzle, Feed
10WP8535086 Whirlpool Dishwasher Spray Arm
