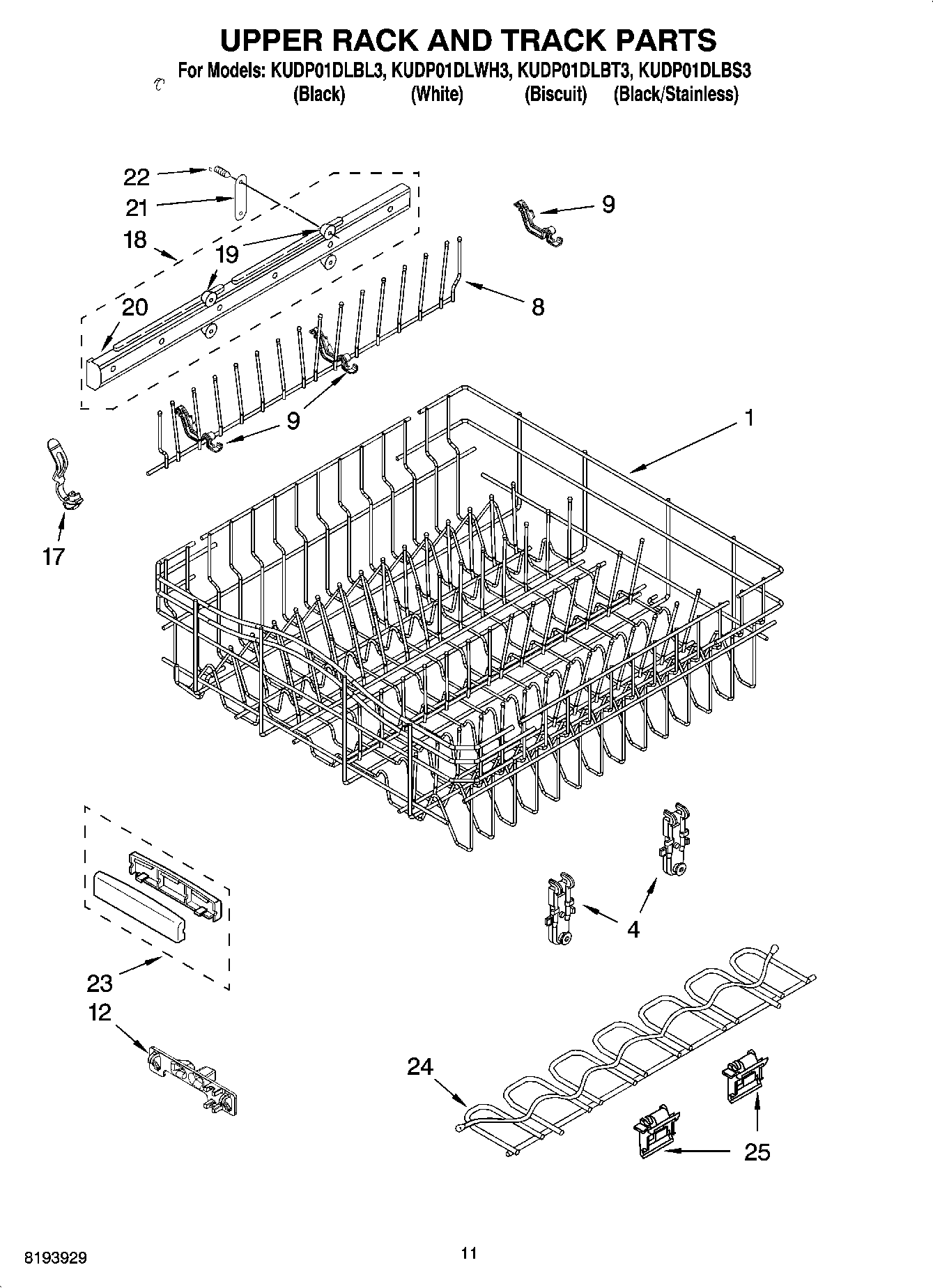

KUDP01DLWH3 09 – UPPER RACK AND TRACK PARTS

KUDP01DLWH3 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDP01DLWH3 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
4WP8268785 Whirlpool Dishwasher Wheel
8W10727426 Whirlpool Dishwasher Rack Tine
9PIVOT-TINE
12WP8539102 Whirlpool Dishwasher Positioner
17WP8539101 Whirlpool Dishwasher Clip
18W10404344 Whirlpool Dishwasher Track
19Mount, Track (Also Order Item 21)
20WP8270136 Whirlpool Dishwasher Stop
21WP9743002 Whirlpool Dishwasher Gasket
22WPW10348407 Whirlpool Dishwasher Screw
23Handle, Dishrack
24CUPSHELF
25Clip, Cupshelf
