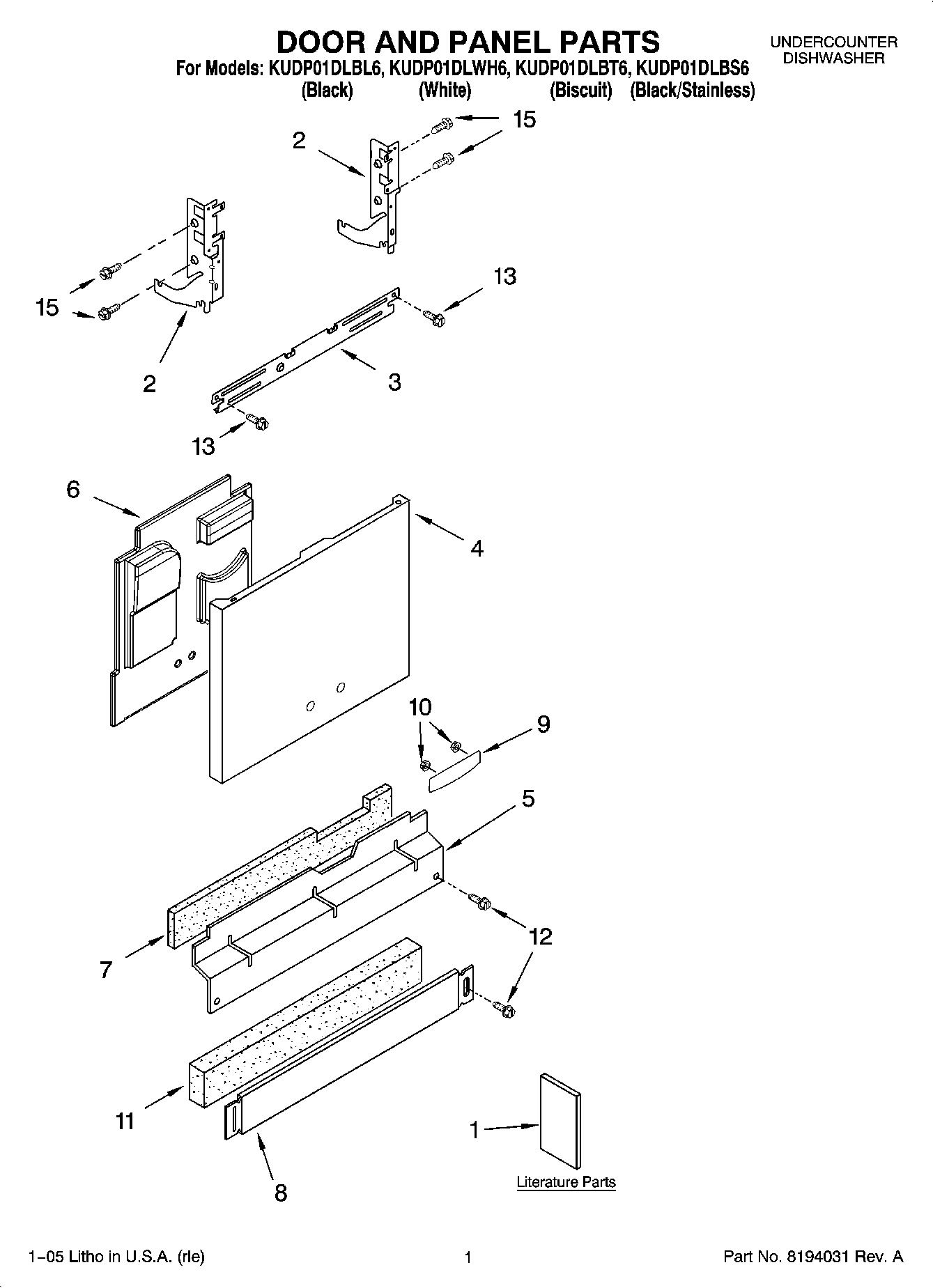

KUDP01DLWH6 01 – DOOR AND PANEL PARTS
Written by
in
KUDP01DLWH6 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Guide, Use & Care
1
Guide, Use & Care DVD Tech Sheet
1
English/French
1
Instructions, Installation
1
Energy Guide
2
W11612302 Whirlpool Dishwasher Door Hinge
2
W11612303 Whirlpool Door Hinge
3
Stiffener, Door
4
W10301577 Whirlpool Outer Door Panel
4
Panel Front (Includes Item 6) (Black)
4
Panel Front (Includes Item 6) (White)
4
Panel Front (Includes Item 6) (Biscuit)
5
W10909066 Whirlpool Dishwasher Panel
5
W10871198 Whirlpool Dishwasher Panel
6
Brace, Foam
8
WPW10586591 Whirlpool Dishwasher Toe Panel
8
Toe Panel (Includes Item 11) (Biscuit)
8
W10909064 Whirlpool Dishwasher Black Access Panel
9
Nameplate (Biscuit)
9
Nameplate (Black)
9
Nameplate (White)
10
WP2004333 Whirlpool Refrigerator Nut
11
SHIELD
12
WPW10503549 Whirlpool Dishwasher Retainer Clip
12
WP302868 Whirlpool Screw
12
WPW10503550 Whirlpool Dishwasher Retainer
13
WP489069 Whirlpool Compactor Screw
15
WP3400071 Whirlpool Screw
←
