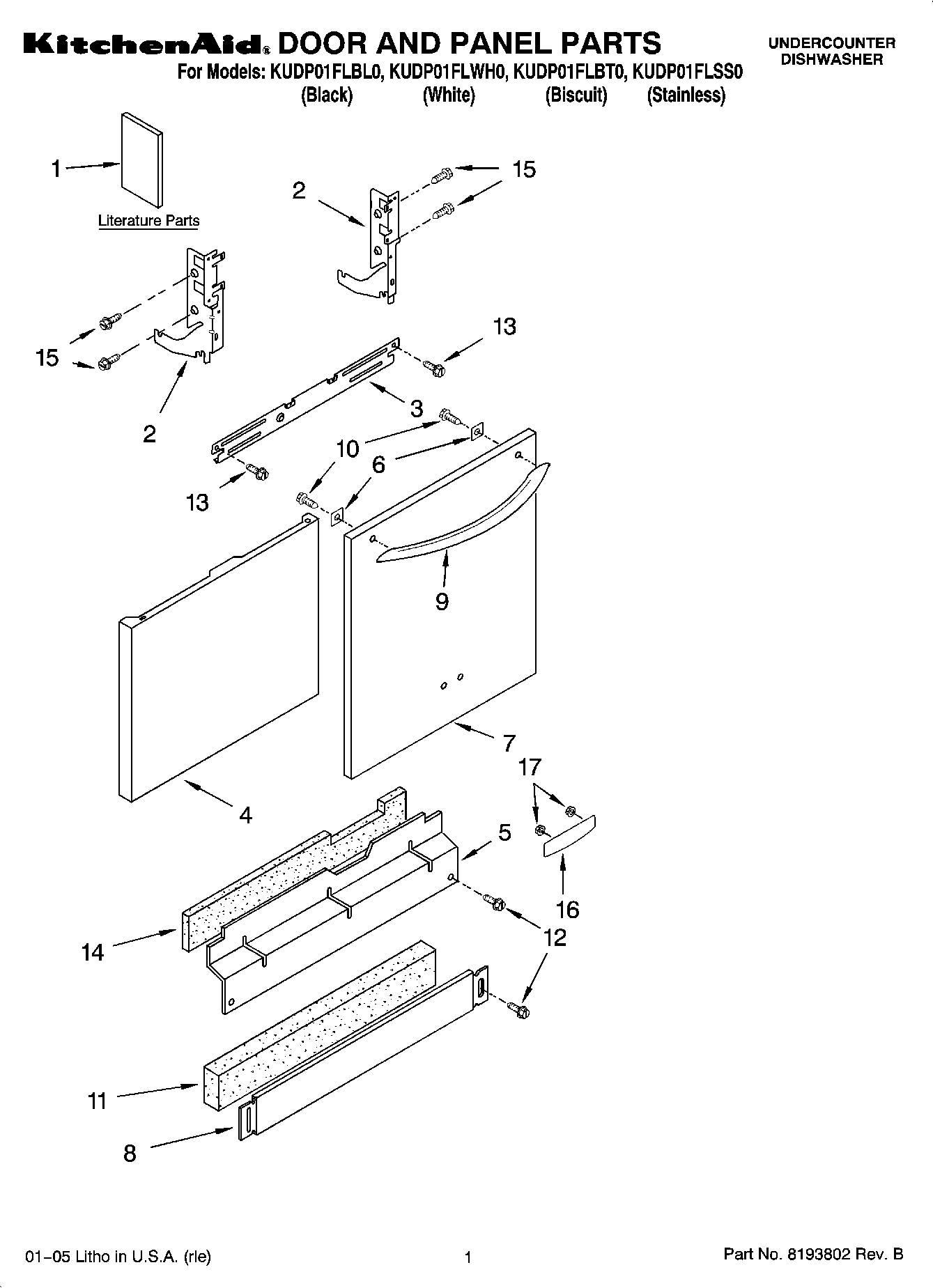

KUDP01FLBL0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (English/French)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Instructions, Installation)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	W11113792 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	Plate, Backing
7	Panel, Full Front W/Nameplate (Stainless)
7	Panel, Full Front W/Nameplate (Biscuit)
7	Panel, Full Front W/Nameplate (Black)
7	Panel, Full Front W/Nameplate (White)
8	Toe Panel (Biscuit)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
9	Handle (Black)
9	Handle (White)
9	Handle (Biscuit)
9	Handle (Stainless)
10	Screw
11	SHIELD
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WPW10503550 Whirlpool Dishwasher Retainer
13	WP489069 Whirlpool Compactor Screw
15	WP3400071 Whirlpool Screw
16	Nameplate (White)
16	Nameplate (Black)
16	Nameplate (Biscuit)
17	WP2004333 Whirlpool Refrigerator Nut
