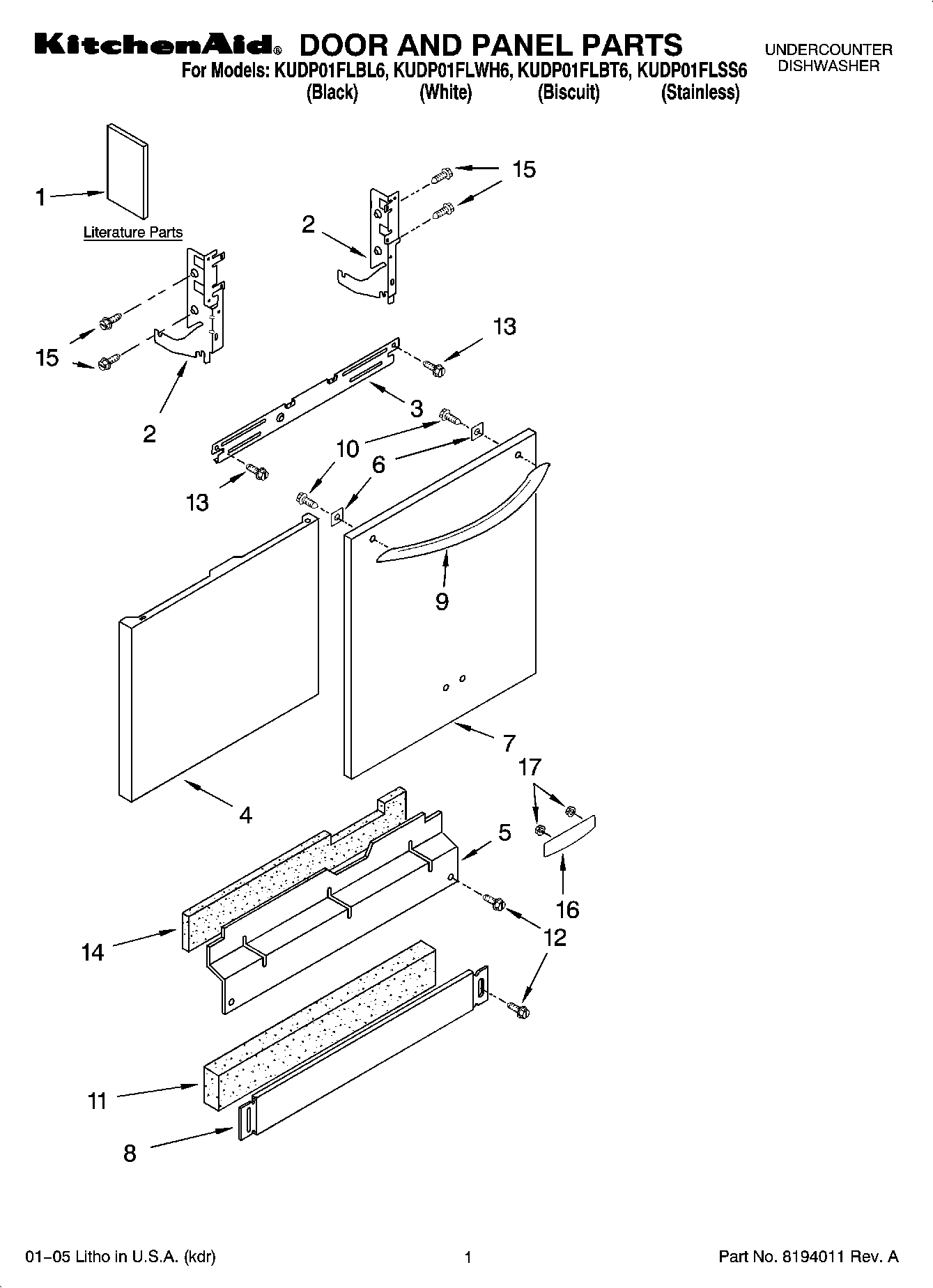

KUDP01FLBL6 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Guide, Use & Care DVD Tech Sheet
1English/French
1Instructions, Installation
1Energy Guide
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
6Washer
7Panel, Full Front W/Nameplate (Stainless)
7Panel, Full Front W/Nameplate (Black)
7Panel, Full Front W/Nameplate (White)
7Panel, Full Front W/Nameplate (Biscuit)
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
8Toe Panel (Includes Item 11) (Biscuit)
9Handle (Includes Items 6 & 10) (Stainless)
9Handle (Includes Items 6 & 10) (Black)
9Handle (Includes Items 6 & 10) (White)
9Handle (Includes Items 6 & 10) (Biscuit)
10Screw
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16Nameplate (Black)
16Nameplate (White)
16Nameplate (Biscuit)
17WP2004333 Whirlpool Refrigerator Nut
