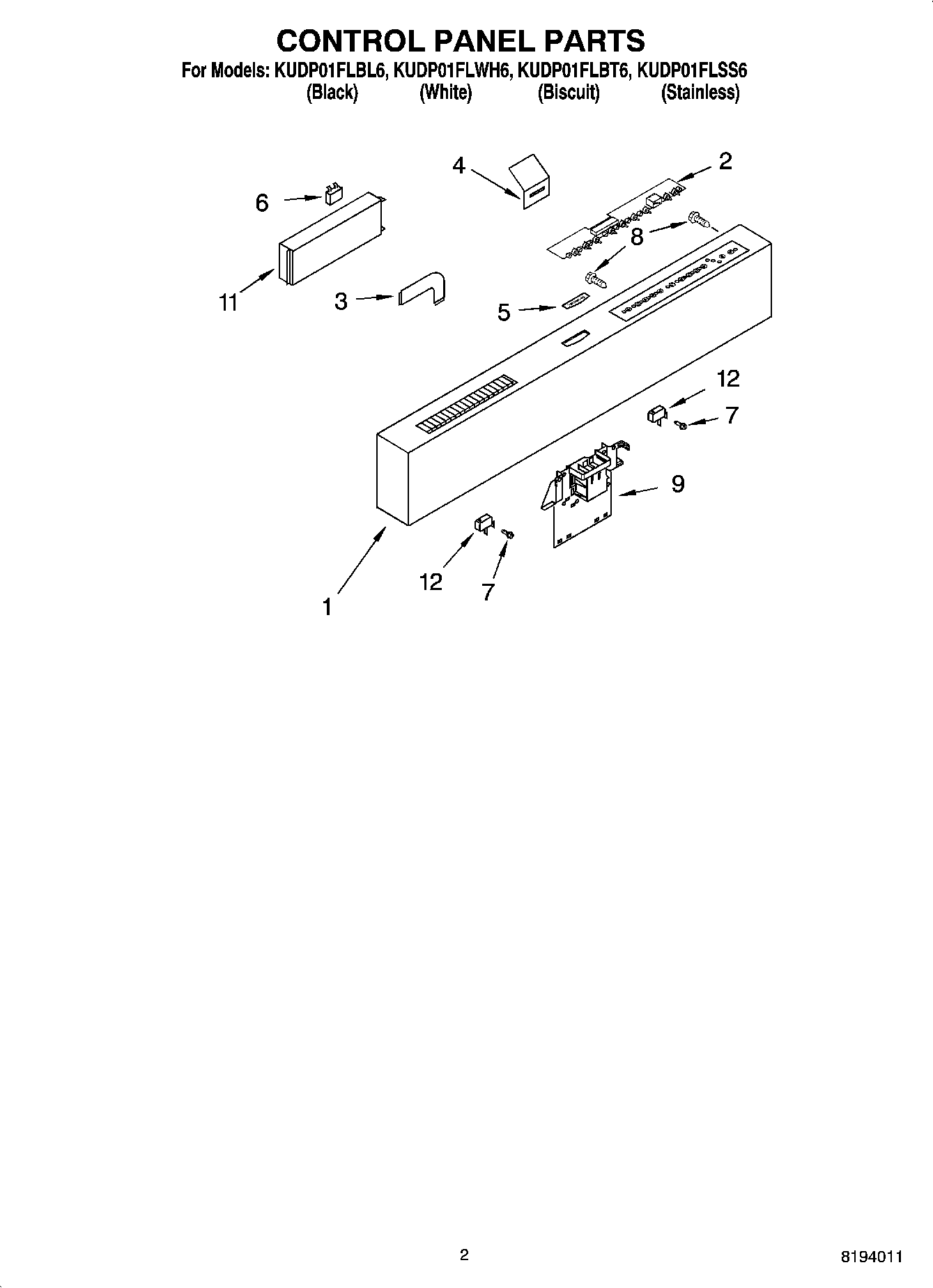

KUDP01FLSS6 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WP8531267 Whirlpool Control Panel
2	WP8531262 Whirlpool Electronic Control Board + Core
3	Cable, Ribbon
4	Shield
5	Medallion
6	8193762 Whirlpool Fuse Kit
7	WP3400412 Whirlpool Dishwasher Screw
8	WPW10348409 Whirlpool Screw
9	8193830 Whirlpool Dishwasher Door Latch Switch Kit
11	Control, Electronic
12	WP8269209 Whirlpool Door Switch
