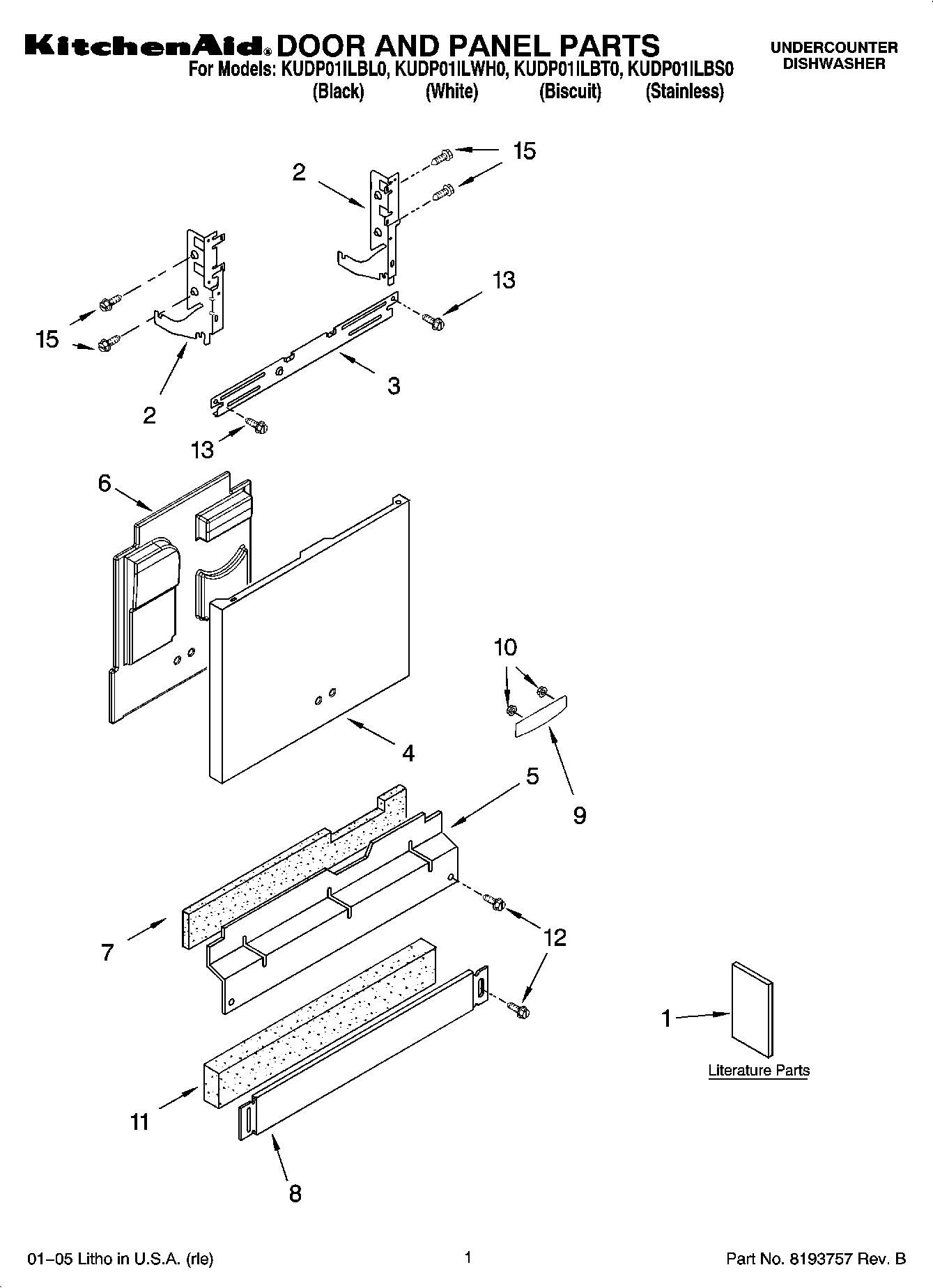

KUDP01ILBL0 01 – DOOR AND PANEL PARTSadmin2025-04-26T12:58:48+00:00KUDP01ILBL0 01 – DOOR AND PANEL PARTS ProductsPositionProduct1Literature Parts (Guide, Use & Care Tech Sheet)1Literature Parts (English/French)1Literature Parts (Guide, Energy)1Literature Parts (Instructions, Installation)2W11612302 Whirlpool Dishwasher Door Hinge2W11612303 Whirlpool Door Hinge3Stiffener, Door4Panel Front (Includes Item 6) (Black)4Panel Front (Includes Item 6) (Biscuit)4Panel Front (Includes Item 6) (White)4W10301577 Whirlpool Outer Door Panel5W10909066 Whirlpool Dishwasher Panel5W10909064 Whirlpool Dishwasher Black Access Panel5W10871198 Whirlpool Dishwasher Panel6Brace, Foam8WPW10586591 Whirlpool Dishwasher Toe Panel8Toe Panel (Includes Item 11) (Biscuit)9Nameplate (White)9Nameplate (Black)9Nameplate (Biscuit)10WP2004333 Whirlpool Refrigerator Nut11SHIELD12WP302868 Whirlpool Screw13WP489069 Whirlpool Compactor Screw15WP3400071 Whirlpool Screw
