KUDP02CRBL2 01 – DOOR AND PANEL PARTS
Written by
in

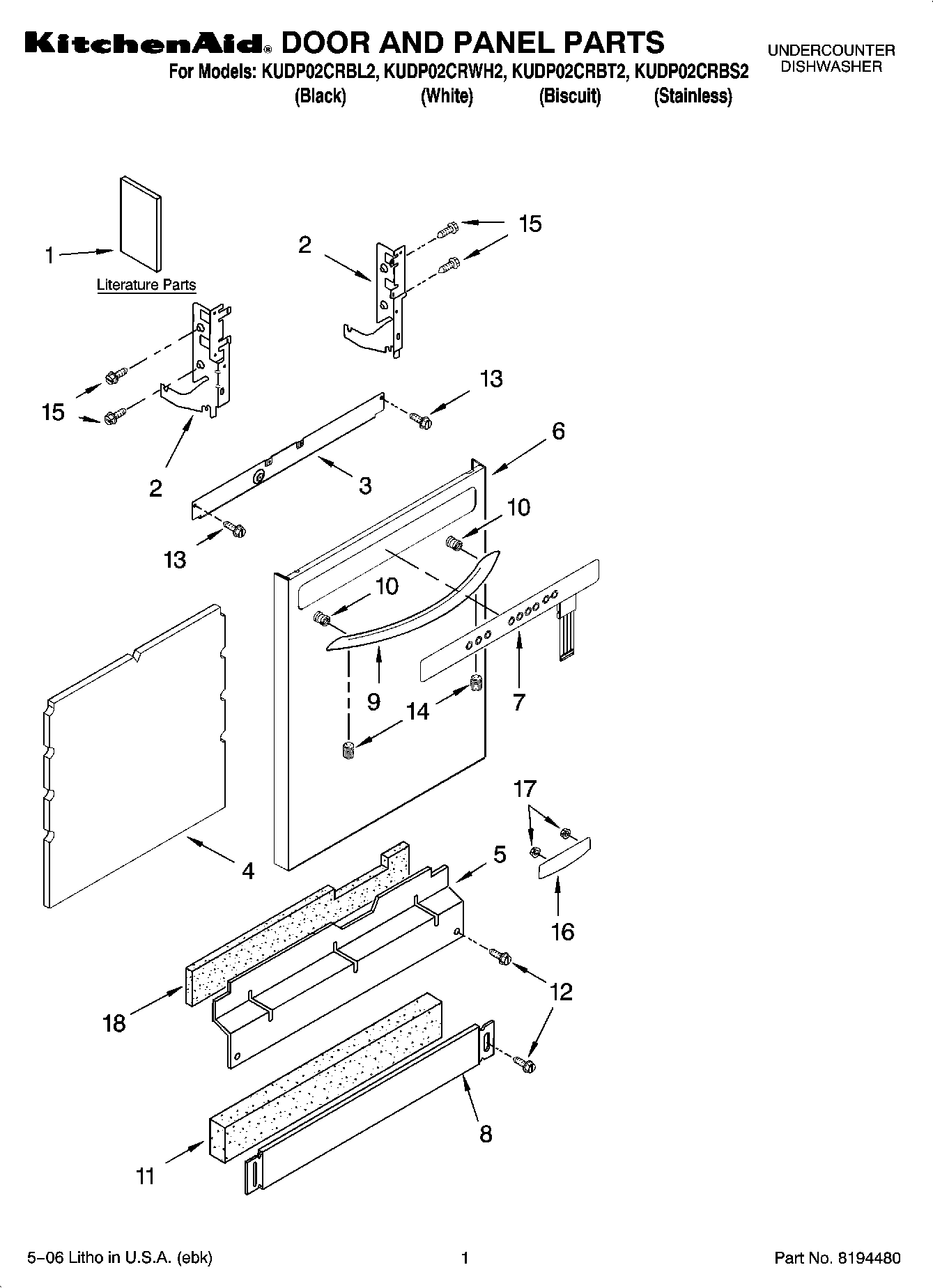

KUDP02CRBL2 01 – DOOR AND PANEL PARTS
Products
Position
Product
1
Energy Guide
1
Guide, Consumer Reference
1
DVD, Use & Care
1
Instructions, Installation
1
Tech Sheet
1
Guide, Use & Care
2
W11612303 Whirlpool Door Hinge
2
W11612302 Whirlpool Dishwasher Door Hinge
3
Stiffener, Door
4
WPW10073520 Whirlpool Dishwasher Insulation Pad
5
PANEL
5
W10909066 Whirlpool Dishwasher Panel
5
W10871198 Whirlpool Dishwasher Panel
6
Panel, Full Front (Includes Items 16 & 17) (Stainless)
6
Panel, Full Front (Includes Items 16 & 17) (Black)
6
Panel, Full Front (Includes Items 16 & 17) (White)
6
Panel, Full Front (Includes Items 16 & 17) (Biscuit)
7
WP8572205 Whirlpool Dishwasher Overlay
7
WP8572206 Whirlpool Dishwasher Overlay
7
Overlay (Biscuit)
8
WPW10586591 Whirlpool Dishwasher Toe Panel
8
Toe Panel (Includes Items 7 & 11) (Biscuit)
8
W10909064 Whirlpool Dishwasher Black Access Panel
9
Handle (Biscuit)
9
Handle (White)
9
Handle (Black)
9
W10083931A Whirlpool Dishwasher Stainless Steel Handle
10
WP8564951 Whirlpool Dishwasher Stud
11
SHIELD
12
WP302868 Whirlpool Screw
13
WP489069 Whirlpool Compactor Screw
14
WP8534008 Whirlpool Screw
15
WP3400071 Whirlpool Screw
16
Nameplate (Black)
16
Nameplate (Biscuit)
16
Nameplate (White)
17
WP2004333 Whirlpool Refrigerator Nut
←
