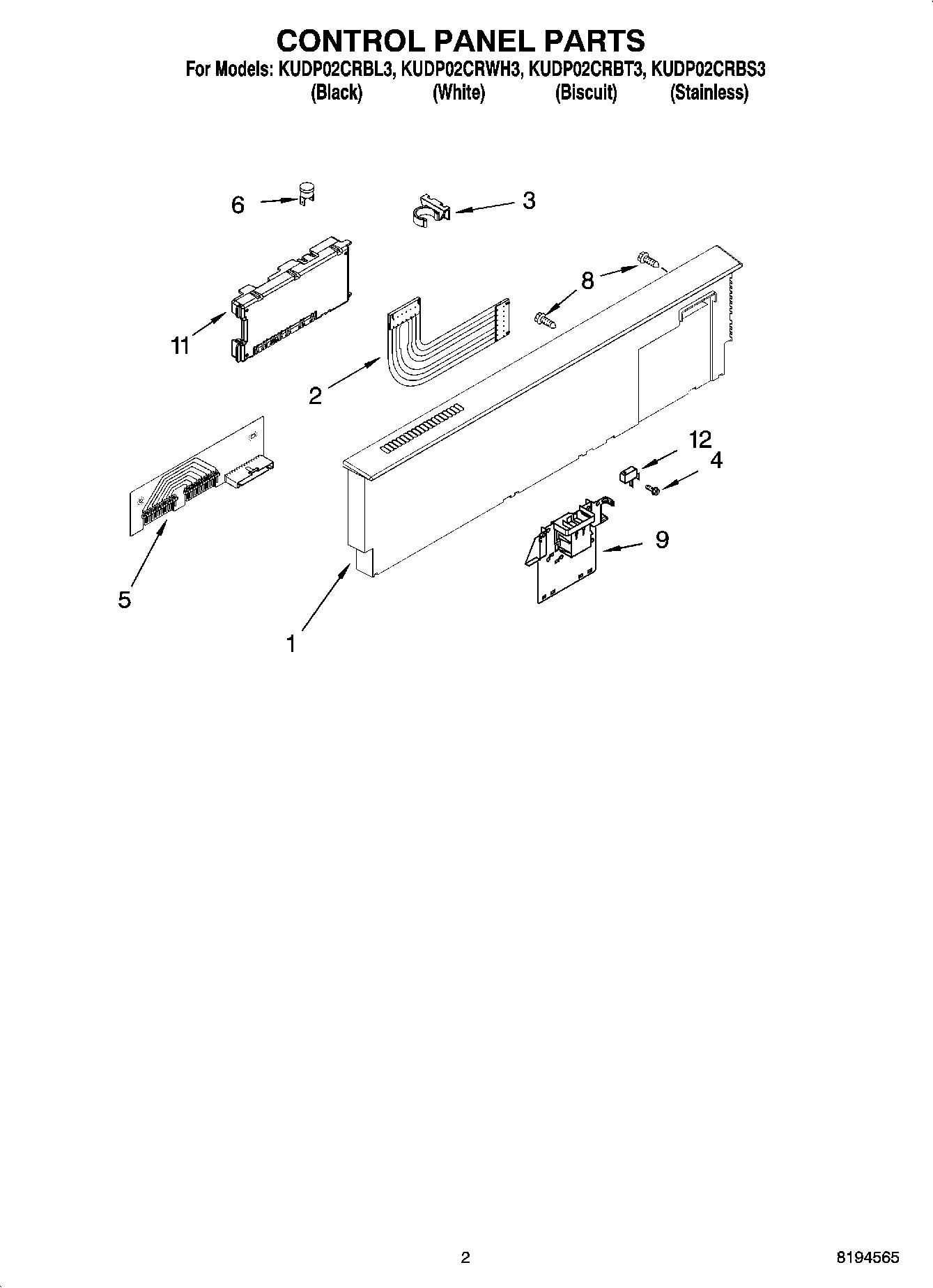

KUDP02CRBL3 02 – CONTROL PANEL PARTS
Written by
in
KUDP02CRBL3 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Console Assembly (Includes Insert) (Biscuit)
1
Console Assembly (Includes Insert) (White)
1
WP8572354 Whirlpool Dishwasher Console
2
CABLE-RIBBON
3
Clip, BI-Metal
4
WP3400412 Whirlpool Dishwasher Screw
5
WP8531873 Whirlpool Dishwasher Control Board
6
W10258275 Whirlpool Dishwasher Bimetal Fuse
8
WPW10348409 Whirlpool Screw
9
8193830 Whirlpool Dishwasher Door Latch Switch Kit
11
WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12
WP8269209 Whirlpool Door Switch
←
